Vertical Turbine Pumps
Parts List
Document Name: 2001299-VTP-IOM-EN Page 63 of 67
Revision 3 Copyright © 2014, Weir Floway, Inc. All Rights Reserved. Issue Date: December 12, 2014

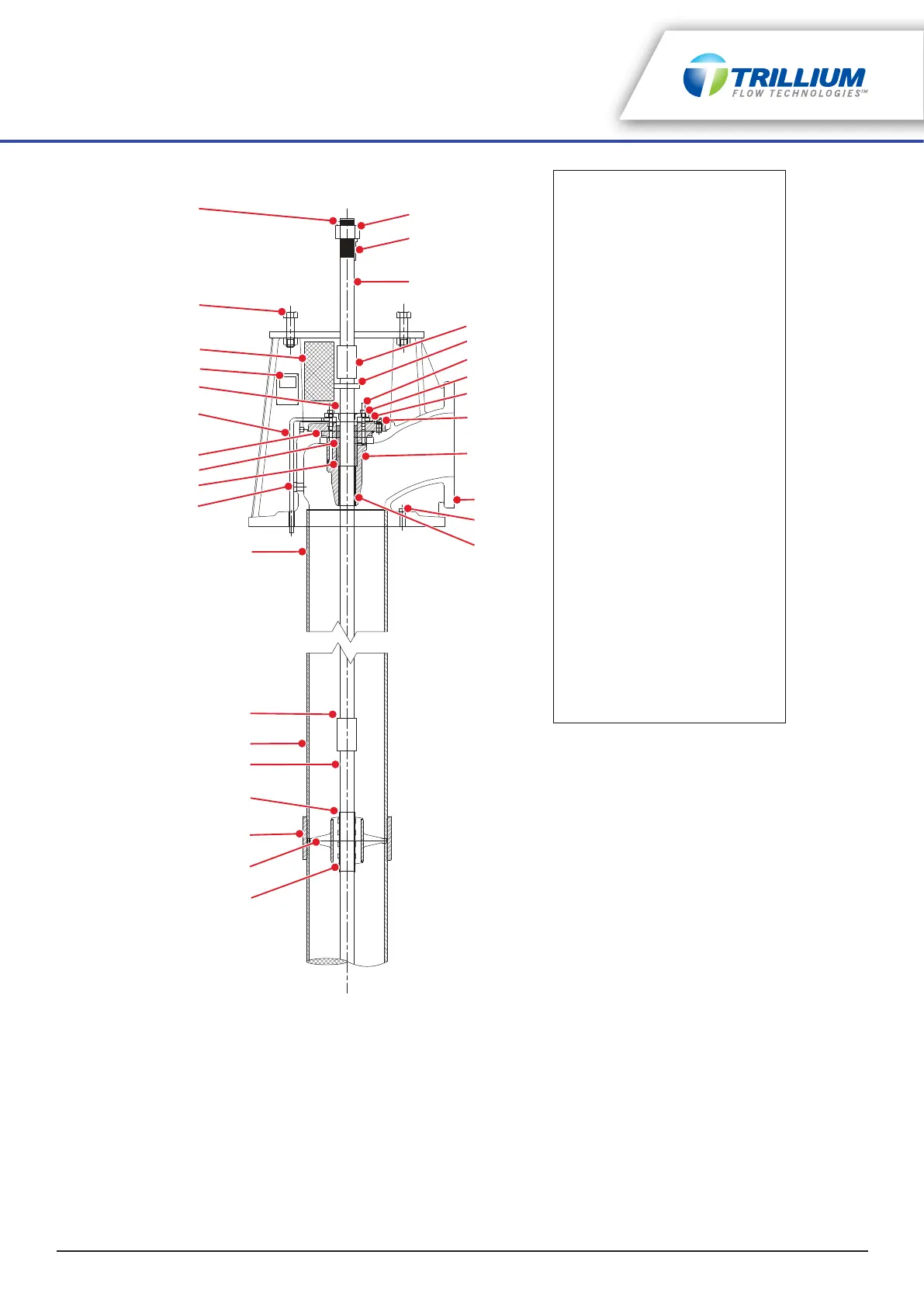

Figure 12-6: Type A - Open Lineshaft
(illustrated with column and hi-pressure packing box)
1
2
3
4
5
6
7
8
9
10
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
11
1. Headshaft Nut
2. Gib Key
3. Headshaft
4. Shaft Coupling
5. Slinger
6. Packing Gland Studs and Nuts
7. Packing Gland
8. Grease Zerk (with Cover)
9. Stuffing Box Cap Screws
10. Stuffing Box
11. Discharge Head
12. Snap Button Hole Plug
13. Stuffing Box Bearing
14. Lineshaft Sleeve
15. Bearing Retainer
16. Column Pipe Coupling
17. Lineshaft Bearing
18. Intermediate Lineshaft
19. Intermediate Column Pipe
20. Shaft Coupling
21. Top Column Pipe
22. Pipe Plug
23. Packing Rings
24. Lantern Ring
25. Stuffing Box O-rings
26. By-pass with Fittings
27. Top Lineshaft
28. Nameplate with Driver Screws
29. Coupling Guard Assembly
30. Driver Bolts and Nuts
31. Headshaft Nut Lockscrew
