Vertical Turbine Pumps
Parts List
Document Name: 2001299-VTP-IOM-EN Page 59 of 67
Revision 3 Copyright © 2014, Weir Floway, Inc. All Rights Reserved. Issue Date: December 12, 2014

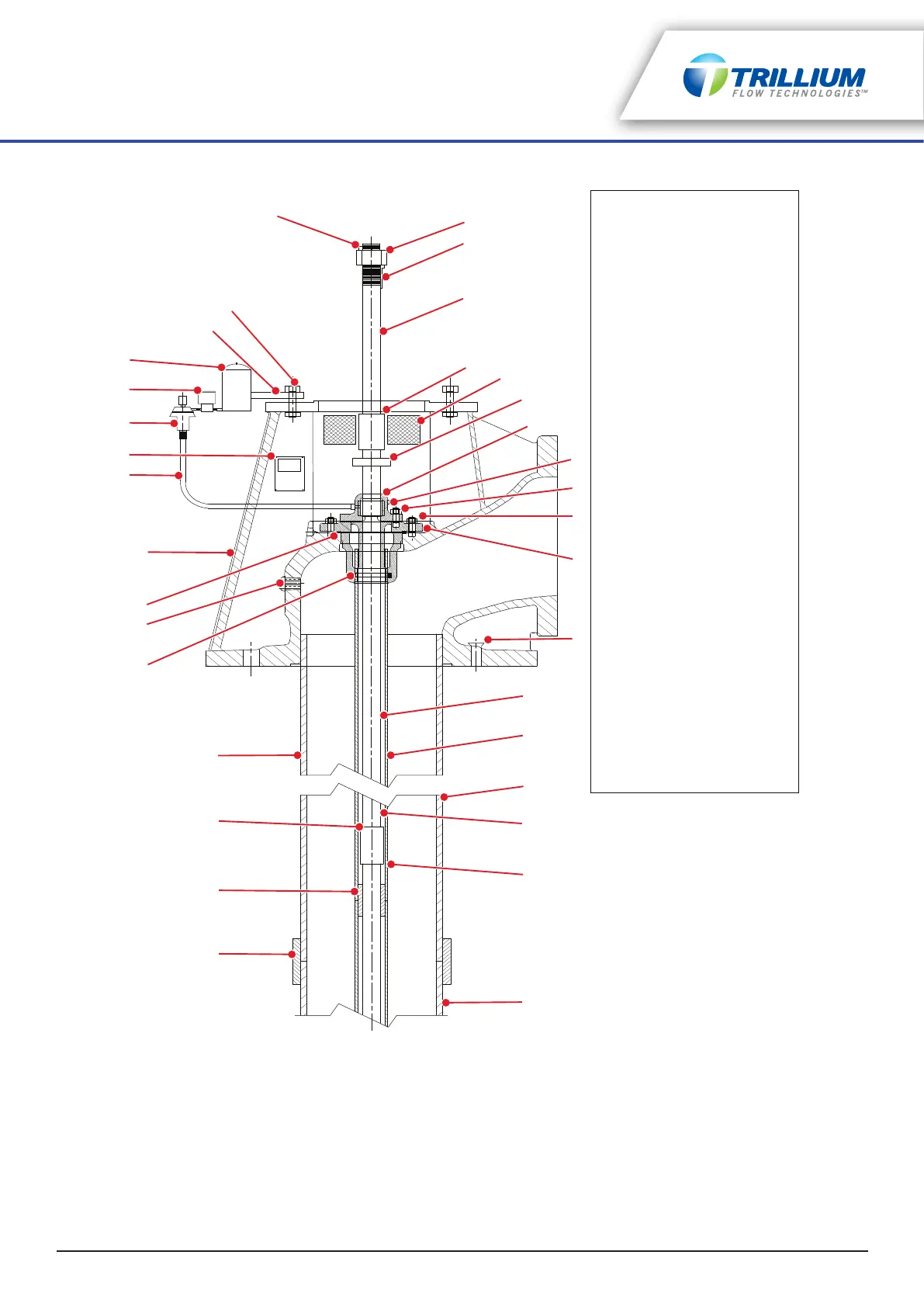

Figure 12-2: Type A - Enclosed Lineshaft
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
25
24
26
28
29
27
30
31
32
33
34
1. Headshaft Nut
2. Gib Key
3. Head Shaft
4. Shaft Coupling
5. Coupling Guard Assembly
6. Slinger
7. Tension Nut
8. Tension Nut Plug
9. Tension Nut Lockscrew
10. Stuffing Box Cap Screws
11. Tension Plate
12. Snap Button Hole Plug
13. Top Lineshaft
14. Top Adjusting Tube
15. Intermediate Column Pipe
16. Intermediate Line Shaft
17. 5 feet Enclosing Tube
18. Bottom Column Pipe
19. Column Pipe Coupling
20. Line Shaft Bearing
21. Shaft Coupling
22. Top Column Pipe
23. Tube Nipple O-ring
24. Pipe Plug
25. Stuffing Box O-ring
26. Discharge Head
27. Oil Line with Fittings
28. Nameplate with Drive Screws
29. Sight Feed Valve (Auto)
30. Solenoid Valve (O.L)
31. Oil Pot with Cover
32. Oil Pot Mounting Bracket
33. Driver Bolts and Nuts
34. Headshaft Nut Lockscrew
