Vertical Turbine Pumps
Parts List
Document Name: 2001299-VTP-IOM-EN Page 62 of 67
Revision 3 Copyright © 2014, Weir Floway, Inc. All Rights Reserved. Issue Date: December 12, 2014

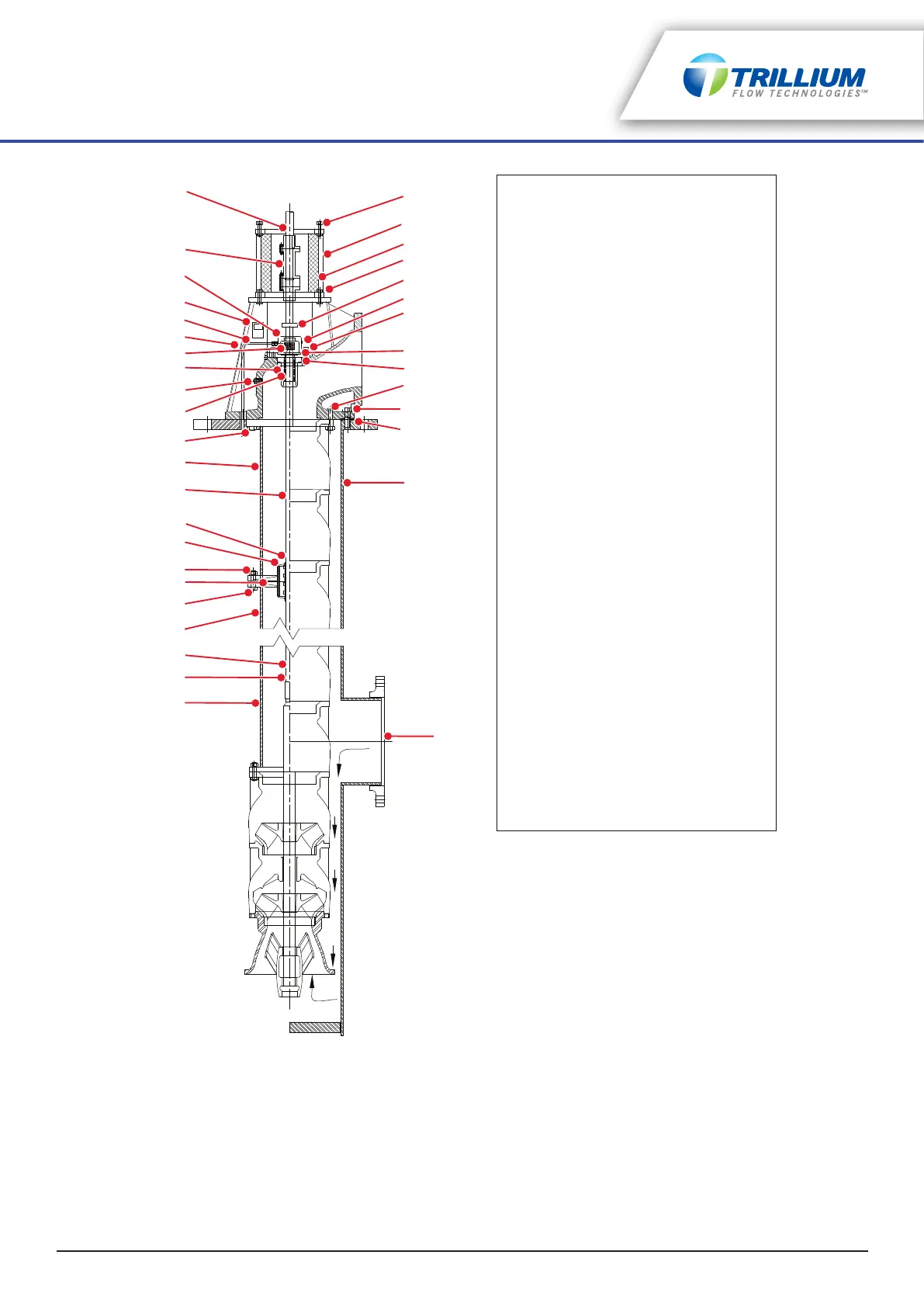

Figure 12-5: Type AF - Open Lineshaft
(illustrated with motor stand, spacer coupling, FF-2 seal and seal housing)
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
1. Driver Bolts and Nuts
2. Motor Stand
3. Coupling Guard Assembly
4. Motor Stand Bolts and Nuts
5. Slinger
6. Seal Housing Plug
7. Seal Cover Cap Screws
8. Seal Cover Gasket or O-ring
9. Seal Housing O-ring
10. Snap Bottom Hole Plug
11. Mounting Flange Bolts or Studs
12. Mounting Flange Gasket
13. Suction Barrel
14. Suction Barrel Inlet (AF only)
15. Bottom Column Pipe
16. Shaft Coupling
17. Intermediate Lineshaft
18. Intermediate Column Pipe
19. Column Flange Bolts
20. Bearing Retainer
21. Column Flange Nuts
22. Lineshaft Bearing
23. Lineshaft Sleeve
24. Top Lineshaft
25. Top Column Pipe
26. Top Column Flange Cap Screws
27. Throttle Bushing Seal
28. Pipe Plug
29. Seal Housing
30. Mechanical Seal Assembly
31. Discharge Head
32. By-pass with Fittings
33. Nameplate with Driver Screws
34. Seal Housing Cover
35. Adjustable Flanged Spacer Coupling
Assembly
36. Driver Shaft
24. Bottom Column Pipe
