Vertical Turbine Pumps
Parts List
Document Name: 2001299-VTP-IOM-EN Page 67 of 67
Revision 3 Copyright © 2014, Weir Floway, Inc. All Rights Reserved. Issue Date: December 12, 2014

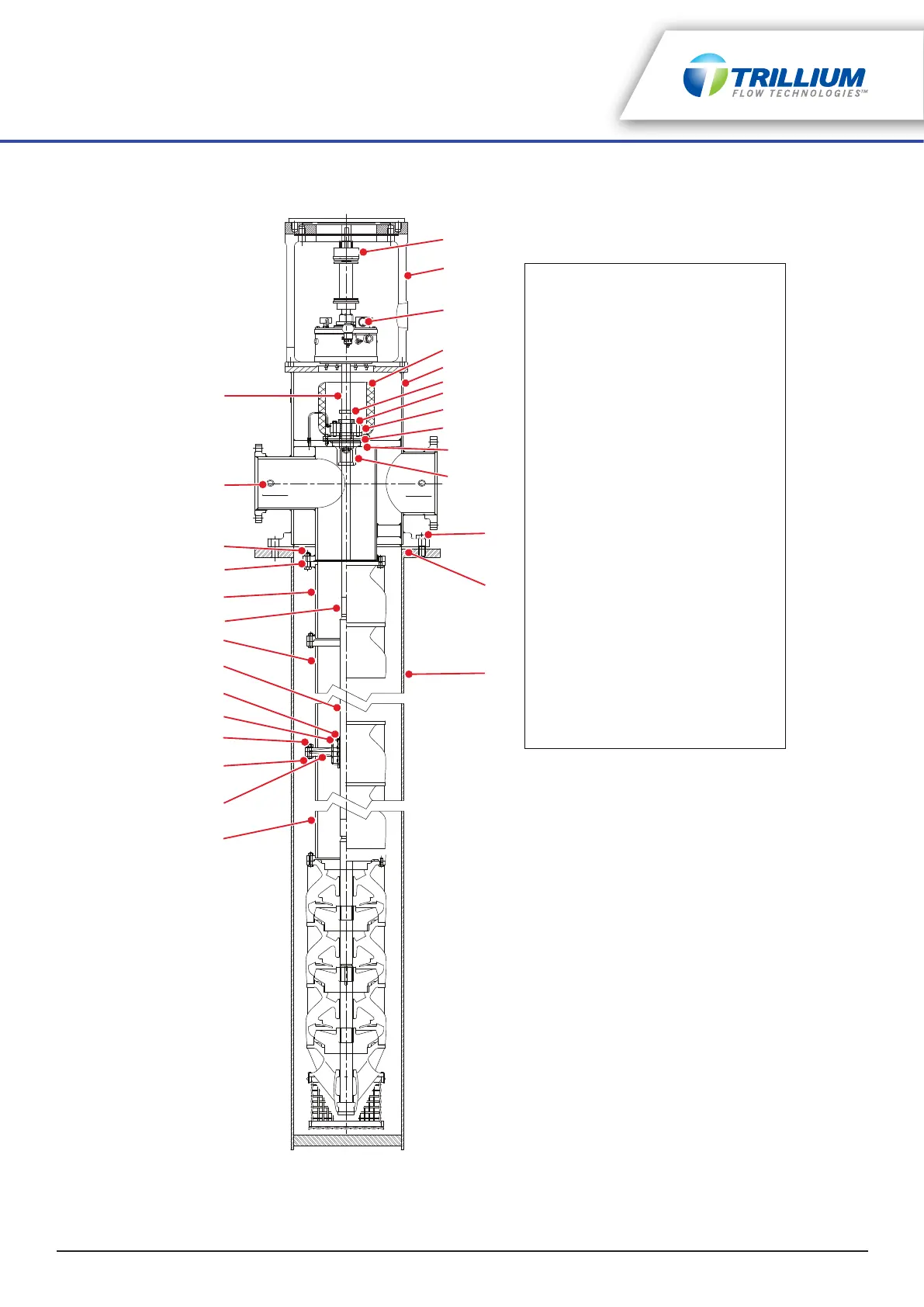

Figure 12-10: Type VC
(illustrated with TSO thrust bearing, motor stand, and flexible driver coupling)
4
1
3
5
2
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
28
26
27
1. Motor Shaft Coupling
2. Thrust Stand
3. Thrust Bearing Assembly
4. Coupling Guard Assembly
5. Discharge Head
6. Slinger
7. Seal Cover Cap Screws
8. Seal Housing Cover
9. Seal Cover Gasket or O-ring
10. Seal Housing O-ring
11. Seal Housing
12. Mounting Flange Bolts or Studs
13. Mounting Flange Gasket
14. Suction Barrel
15. Bottom Column Pipe
16. Bearing Retainer
17. Column Flange Bolts
18. Column Flange Nuts
19. Lineshaft Bearing
20. Lineshaft Sleeve
21. Intermediate Lineshaft
22. Intermediate Column Pipe
23. Shaft Coupling
24. Top Column Pipe
25. Top Column Flange Gasket
26. Top Column Bolts and Nuts
27. Pipe Plug
28. Top Lineshaft
