Vertical Turbine Pumps
Parts List
Document Name: 2001299-VTP-IOM-EN Page 66 of 67
Revision 3 Copyright © 2014, Weir Floway, Inc. All Rights Reserved. Issue Date: December 12, 2014

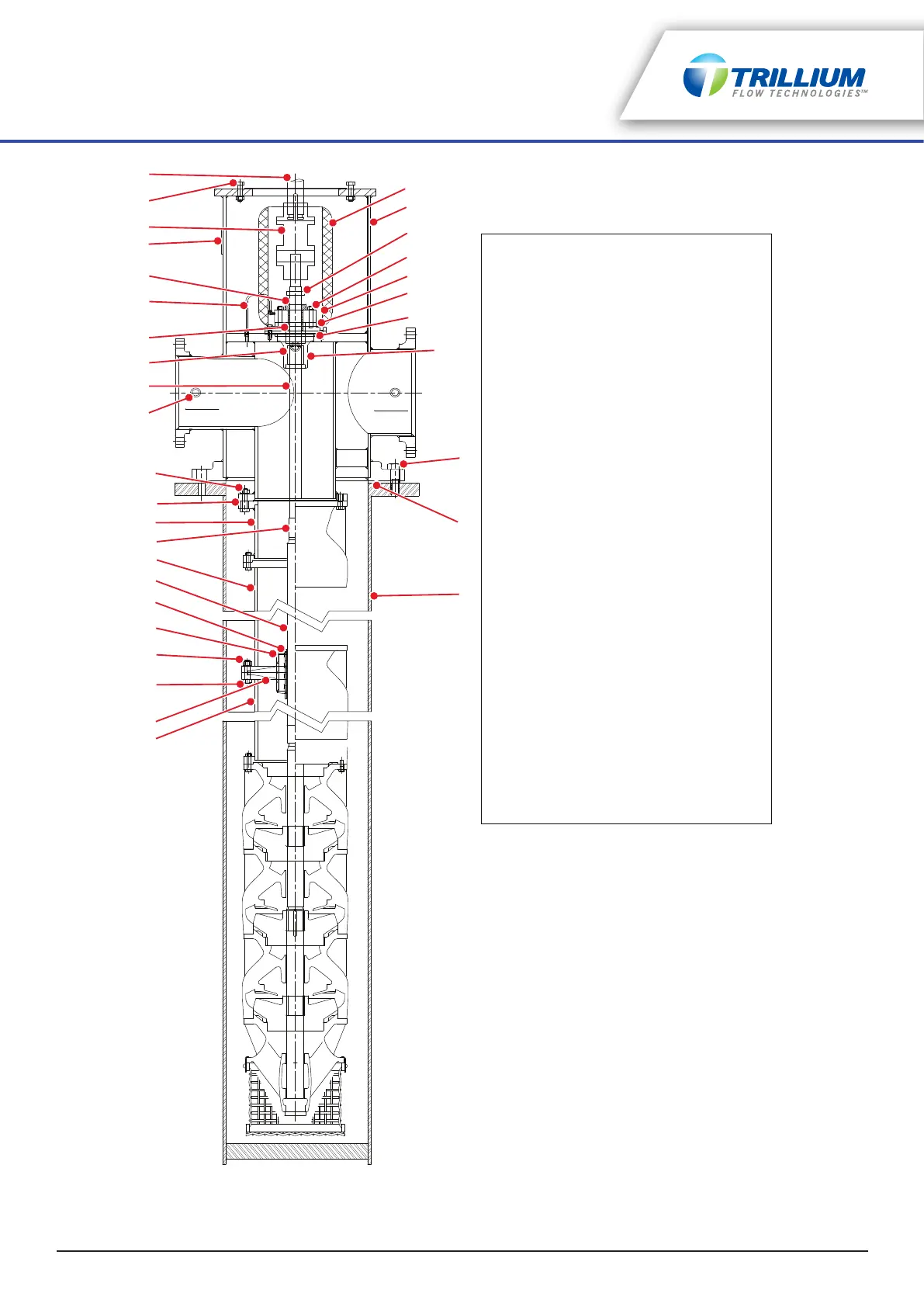

Figure 12-9: Type VC
(illustrated with adjustable flanged coupling with spacer and mechanical seal)
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
1. Coupling Guard Assembly
2. Discharge Head
3. Slinger
4. Seal Cover Cap Screws
5. Seal Housing Cover
6. Seal Cover Gasket or O-ring
7. Seal Housing O-ring
8. Seal Housing
9. Mounting Flange Bolts or Studs
10. Mounting Flange Gasket
11. Suction Barrel
12. Bottom Column Pipe
13. Bearing Retainer
14. Column Flange Bolts
15. Column Flange Nuts
16. Lineshaft Bearing
17. Lineshaft Sleeve
18. Intermediate Lineshaft
19. Intermediate Column Pipe
20. Shaft Coupling
21. Top Column Pipe
22. Top Column Flange Gasket
23. Top Column Bolts and Nuts
24. Pipe Plug
25. Top Lineshaft
26. Seal Housing Bearing
27. Mechanical Seal Assembly
28. By-pass with Fittings
29. Seal Lock Collar with Set Screws
30. Nameplate with Drive Screws
31. Adjustable Flanged Spacer Coupling
Assembly
32. Driver Bolts and Nuts
33.Driver Shaft
24. Seal Lock Flush and Quench Pipe Plugs
