Triumph Trophy SE User Manual

124
Maintenance and Adjustment
Note:
• HD4X Hybrid OAT coolant, as
supplied by Triumph, is pre-mixed
and does not need to be diluted
prior to filling or topping up the
cooling system.

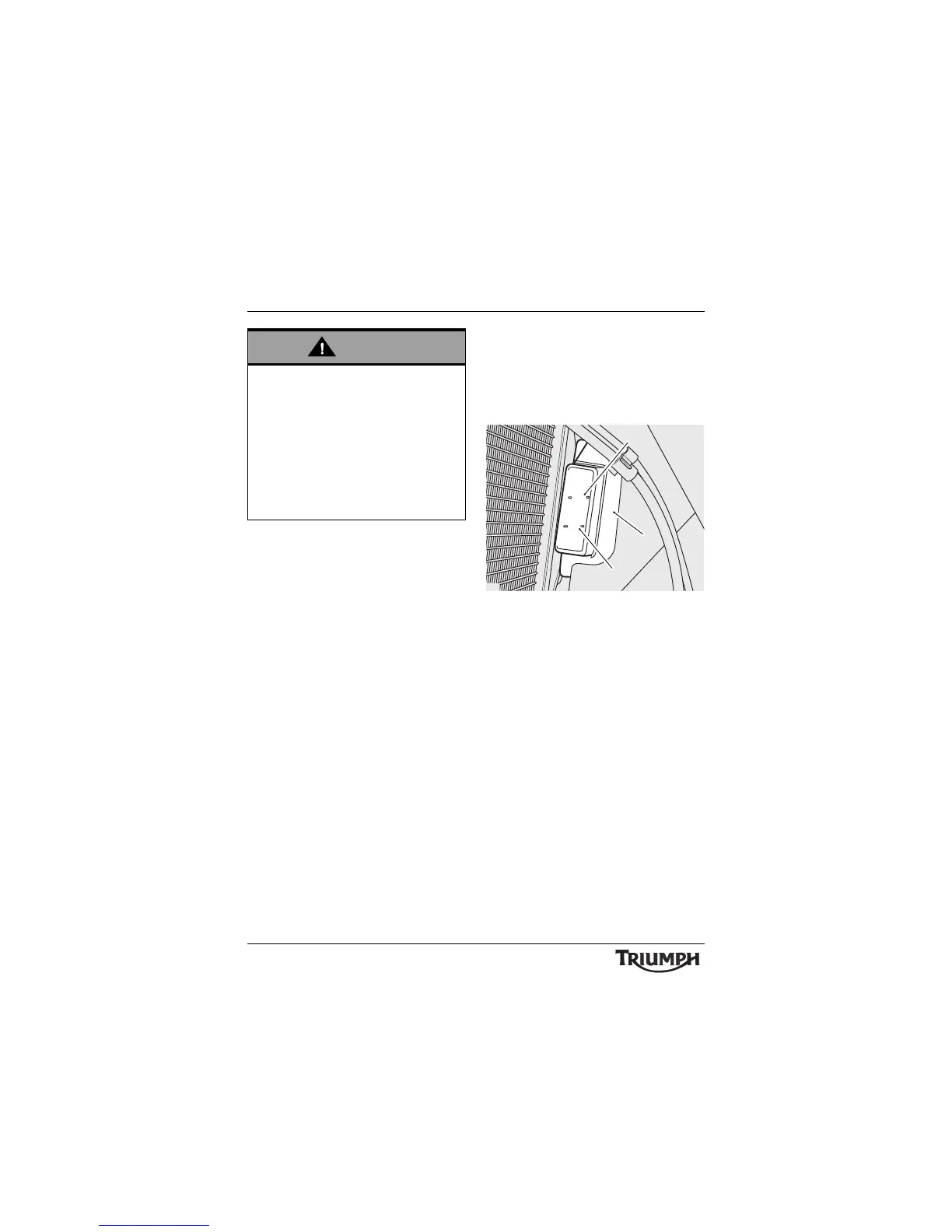

Coolant Level Inspection
Note:
• The coolant level should be checked
when the engine is cold (at room or
ambient temperature).
1. Expansion tank
2. MAX mark
3. MIN mark
Position the motorcycle on level ground and
in an upright position. Check the coolant
level in the expansion tank by looking up
through the centre opening of the front
fairing.
Check the coolant level in the expansion
tank. The coolant level must be between the
MAX and MIN marks. If the coolant is below
the minimum level, the coolant level must be
adjusted.
Warning
HD4X Hybrid OAT coolant contains
corrosion inhibitors and anti-freeze suitable
for aluminium engines and radiators.
Always use the coolant in accordance with
the instructions of the manufacturer.
Coolant that contains anti-freeze and
corrosion inhibitors contains toxic
chemicals that are harmful to the human
body. Never swallow anti-freeze or any of
the motorcycle coolant.
MIN
MAX
chsz
2
1
3

Triumph Trophy SE Specifications

General

Engine Type	Liquid-cooled, 12 valve, DOHC, in-line 3-cylinder
Displacement	1215 cc
Bore x Stroke	85 x 71.4 mm
Compression Ratio	11.0:1
Max Torque	120 Nm @ 6, 450 rpm
Fuel System	Multipoint sequential electronic fuel injection
Final Drive	Shaft
Clutch	Wet, multi-plate
Gearbox	6-speed
Frame	Aluminium beam twin-spar
Front Tyre	120/70 ZR17
Rear Tyre	190/55 ZR17
Fuel Tank Capacity	26 litres
Max Power	134 PS / 132 bhp @ 8, 900 rpm
Exhaust	Stainless steel 3 into 1
Front Suspension	WP 43mm upside down forks, adjustable rebound and compression damping
Rear Suspension	WP monoshock, adjustable rebound and compression damping
Front Brakes	Twin floating discs, Nissin 4-piston calipers, ABS
Rear Brakes	Single 282mm disc, Nissin 2-piston caliper, ABS
Front Wheel	Cast aluminium alloy 17 x 3.5in
Rear Wheel	Cast aluminium alloy 17 x 6.0in
Seat Height	800 mm (adjustable)
Wet Weight	301 kg
