Maintenance and Adjustment
Battery Removal

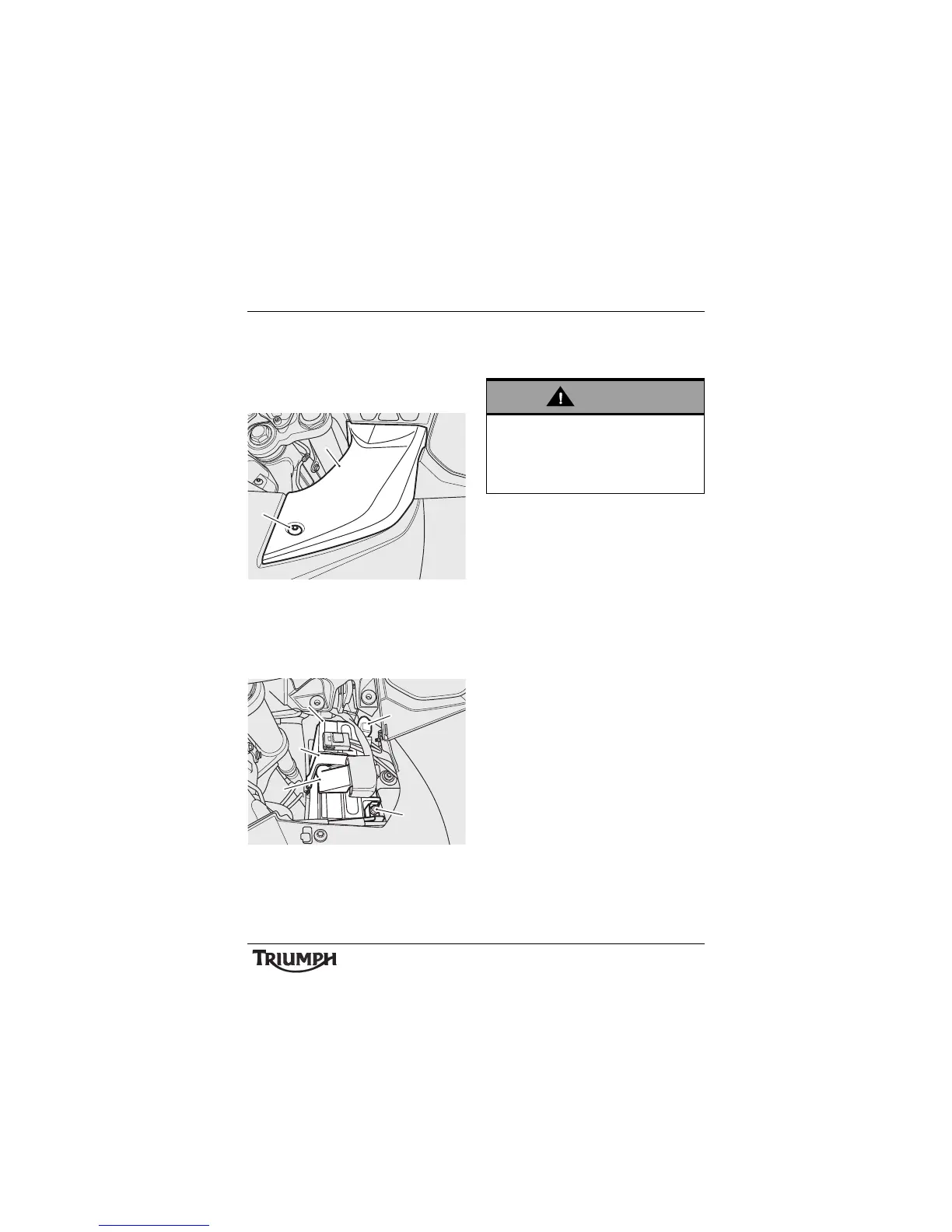

Remove the fixing securing the right hand
cockpit infill panel and remove the panel
from the two front studs/grommets by
pulling upwards and rearwards.
1. Infill panel
2. Fixing
Remove the battery strap.
Reposition the diagnostic connector and fuse
box bracket.
1. B a t t e r y
2. Negative (black) terminal
3. Positive (red) terminal
4. Battery strap
5. Diagnostic connector and fuse box
bracket
Disconnect the battery leads, negative (black)
lead first.
Lift the battery out of the case.
Battery Disposal
Should the battery ever require replacement,
the original battery must be handed to a
recycling agent who will ensure that the
dangerous substances from which the battery
is manufactured do not pollute the
environment.
Ensure that the battery terminals do not
touch the motorcycle frame as this may
cause a short circuit or spark, which would
ignite battery gases causing a risk of
personal injury.
