Triumph Trophy SE User Manual

84
General Information

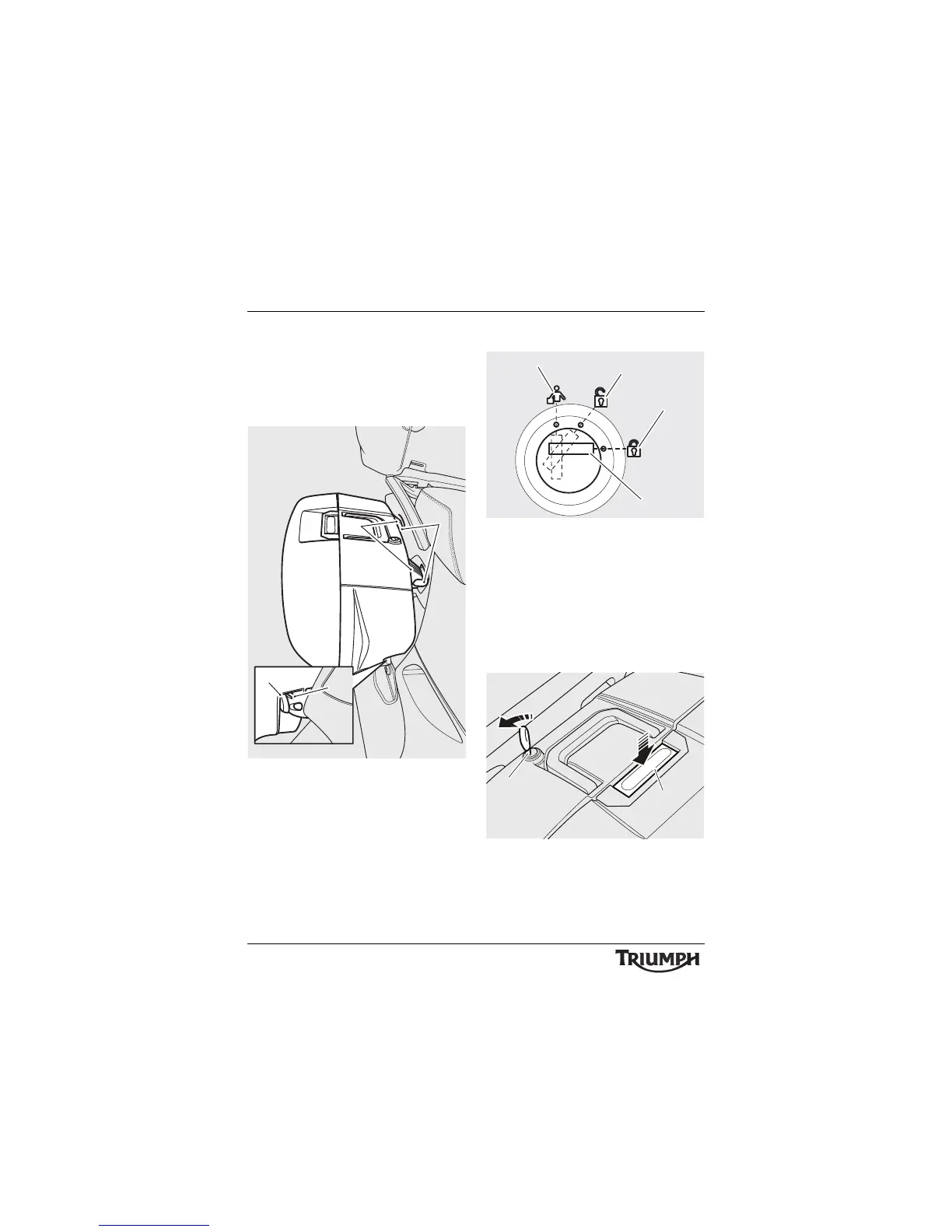

Position the pannier to the motorcycle and
engage the fixed hooks of the pannier with
the pannier mounting points.
Ensure that the lower mounting bracket fits
into the locating cup moulded into the front
of the pannier.
1. Pannier fixed hooks
2. Pannier mountings
3. Locating bracket
4. Locating cup
Lock the pannier to the rail by pressing the
carrying handle to the fully closed position
whilst turning the key to the LOCK position.
Remove the key.
Pannier Operation
1. Key slot (shown in the LOCK
position)
2. Lock position symbol
3. Unlock position symbol
4. Release position symbol
To unlock and open the pannier, insert the
key and turn it to the UNLOCK position,
then press down on the latch plate. The lid
can then be opened.
1. L o c k
2. Latch plate
chtm
4
1
2
3
2
3
4
1
1
cgds
2

Triumph Trophy SE Specifications

General

Engine Type	Liquid-cooled, 12 valve, DOHC, in-line 3-cylinder
Displacement	1215 cc
Bore x Stroke	85 x 71.4 mm
Compression Ratio	11.0:1
Max Torque	120 Nm @ 6, 450 rpm
Fuel System	Multipoint sequential electronic fuel injection
Final Drive	Shaft
Clutch	Wet, multi-plate
Gearbox	6-speed
Frame	Aluminium beam twin-spar
Front Tyre	120/70 ZR17
Rear Tyre	190/55 ZR17
Fuel Tank Capacity	26 litres
Max Power	134 PS / 132 bhp @ 8, 900 rpm
Exhaust	Stainless steel 3 into 1
Front Suspension	WP 43mm upside down forks, adjustable rebound and compression damping
Rear Suspension	WP monoshock, adjustable rebound and compression damping
Front Brakes	Twin floating discs, Nissin 4-piston calipers, ABS
Rear Brakes	Single 282mm disc, Nissin 2-piston caliper, ABS
Front Wheel	Cast aluminium alloy 17 x 3.5in
Rear Wheel	Cast aluminium alloy 17 x 6.0in
Seat Height	800 mm (adjustable)
Wet Weight	301 kg
