Pannier System
Note:
• The same procedure can be
followed to remove and mount the
left hand or the right hand pannier.

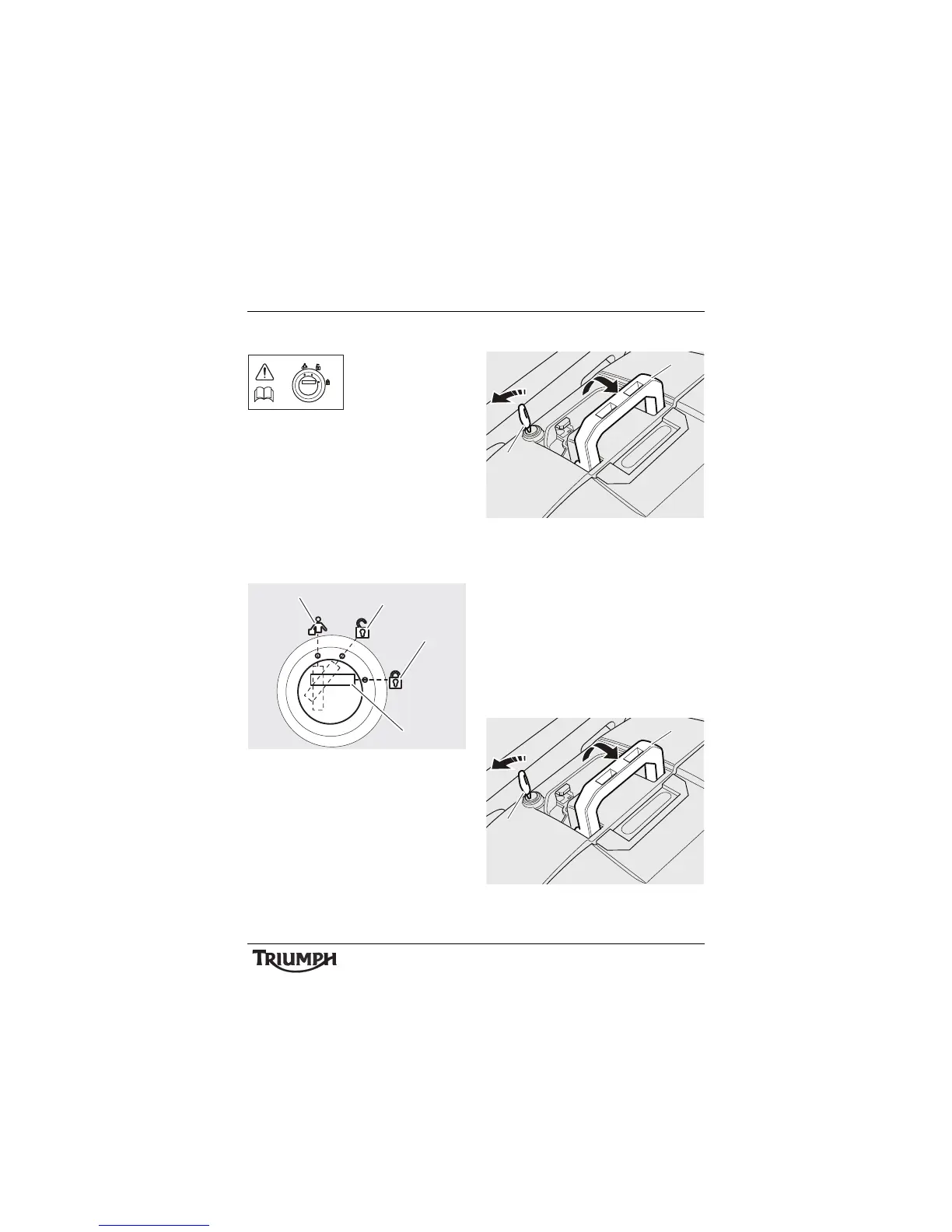

• The pannier is marked in three
positions around the lock barrel. To
lock, open or release the panniers,
the key slot must align with the
corresponding symbols around the
barrel as shown.
1. Key slot (shown in the LOCK
position)
2. Lock position symbol
3. Unlock position symbol
4. Release position symbol
To Remove Each Pannier:
1. L o c k
2. Carrying handle
To unlock and remove the pannier from the
pannier mountings, turn the key to the
RELEASE position and lift the carrying handle
to its fully raised position. Lift the pannier free
from the pannier mountings.
To Install Each Pannier:
Insert the key into the lock. Turn the key to
the RELEASE position and lift the carrying
handle to its fully raised position.
1. L o c k
2. Carrying handle
2
3
4
1
