Triumph Trophy SE - General Information - Instrument Panel and Displays; Instrument Panel Layout and Warning Lights

21
General Information

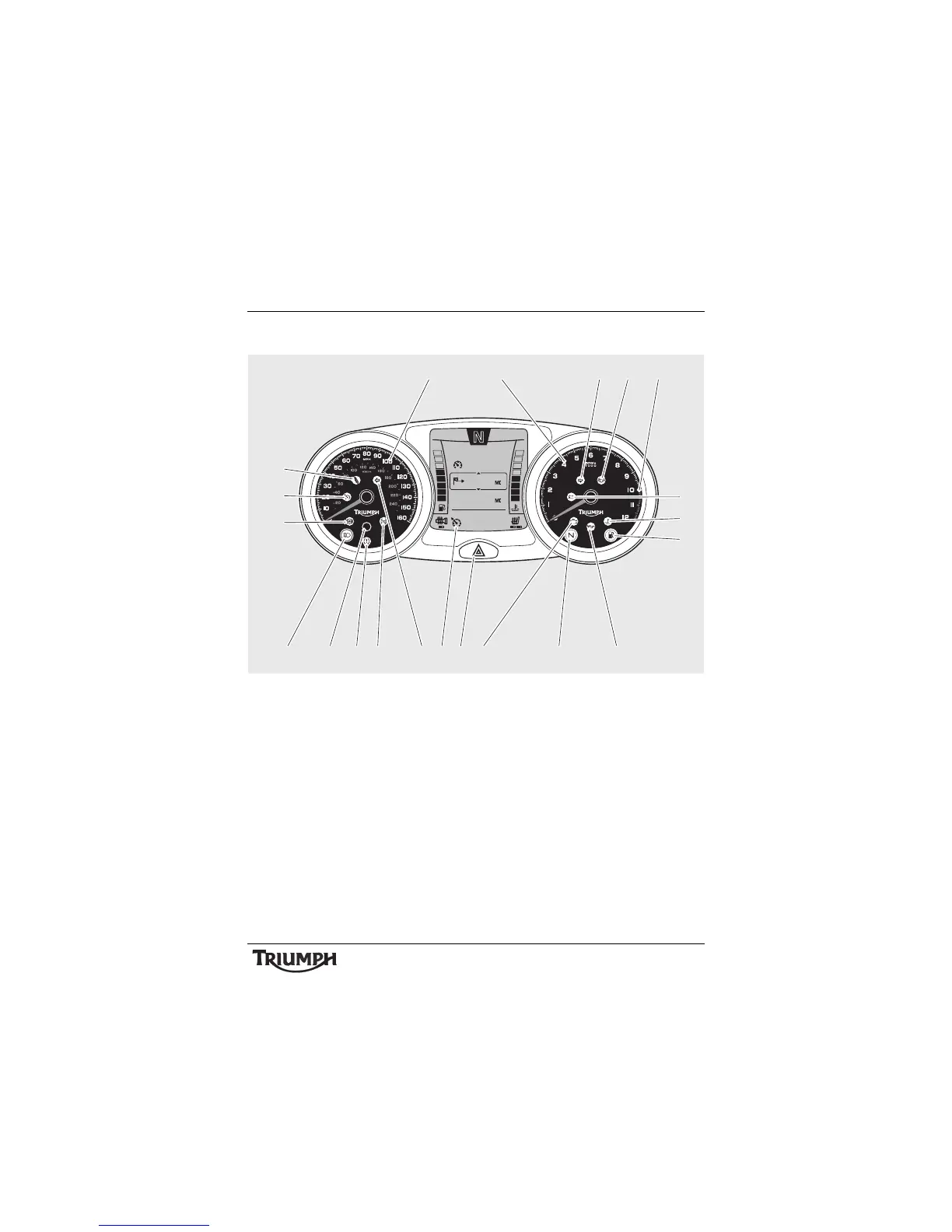

Instrument Panel Layout
1. Speedometer
2. Tachometer
3. Right hand direction indicator light
4. Alarm/immobiliser status indicator
light (alarm is an accessory fit)
5. Tachometer 'red zone'
6. Battery warning light
7. High coolant temperature warning
light
8. Low fuel level indicator light
9. Low oil pressure warning light
10. Neutral indicator light
11. Engine management malfunction
indicator light
12. Hazard warning lights button
13. Multi-function display screen
(See next page)
14. Left hand direction indicator light
15. Triumph Traction Control (TTC) light
16. Tyre pressure warning light (if Tyre
Pressure Monitoring System (TPMS)
is fitted)
17. Ambient light sensor
18. High beam indicator light
19. ABS warning light
20. Cruise control light
21. Triumph Electronic Suspension (TES)
warning light (if electronic
suspension is fitted)
