Triumph Trophy SE User Manual

65
General Information
Pass Button
Note:
• The pass button will only operate
when the engine is running.
When the pass button is pressed, the
headlight main beam will be switched on. It
will remain on as long as the button is held in
and will turn off as soon as the button is
released.
Instrument SCROLL Button
When the SCROLL button is pressed and
released it will scroll through the menu visible
in the instrument's display screen.
Instrument SELECT Button
When the SELECT button is pressed it will
select the menu item highlighted in the
instrument's display screen.

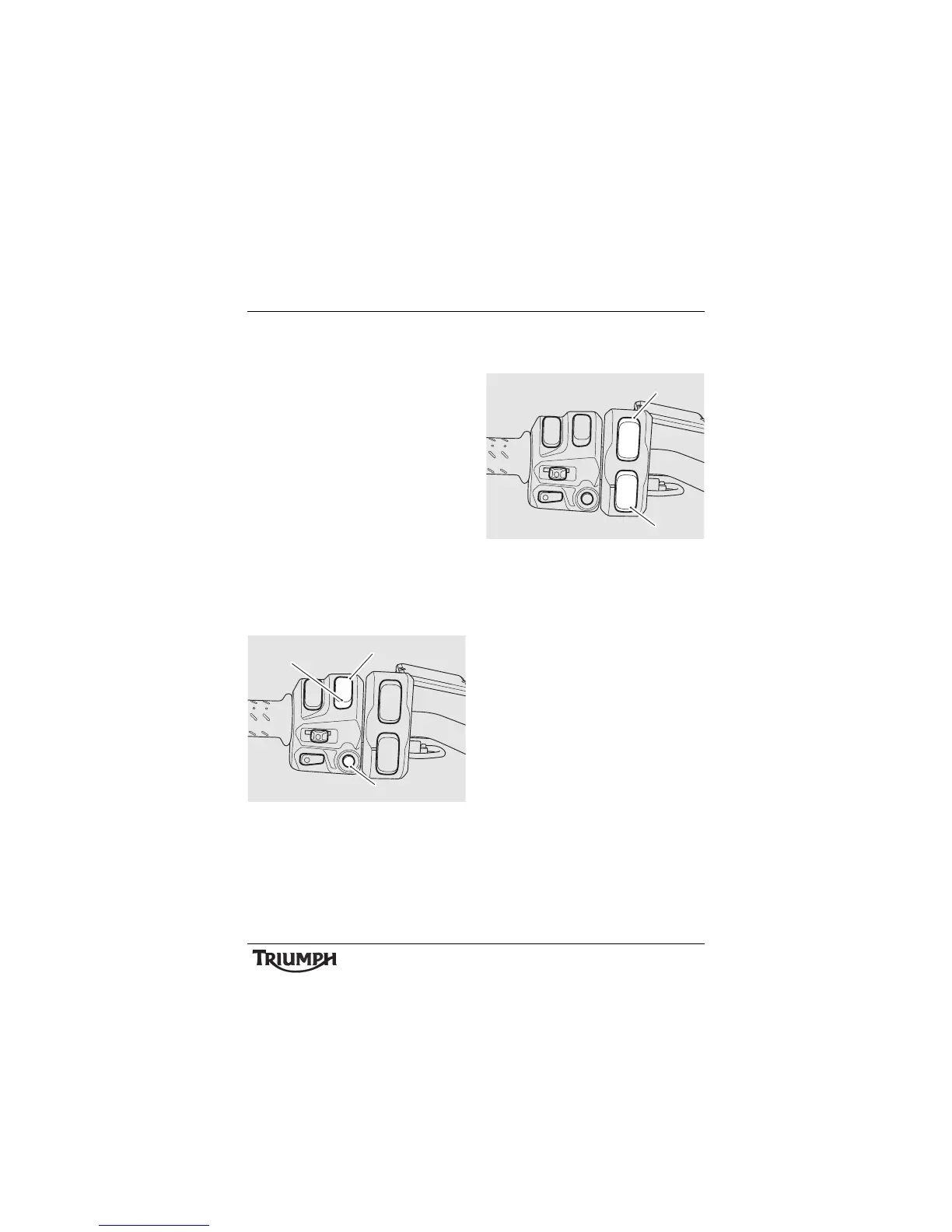

1. SCROLL button, up
2. SCROLL button, down
3. SELECT button
Windscreen and Heated
Grips Switch Unit
1. Windscreen switch
2. Heated grips switch
Motorcycles without Audio
The windscreen and heated grip switch is
located on the left hand handlebar, next to
the left handlebar switch cube.
For windscreen adjustment see page 81 .
For heated grip operation see page 77.
Motorcycles with Audio
Motorcycles with audio fitted have an
additional set of switches installed next to the
windscreen and heated grip switch.
The audio system is described in detail in the
Audio System Handbook supplied with the
motorcycle.
3
chsb_2
1
2
2
chsb_1
1

Triumph Trophy SE Specifications

General

Engine Type	Liquid-cooled, 12 valve, DOHC, in-line 3-cylinder
Displacement	1215 cc
Bore x Stroke	85 x 71.4 mm
Compression Ratio	11.0:1
Max Torque	120 Nm @ 6, 450 rpm
Fuel System	Multipoint sequential electronic fuel injection
Final Drive	Shaft
Clutch	Wet, multi-plate
Gearbox	6-speed
Frame	Aluminium beam twin-spar
Front Tyre	120/70 ZR17
Rear Tyre	190/55 ZR17
Fuel Tank Capacity	26 litres
Max Power	134 PS / 132 bhp @ 8, 900 rpm
Exhaust	Stainless steel 3 into 1
Front Suspension	WP 43mm upside down forks, adjustable rebound and compression damping
Rear Suspension	WP monoshock, adjustable rebound and compression damping
Front Brakes	Twin floating discs, Nissin 4-piston calipers, ABS
Rear Brakes	Single 282mm disc, Nissin 2-piston caliper, ABS
Front Wheel	Cast aluminium alloy 17 x 3.5in
Rear Wheel	Cast aluminium alloy 17 x 6.0in
Seat Height	800 mm (adjustable)
Wet Weight	301 kg
