Maintenance and Adjustment
Rear Suspension
Note:
• The motorcycle is delivered from
the factory with the rear suspension
set at the standard settings, as
shown in the rear suspension setting
chart (see page 13 8 ).
• This chart is only a guide. Setting
requirements may vary for rider
weight and personal preferences.
See the following pages for
information regarding suspension
adjustment.
Rear Suspension Adjustment
(Trophy models only)
Note:
• Suspension adjustments for
Trophy SE models fitted with
Triumph Electronic Suspension (TES)
are described on page 54.
The rear suspension unit is adjustable for
spring pre-load and rebound damping.
Spring Pre-Load Adjustment

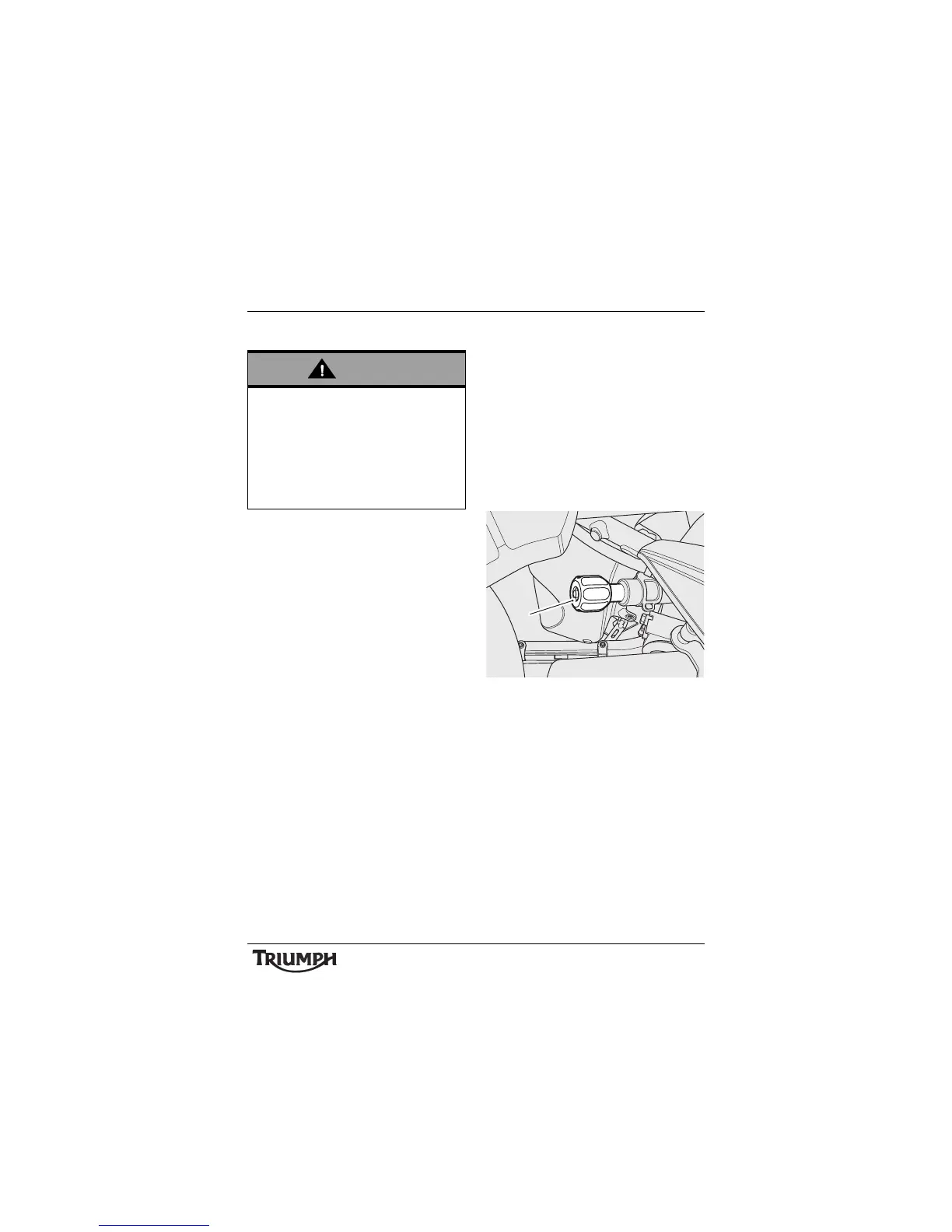

1. Spring pre-load adjuster
The spring pre-load adjuster is situated on
the right hand side of the motorcycle, at the
rear of the rear suspension unit.
To adjust the spring pre-load setting rotate
the adjuster clockwise to increase, or anti-
clockwise to decrease.
Note:
• The setting is measured as the
number of adjuster 'clicks' anti-
clockwise from the fully clockwise
(hardest) position.
• The motorcycle is delivered from
the factory with the spring pre-load
set 20 clicks anti-clockwise from the
fully clockwise position.
Ensure that the correct balance between
front and rear suspension is maintained.
Suspension imbalance could significantly
change handling characteristics leading to
loss of control and an accident. Refer to the
the front and rear suspension setting charts
for further information or consult your
dealer.
