Maintenance and Adjustment
Rear Light Assembly
The rear light, licence plate light and rear
direction indicators are incorporated in a
single assembly.
The rear light unit is a sealed, maintenance
free LED unit. The direction indicator bulbs
and licence plate light bulb can be replaced
as described below:
Rear Light Assembly Removal and
Installation
1. R - c l i p
2. Wing nut
Remove the rear seat (see page 73).
Remove the R-clip and wing nut and detach
the rear light assembly.
Installation is the reverse of the removal
procedure, noting the following:
• Tighten the plastic nut to 1. 2 5 N m .

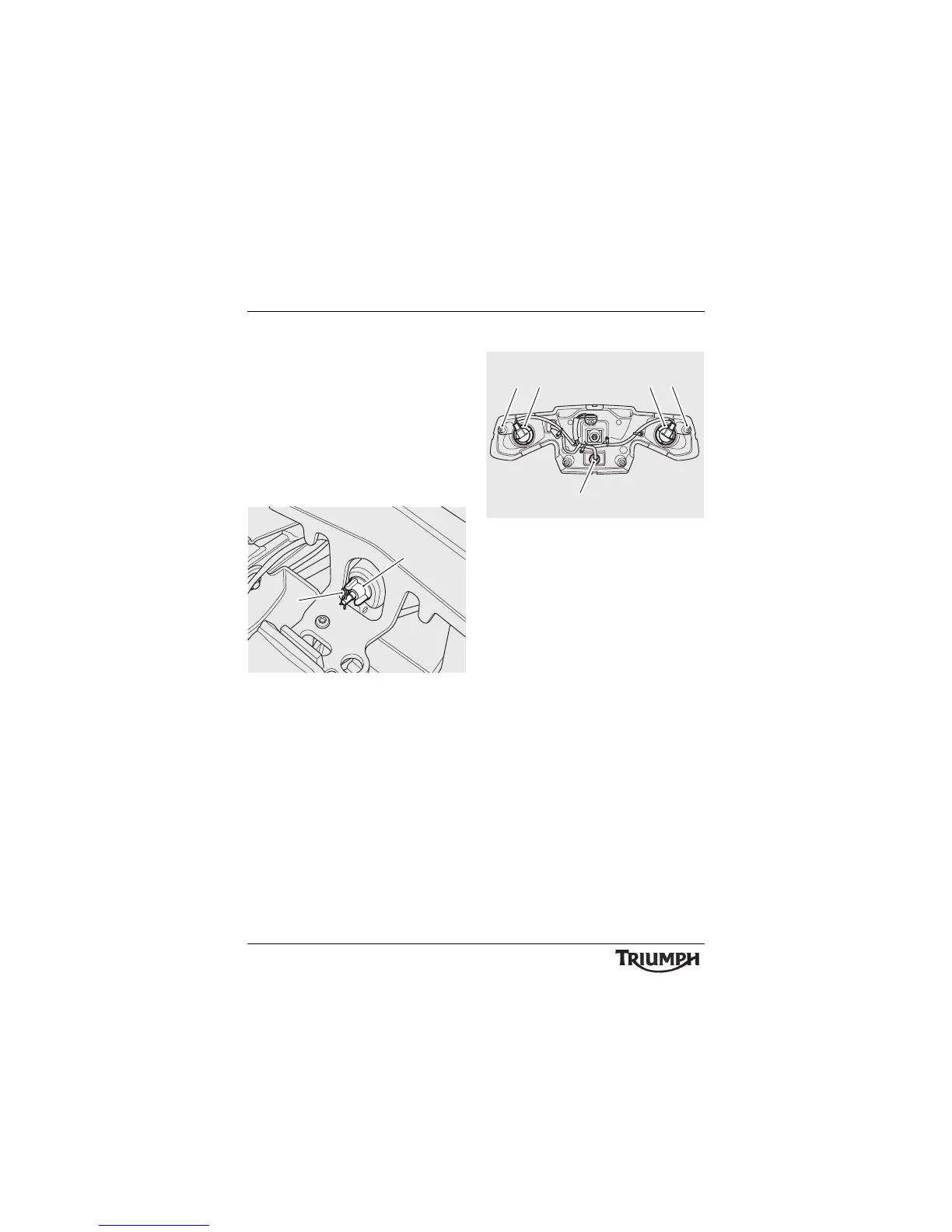

Bulb Replacement
1. Indicator bulb holders
2. Licence plate light bulb holder
3. Outer studs
Rear Direction Indicator Bulb
Replacement
Rotate the bulb holder and connector away
from the outer stud to release it.
Replace the bulb.
Insert the bulb holder to the rear light unit
and rotate towards the outer stud to secure it
in the rear light assembly.
Licence Plate Light Bulb Replacement
Carefully pull the bulb holder from the back
of the licence plate light unit and remove the
bulb.
Installation is the reverse of the removal
procedure.
chsw
1
2
chtj
2
11
chtj
3
3

Triumph Trophy SE Specifications

General

Engine Type	Liquid-cooled, 12 valve, DOHC, in-line 3-cylinder
Displacement	1215 cc
Bore x Stroke	85 x 71.4 mm
Compression Ratio	11.0:1
Max Torque	120 Nm @ 6, 450 rpm
Fuel System	Multipoint sequential electronic fuel injection
Final Drive	Shaft
Clutch	Wet, multi-plate
Gearbox	6-speed
Frame	Aluminium beam twin-spar
Front Tyre	120/70 ZR17
Rear Tyre	190/55 ZR17
Fuel Tank Capacity	26 litres
Max Power	134 PS / 132 bhp @ 8, 900 rpm
Exhaust	Stainless steel 3 into 1
Front Suspension	WP 43mm upside down forks, adjustable rebound and compression damping
Rear Suspension	WP monoshock, adjustable rebound and compression damping
Front Brakes	Twin floating discs, Nissin 4-piston calipers, ABS
Rear Brakes	Single 282mm disc, Nissin 2-piston caliper, ABS
Front Wheel	Cast aluminium alloy 17 x 3.5in
Rear Wheel	Cast aluminium alloy 17 x 6.0in
Seat Height	800 mm (adjustable)
Wet Weight	301 kg
