Maintenance and Adjustment

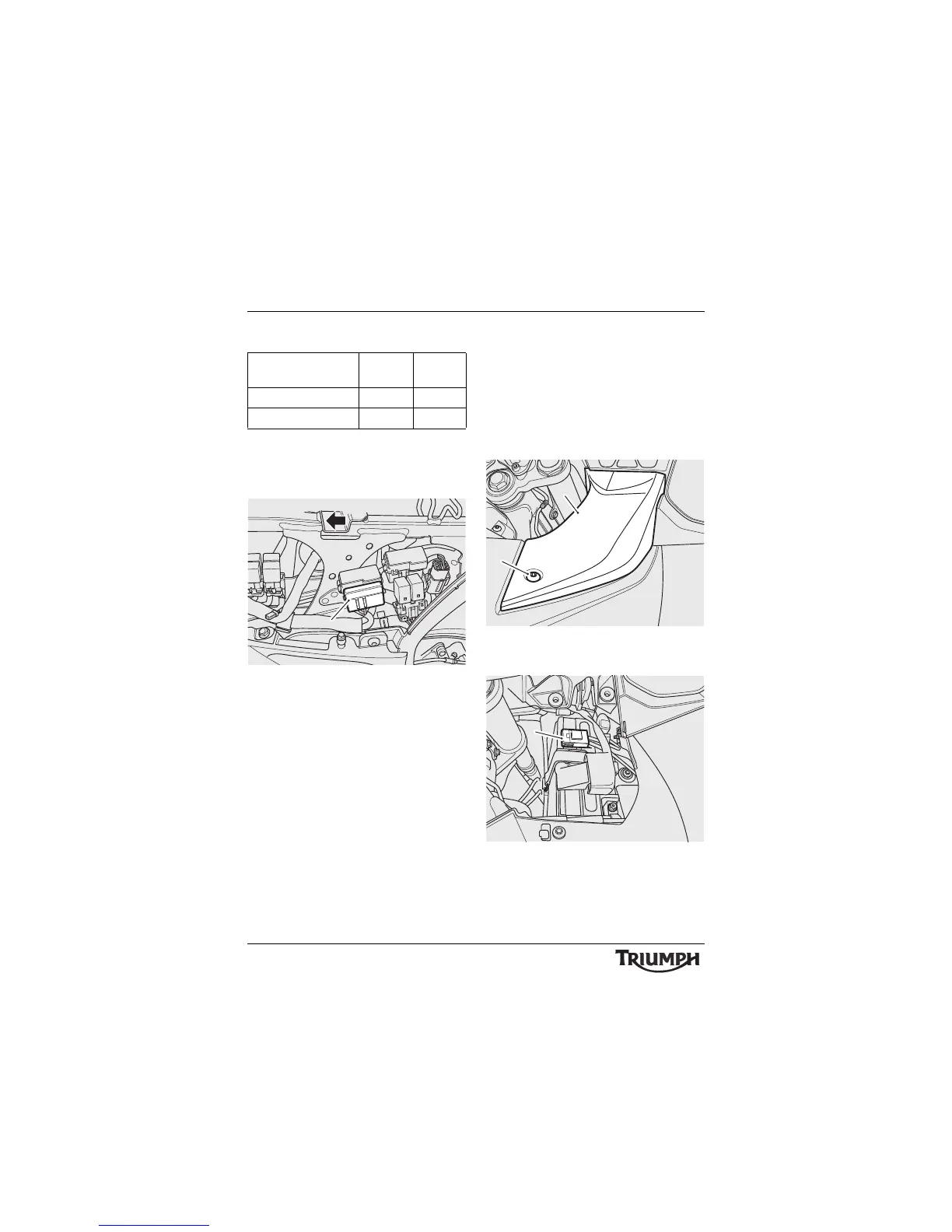

ABS Fuse Box
The ABS system is protected by two fuses,
located in a separate fuse box next to the
front fuse box. The ABS fuse box also
contains a spare 20 Amp fuse.
1. A B S f u s e b o x
To allow access to the ABS fuse box, the left
hand side panel must be removed (see
page 12 9 ).
Main Fuse
The 40 Amp main fuse is located above the
battery.
To allow access to the main fuse, remove the
fixing securing the right hand cockpit infill
panel and remove the panel from the two
front studs/grommets by pulling upwards
and rearwards.
1. Infill panel
2. Fixing
1. M a i n f u s e
Circuit Protected Position Rating
(Amps)
ABS 1 20
ABS 2 20
