149
Maintenance and Adjustment
Apply a light coat of grease to the terminals
to prevent corrosion.
Cover the positive terminal with the
protective cap.
Reposition the diagnostic connector and fuse
box bracket.
Refit the battery strap, ensuring the
diagnostic connector and fuse box bracket is
secured by the strap.
Align the infill panel mounting studs to the
grommets and press down and forwards to
secure.
Align the infill panel to the cockpit and refit
the fixing, tightening to 3Nm.

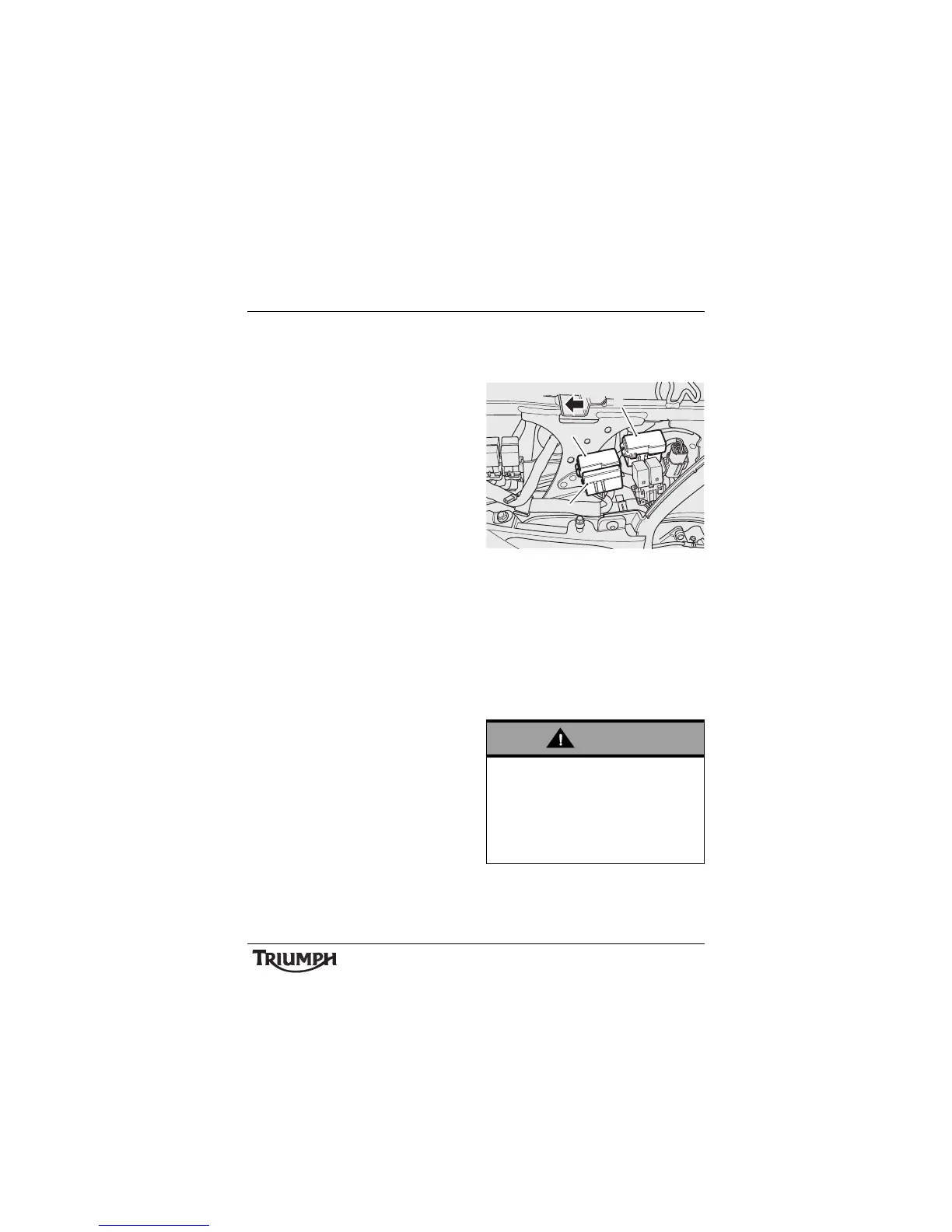

Fuse Boxes
Main Fuse Boxes
1. Front fuse box
2. Rear fuse box
3. ABS fuse box
The three fuse boxes are located beneath the
left hand side panel.
To allow access to the fuse boxes, the left
hand side panel must be removed (see
page 12 9 ).
The ABS fuse box is located next to the front
main fuse box.
Always replace blown fuses with new ones
of the correct rating (as specified on the
fuse box cover) and never use a fuse of
higher rating. Use of an incorrect fuse
could lead to an electrical problem,
resulting in motorcycle damage, loss of
motorcycle control and an accident.
