Maintenance and Adjustment
Position Light Bulb Replacement
1. Position light bulb
The position light is fitted to the underside of
the headlight, behind the headlight trim
panel.
To Repl a ce the B ulb:
Disconnect the battery, negative (black) lead
first (see page 14 4 ).
Remove the two fixings and detach the
headlight trim panel (located below the
headlight) by sliding it forwards.
Disconnect the ambient air temperature
sensor connector and remove the trim panel.

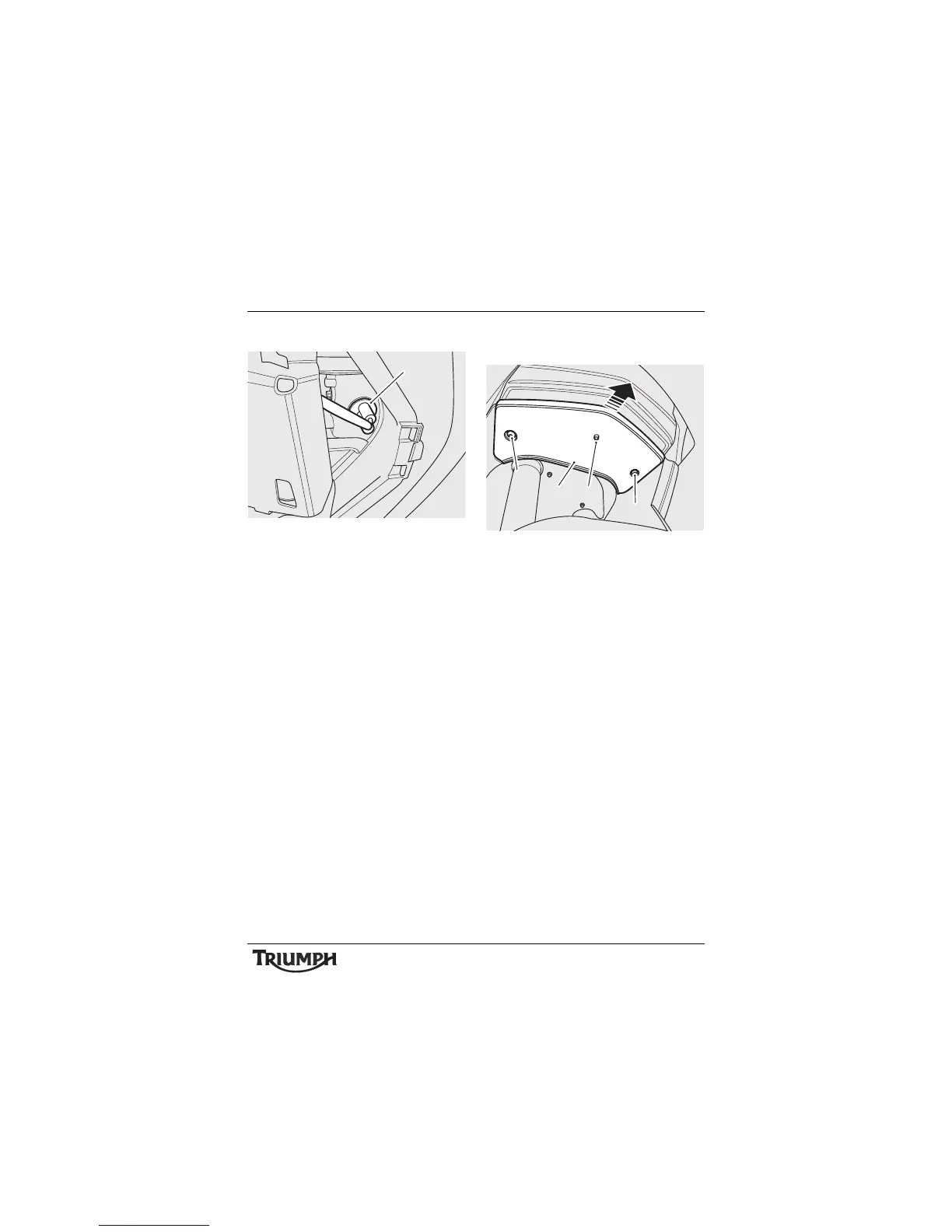

1. Headlight trim panel
2. Fixings
3. Removal direction
4. Ambient air temperature sensor
location
Rotate the bulb holder anti-clockwise to
release it.
Replace the bulb.
Installation is the reverse of the removal
procedure, noting the following:
• Reconnect the ambient air temperature
sensor connector.
• Refit the headlight trim panel, ensuring
the hooks on the panel engage in the
slots on the underside of the headlight.
Tighten the fixings to 3Nm.
• Reconnect the battery, positive (red) lead
first (see page 14 4 ).
