Fuse Identification
A blown fuse is indicated when all of the
systems protected by that fuse become
inoperative. When checking for a blown fuse,
use the tables to establish which fuse has
blown.
The fuse identification numbers listed in the
tables correspond with those printed on the
fuse box covers, as shown below. Spare fuses
are located at right angles to the main fuses
and should be replaced if used.

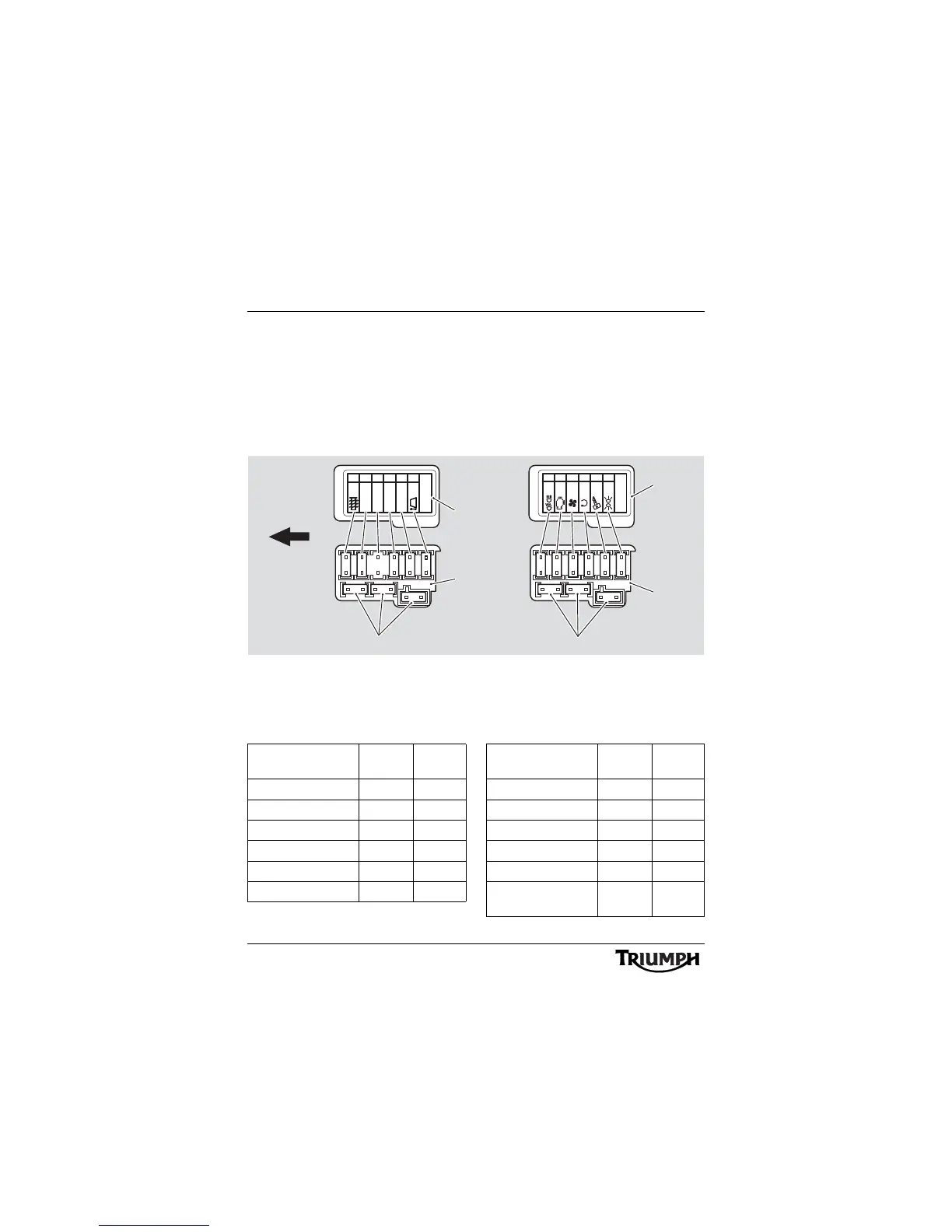

Fuse Layout - Trophy
1. Front fuse box cover
2. Front fuse box
3. Spare fuses
4. Rear fuse box
5. Rear fuse box cover
Front Fuse Box Rear Fuse Box
10 10
2
10
15
10
10
6
OPEN
15A
5
20A
4
10A
3
10A
2
10A
1
10
15
20
15
20
15
20
10
15
20A
1
OPEN
15A
2
20A
3
10A
4
15A
5
10A
6
10
12V 12V 12V
EMPTY
2
1
4
5
3
cebw
3
Front of
Motorcycle
Circuit Protected Position Rating
(Amps)
Heated grips 1 10
Auxiliary socket 2 10
Empty 3 -
Auxiliary sockets 4 20
Auxiliary sockets 5 10
Windscreen 6 15
Circuit Protected Position Rating
(Amps)
Headlight 1 20
Engine management 2 15
Cooling fan 3 20
Fuel pump 4 10
Ignition, instruments 5 15
Tail light, brake light,
horn
610
