Operation

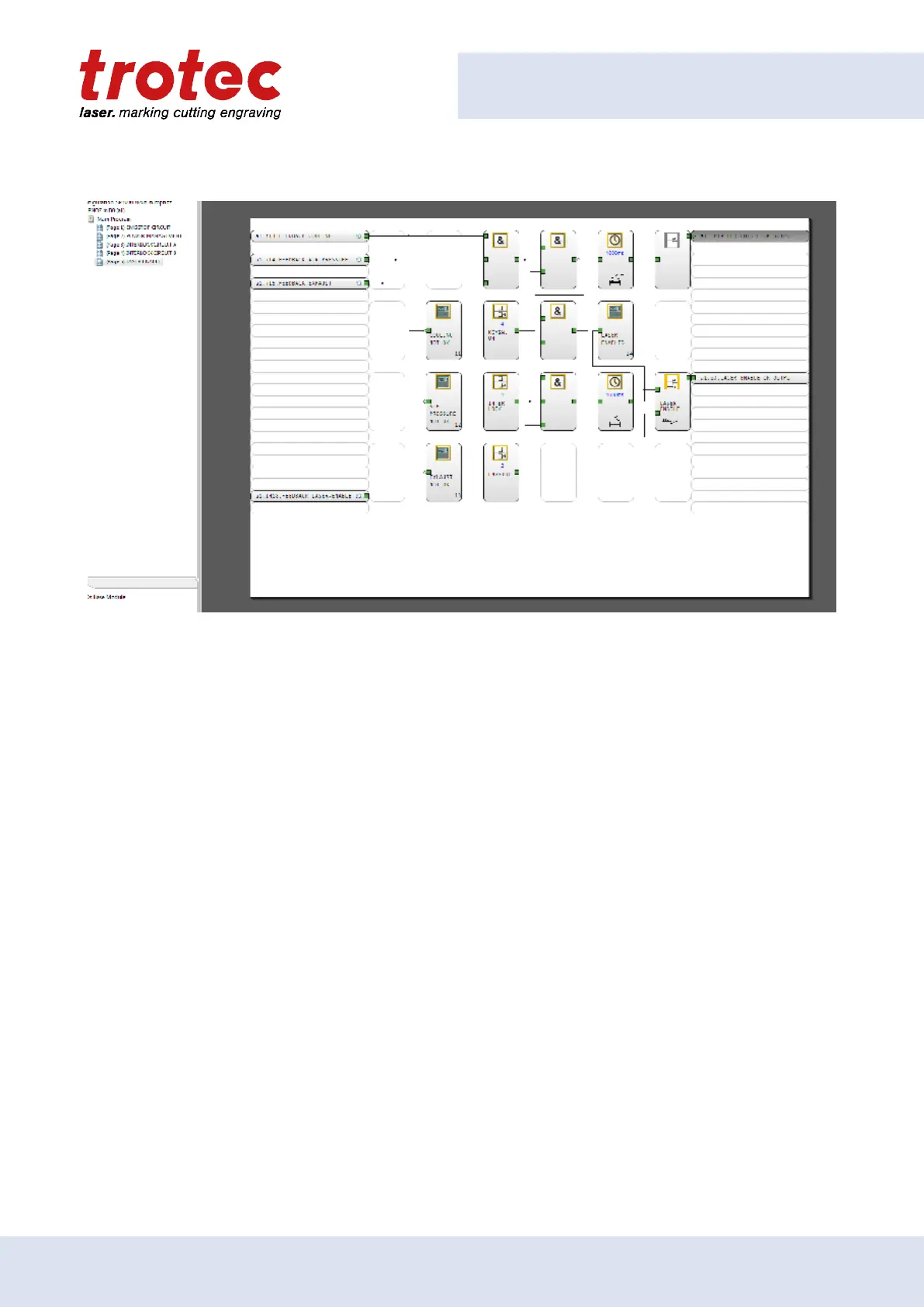

In the upper left corner, the presence of cooling, air pressure and suction is monitored Below is the
acknowledgment input of the safety relay 30A4, which monitors whether the safety relay has actually
switched, as long as it has been actuated by the right-hand output "LASER ENABLE OUTPUT". The
feedback line should not be set if the safety relay has tripped correctly. The output "LASER ENABLE
OUTPUT" is the output that actually enables the laser source to emit la-ser emissions, the output is only
switched when all sensors are working correctly and the feedback messages are all available. This output
directly switches the safety relay 30A4 in the electric circuit, at which the LED "In1", "In2" and "Out" should
light up when the enable is completed!
Page 6 DIAGNOSIS
Click on page 6 to see the DIAGNOSIS circuit.
ENGLISH (Translation) 73
