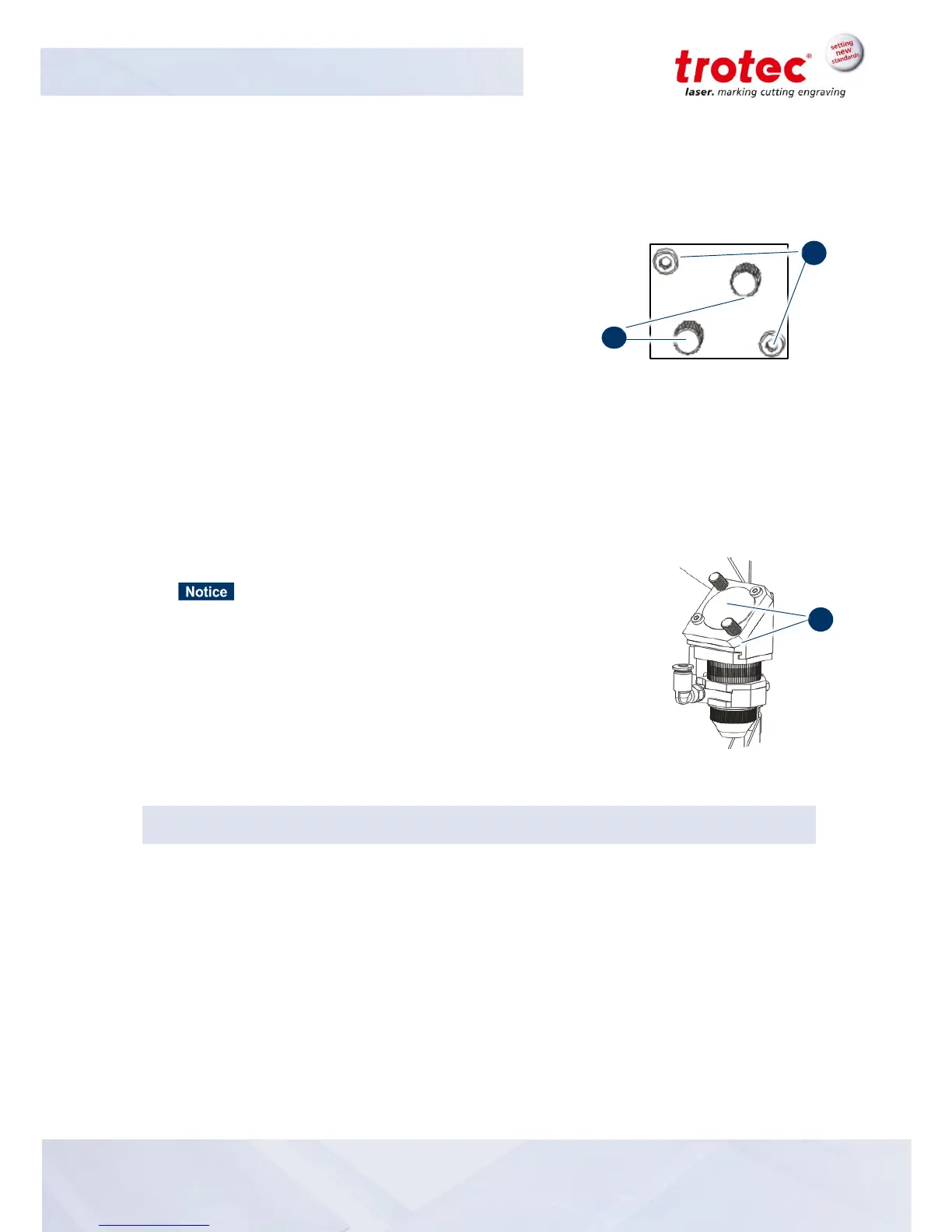

9.4.2.1 Cleaning the mirrors #2 and #3
1. For cleaning of mirrors #2 and #3, you must first remove the right maintenance panel.
2. Do not remove the mirror #2. It must remain in the machine for cleaning.
3. The mirror #3 is attached by means of two Allen screws (1), which are
located on the mirror holder. Open the screws and remove the lens
holder together with the mirror.
4. Do not touch the milled screws (2) while doing this!
5. Flush the mirror with cleaning liquid to wash away coarse soiling.
6. Put some cleaning liquid onto the mirror and leave the liquid for 1
minute to take effect.
7. Soak a cleaning tissue with cleaning liquid and carefully wipe off the surface.
8. Now carefully put back the mirror and fixate it with the two Allen screws.
9.4.2.2 Cleaning the mirror #4
1. While holding the mirror, loosen the two knurled screws (1) and lift the mirror from the mirror
holder.
Make sure that the mirror does not grind over the
mirror holder, as it can be scratched very easily
2. Flush the mirror with cleaning liquid to wash away coarse soiling.
3. Put some cleaning liquid onto the mirror and leave the liquid for 1
minute to take effect.
4. Soak a cleaning tissue with cleaning liquid and carefully wipe off the
surface.
5. Now carefully re-insert the mirror and fixate it with the two knurled screws.
9.5 Cleaning the ultrasonic sensor (Option Sonar Technology™)
The sensor can be cleaned either with a brush, or be wiped drily, with moisture or with mild detergents
and a microfiber or anti-statics cloth. In case of stronger soiling, isopropyl or ethanol solution can be
used.
However, avoid long application time and long-term usage.
