5.1.1 Operation panel
No
Description
1
Status indicator:
Laser beam
LED ON: The machine is processing or receiving data.
2
Button:
Standby
Press the button to switch to “Standby” mode (LED ON). Press the
button again to switch back to “Ready” mode (LED OFF).
When the button is pressed while the Z axis is moving (e.g. during
autofocus), the machine enters “Standby” mode only after finishing
the Z axis movement.
3
Button:
Home
Press the button for 3 sec. to temporarily define the position of the
laser head as home position. (Marker in JobControl
®
)
LED ON: Home position temporarily changed
To deactivate the temporary home position, press Shift + Home.
4
Button:
X/Y position laser
head
Press the button to manually move the laser head to the right, left,
front or back.
Press two of the four X/Y position keys simultaneously to move the
laser head diagonally.
Press Shift together with one of the X/Y position keys to move the
laser head quickly to the corresponding end position.

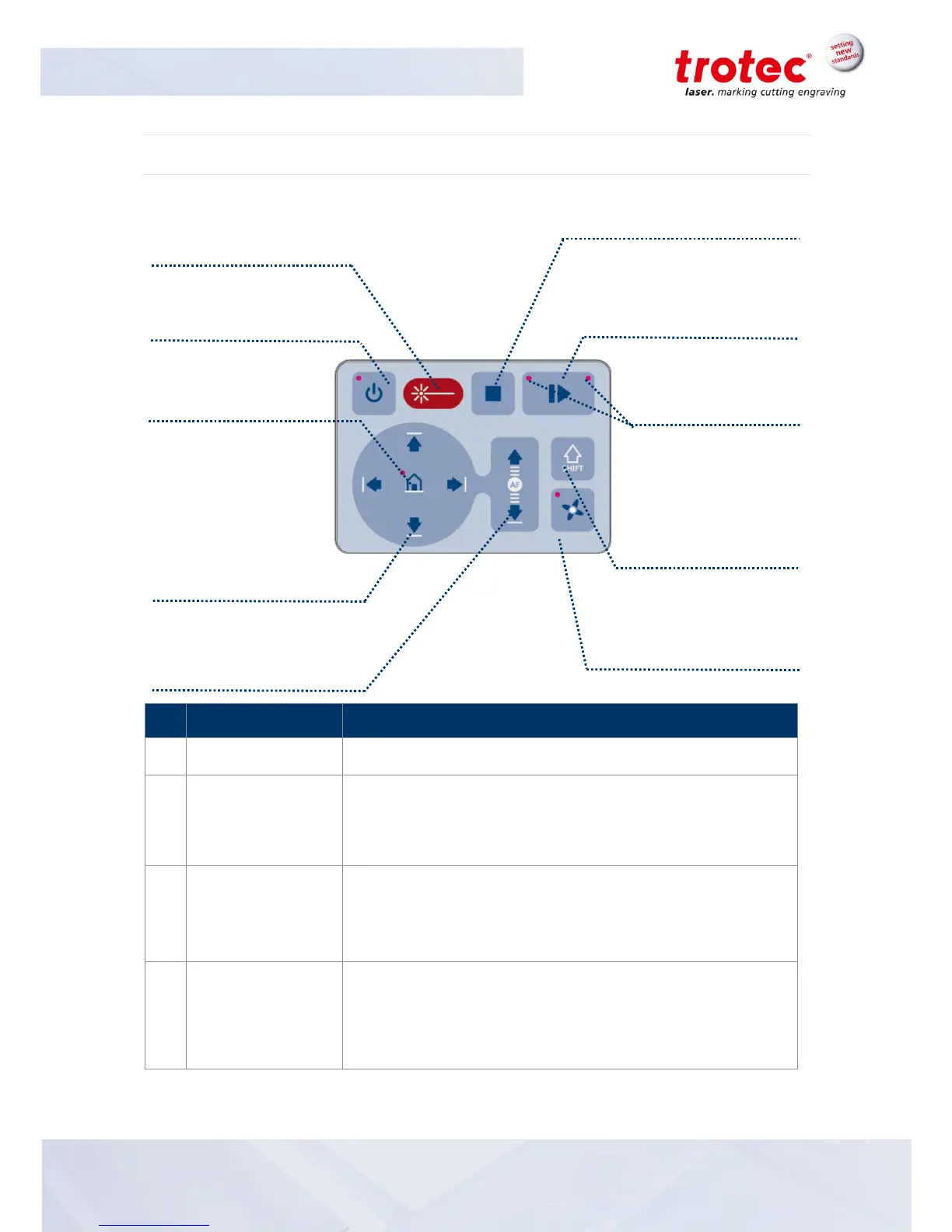

1.Status indicator: Laser beam
LED ON: The machine is processing or
receiving data
5 Button: Z position working table
-Up
-Down
Focus automatically (Autofocus)
3 Button: Home
LED ON: Home position
temporarily changed
2 Button: Standby
LED ON: Standby Mode
LED OFF: Ready Mode
4 Button: X/Y position laser head
-X-axis direction
-Y-axis direction
9. Button: Shift
Second operating level
10.Button: Exhaust
LED ON: Exhaust active
8. Status LEDs
7.
Button: Start/Pause/Repeat
LED ON: Pause
Pressing the button after job completion
will start repetition
6. Button: Stop
