7.4.3 Connecting a Trotec exhaust system
CAUTION
Make sure that the mains voltage matches the voltage required by the exhaust system.
Connecting:
1. Plug in the mains cable of your exhaust system into the mains socket.
2. Plug the ends of the exhaust hose into the exhaust nozzle that is intended for this purpose on the
exhaust system and on the laser. The position of the connector depends on the type of the
exhaust system.
3. When using an original Trotec exhaust system, also connect this, using the exhaust connection
cable included, to the exhaust cable connection on the laser.
Also follow the operation and maintenance instructions in the Operation Manual of the exhaust
system.

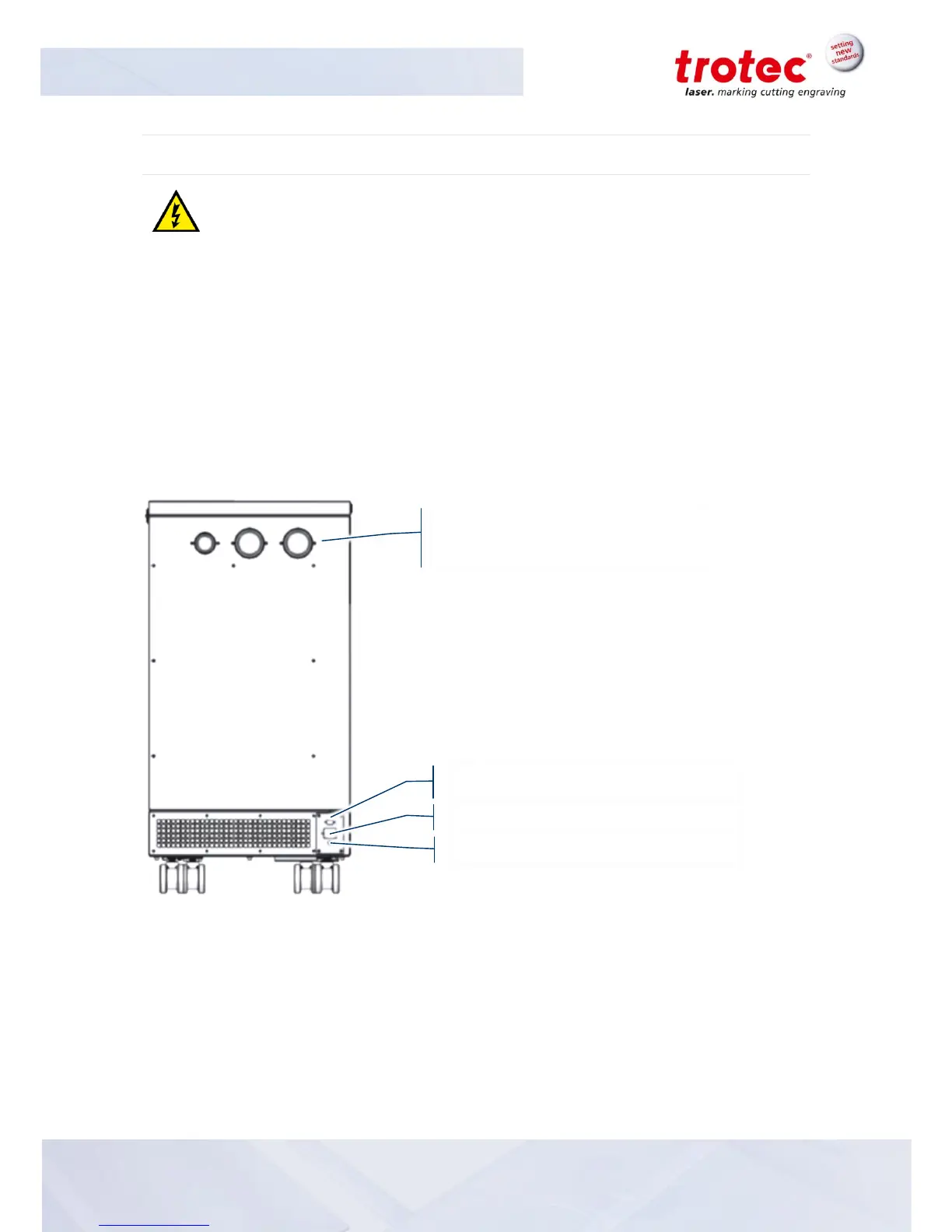

Intake connector for exhaust hose
Connector for exhaust connection cable
(3)
Mains cable to main socket
(3)
Safety switch
(3)
