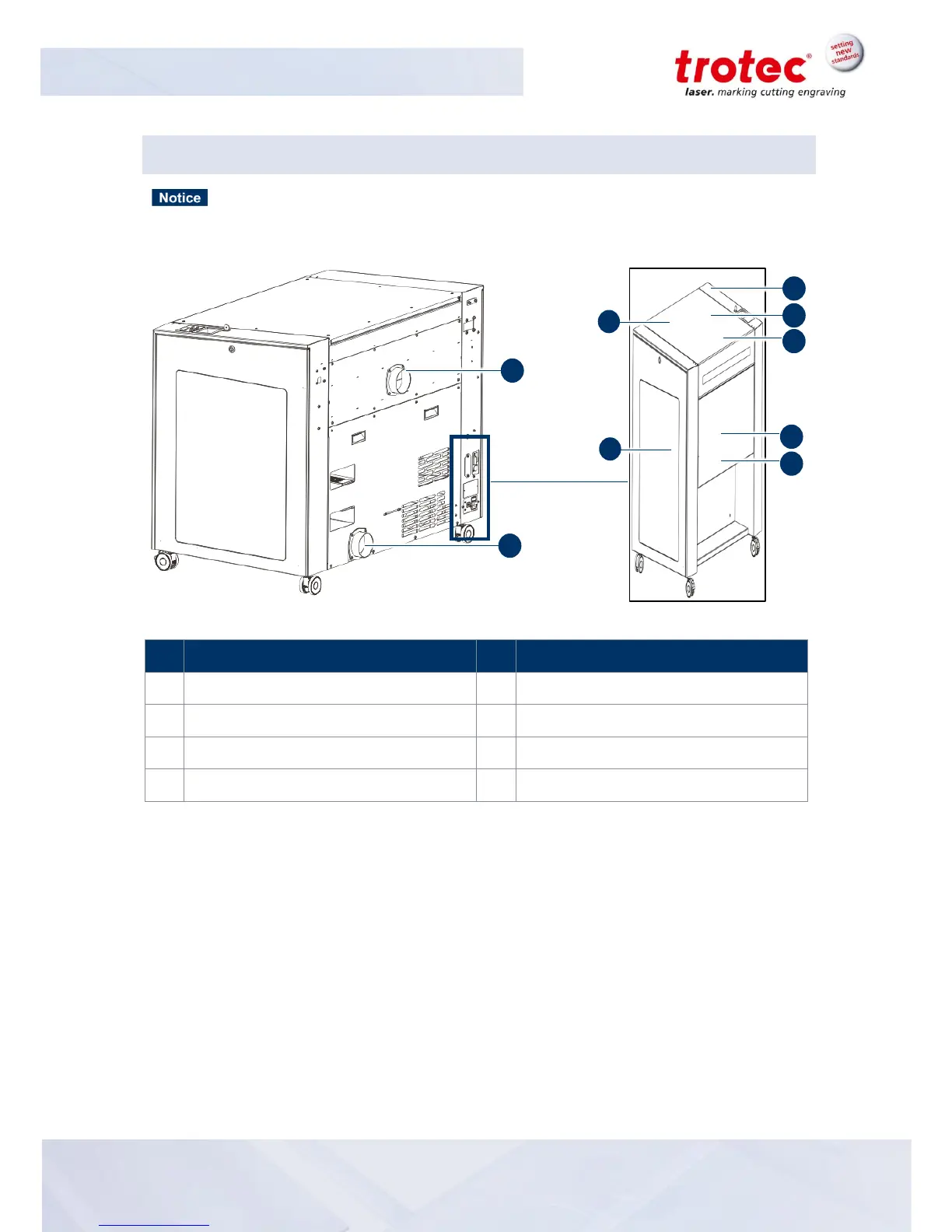

7.4 Connections
Install the connections exactly in the order described, otherwise electrostatic charging
can damage your computer and/or the electronics of the laser system.
No
Description
No
Description
1
USB port for PC
5
Main socket
2
RS 232 port for PC
6
Fuse
3
Connector for exhaust connection cable
7
JobControl
®
Vision connector
4
Main switch
8
Exhaust connection
1
2
3
4
5
6
7
8
