28 OVEN SYSTEMS
High-Voltage Transformers
The high-voltage transformers are ferro-resonant,
which limits faulty currents and minimizes magnetron
power changes due to input voltage changes. The high-
voltage transformers supply the high voltage for the
voltage doubler circuit. They are controlled via the
K2 relay.
Wiring the High-Voltage Transformers
DANGER: Never attempt to wire or
measure the secondary voltage values of the
high-voltage transformers. Lethal voltage
will be present.
The proper reinstallation of a high-voltage transformer
is critical. Upon removing a high-voltage transformer,
make sure to note where each wire was installed. Refer
to the oven schematic (page 48 for Encore and page 62
for Encore 2) for wiring detail.
As shown in the schematic, transformers are installed
mirror opposite and wired
180
º
out-of-phase. It is
essential for longevity that the high-voltage trans-
formers remain 180
º
out-of-phase. This can be checked
by placing a volt meter across terminals
T1-1 and T2-1
(primary voltage)
.
With the microwave system energized, the volt meter
will read
the incoming voltage (different readings for
different electrical installations).
If the meter reads 0
VAC
, the high-voltage transformers are most likely
wired in-phase (incorrectly). As a last check, energize
the microwave system and verify the voltages between
the taps on each high-voltage transformer.
The wiring issue must be corrected prior to returning
the oven to service, as the voltages must be:
-
: 208 VAC between 1 & 2 and
240 between 1 & 3.
- : 230 VAC
NOTE: The orange wire always goes to terminal 3 on
US models
.
Testing a Filament or High-Voltage Transformer
DANGER: Never attempt to measure the
secondary voltage values of the HV
transformers. Lethal voltage will be present.
1. Disconnect the AC power source and discharge
the high-voltage capacitors.
2. Disconnect all the wires in question going to and
from the transformer.
3. Use an ohmmeter to check the resistance of the
primary and secondary winding. Refer to the table
on page 29 to determine if the transformer is OK. If
the resistance is different than the values provided in
the table, replace the transformer.
High-Voltage Diodes
The high-voltage diode (Figure 40) is assembled by
connecting several 1000-1500 volt semi-conductor
diodes in a series to increase the reverse voltage
capability. In the circuit, the high-voltage diode
conducts to prevent the filament voltage from
becoming positive, thus as the high-voltage winding
of the transformer goes to a peak of 2400 volts, the
high-voltage capacitor is charged to 2400 volts.
When the high-voltage winding starts to go toward
negative, the high-voltage diode becomes non-
conducting with the charged high-voltage capacitor
in series with the high-voltage winding. When the
transformer gets to its negative peak of -2400 volts,
the voltage applied to the anode body of the magnetron
through the ground path of the oven is -4500 volts.
The high-voltage diodes are rated at 16 kVDC.

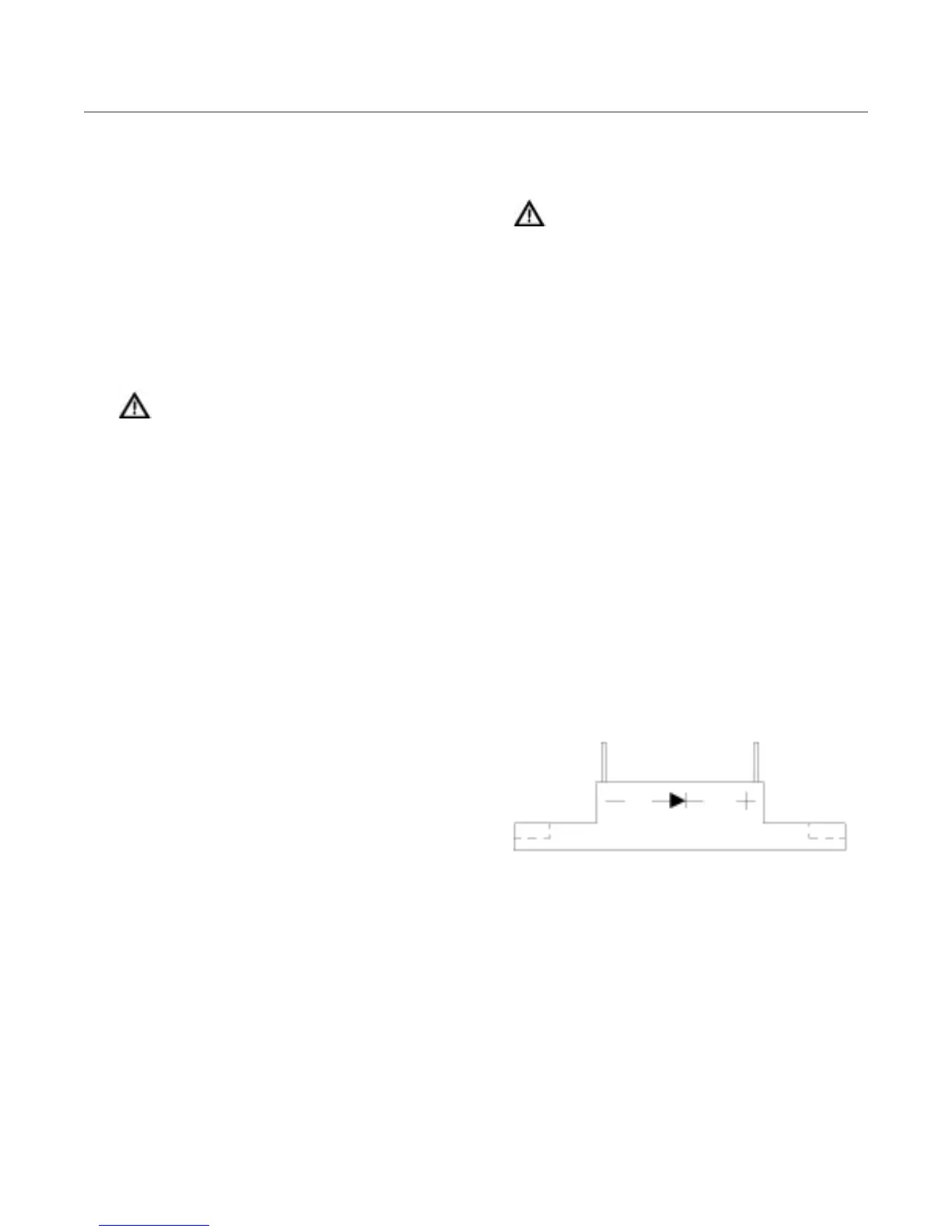

Figure 40: High Voltage Diode
