TurboChef ENCORE Service Manual

61
ENCORE 2 OVEN SCHEMATIC AND WIRE HARNESSES
Item Description Item Part Number
Relay (K1 - Filament) 101273
Relay (K2 - Anode) 101273
Relay (K3 - Monitor) 101273
Relay (K6 - Voltage) 101272
Relay (K7 - All Cooling Fans) 101273
For more detail, see pages A-30 and A-31
in the Appendix.
Encore 2 Oven Schematic and Wire Harnesses
This section provides an overall wiring schematic for the Encore oven. It also provides detailed drawings
of each wire harness with labeled connectors.
The following drawings are provided:
- Relay Schematic (below)
- Oven Schematic (page 62)
- Heater (page 64)
- High Voltage Microwave Circuit 1 and 2 (page 66)
- Low Voltage (page 66)
- Line Voltage (pages 68-71)
- Cooling Fans (page 72)

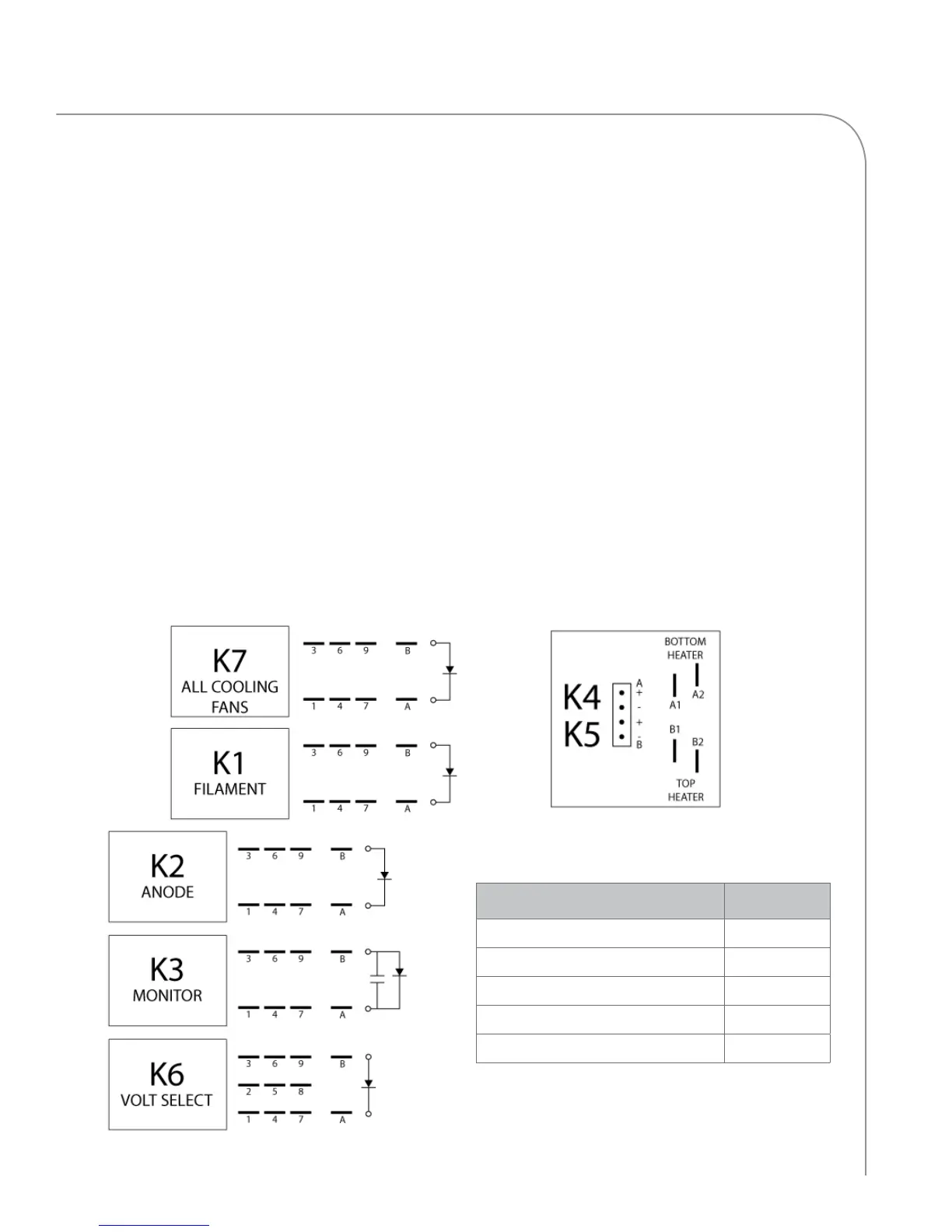

Relay Schematic

TurboChef ENCORE Specifications

General

Model	ENCORE
Control Type	Touchscreen
Ventilation	Ventless
Exterior Finish	Stainless Steel
Wattage	3600 W
Category	Oven
Cooking Technology	Microwave
Power Requirements	208-240V, 60Hz
Cavity Volume	1.0 cu ft
Temperature Range	500°F
