47
ENCORE OVEN SCHEMATIC AND WIRE HARNESSES
Item Description Item Part Number
Relay (K1 - Filament) 101273
Relay (K2 - Anode) 101273
Relay (K3 - Monitor) 101273
Relay (K6 - Voltage) 101272
Relay (K7 - Magnetron Cooling Fan) 101274
Relay (K8 - EC Fan) 101274
For more detail, see pages A-14 and A-15
in the Appendix.
Encore Oven Schematic and Wire Harnesses
This section provides an overall wiring schematic for the Encore oven. It also provides detailed drawings
of each wire harness with labeled connectors.
The following drawings are provided:
- Relay Schematic (below)
- Oven Schematic (page 48)
- High Voltage Microwave Circuit 1 and 2 (page 50)
- Low Voltage (page 52)
- Heater (page 52)
- Cooling Fans (page 54)
- Line Voltage (pages 56-59)

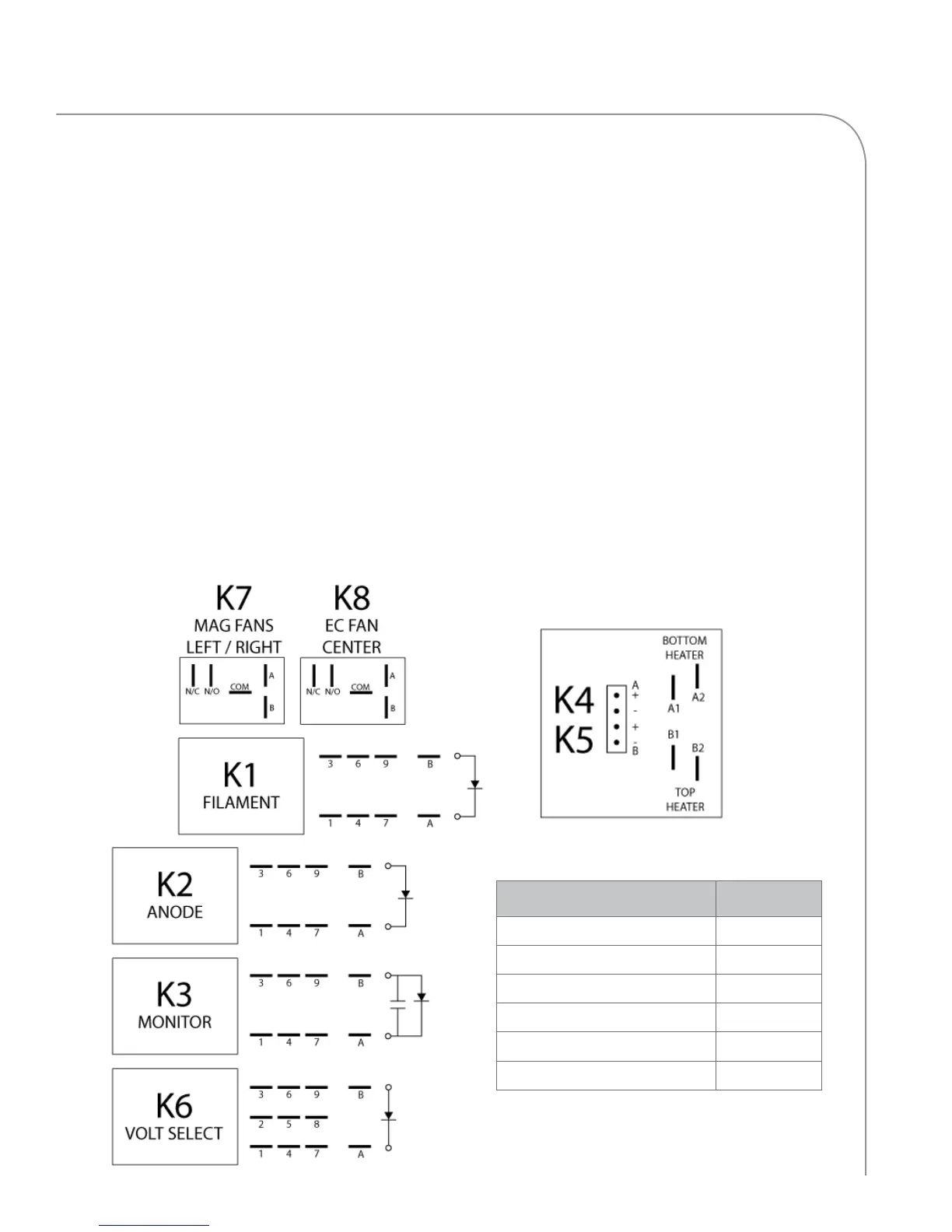

Relay Schematic
To Next Page
