SPECIFICATIONS AND INSTALLATION
Installing the Oven
1. Prepare a surface capable of supporting
190 lb. (86 kg) or 380 lb. (172 kg) if stacking.
The surface must be this deep:
• Encore:30.2”(767mm)
• Encore2:27.45”(697mm)
2. If installing onto an oven cart:
a. Ensure the oven cart casters are locked.
b. Ensure the oven legs are removed.
c. Drilling additional holes in the counter
surface/cart for stability is required if the
existing holes in the cart/surface do not
align with the leg holes of the oven. For
details, contact customer support at
800.90TURBO or +1 214.379.6000.
3. Position one or more persons at the front and
back of the oven.
4. Place hands under the oven and lift.
5. Place the oven on the prepared surface,
ensuring no edges are hanging off the sides.
6. If stacking two ovens:
a. See page 1 for dimensions.
b. Install the stacking bracket (part number
ENC-3001) to the lower oven.
NOTE: If stacking an Encore and Encore 2,
the Encore oven must be placed on the bottom.
c. Place the upper oven on top of the lower
oven.
d. Secure the bracket to the top oven.
7. Ensure the oven rack is properly installed
(attached to the bottom jetplate).
8. Plug in the oven.
NOTE: The oven is primarily serviced through
its sides and top. Shelving installed directly over
the unit may delay servicing. The owner will be
responsible for paying service costs for added time
spent clearing access to the oven.
Installation Near Open Heat Source
When placing a TurboChef oven near an open
heat source (Figure 2 below), strictly adhere to the
following:
- If the oven is being placed near a grill or stove,
a divider must exist between the oven and the
open heat source, with a minimum of 6”
(152 mm) between the oven and the divider.
- If the oven is being placed near a fryer, a
divider must exist between the oven and fryer,
with a minimum of 12” (305 mm) between
the oven and the divider.
- The height of the divider must be greater than
or equal to the height of the oven (see page 1).
- Verify the oven location has a minimum 5”
(127 mm) clearance on top and a minimum 2”
(51 mm) clearance on each side.

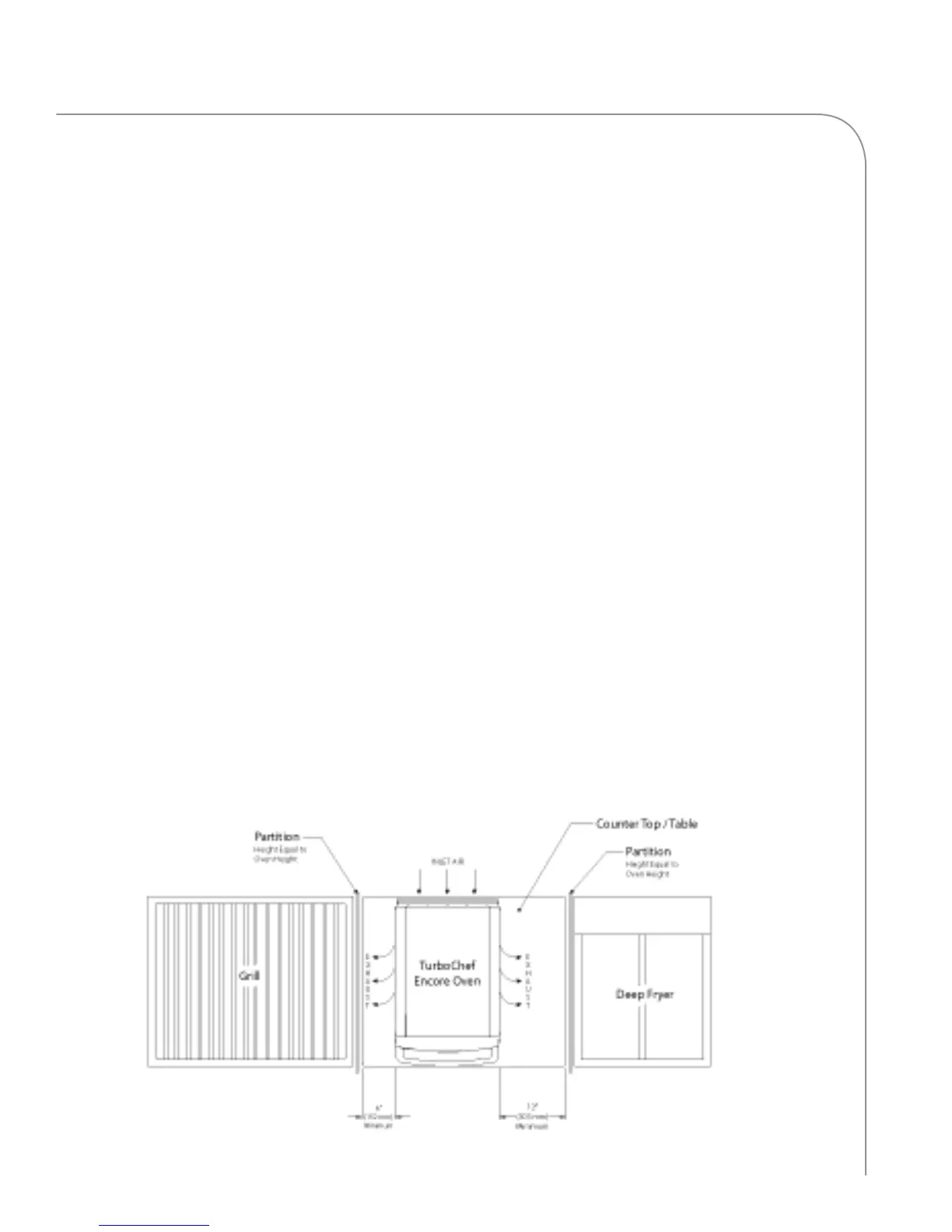

Figure 2: Installation Near Open Heat Source
