SERVICE WORK ONLY TO BE CARRIED OUT BY QUALIFIED PERSONS
Instruction Sheet for the Assembly of the Base Stand for
the Turbofan Series Ovens
Suitable for the following models:
Stand SK23 for E22 / E23 Ovens. Stand SK2731U for E27 / E28 / E31 Ovens.
Stand SK32 for E32 / G32 Ovens. Stand SK2731N for E27 / E28 / E31 Ovens.
1
20 January 2011
Part No 234246-3
Unpacking and Assembly:
Check that the kit includes the correct parts and quantities for the stand purchased as listed overleaf.

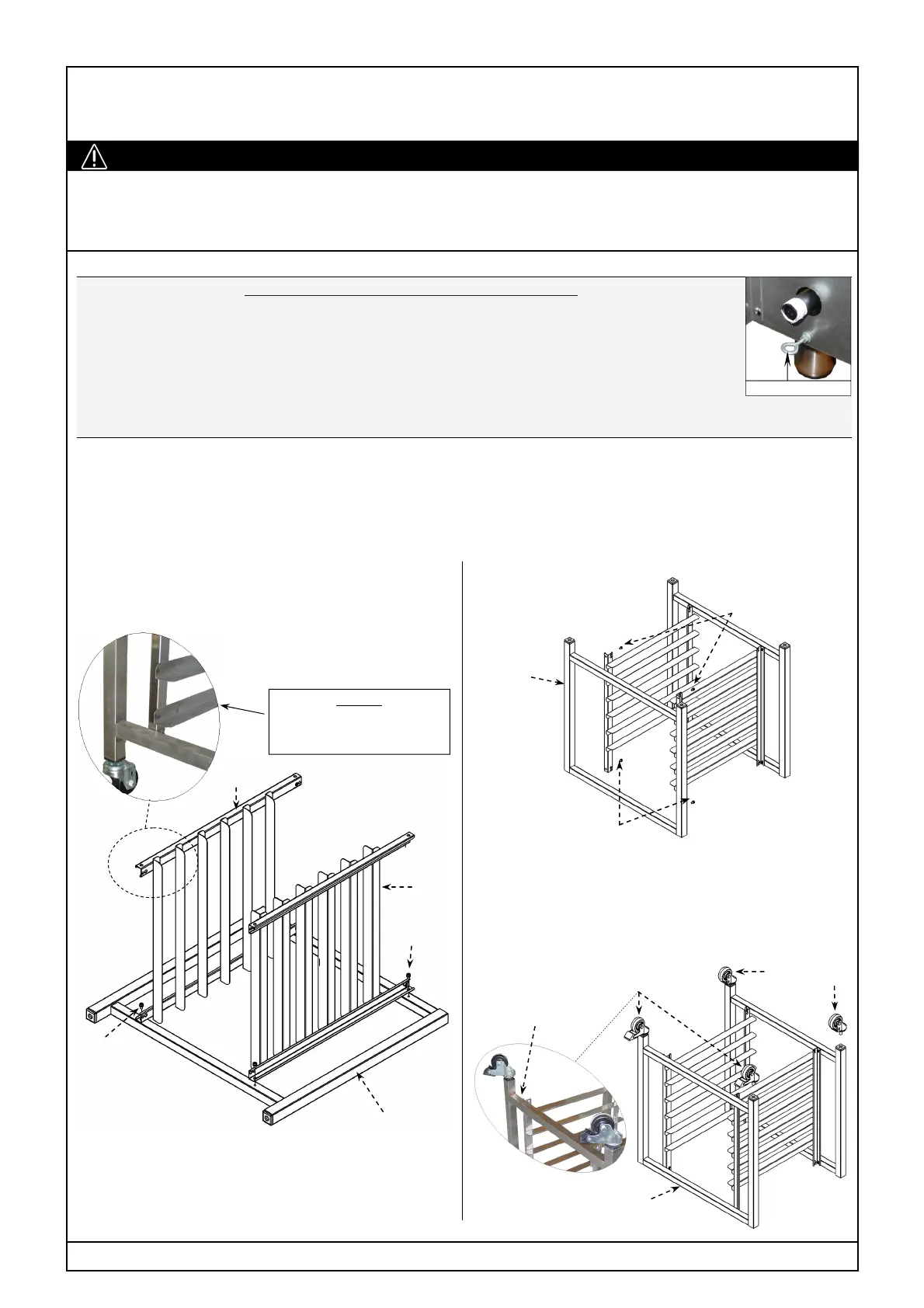

1. Place Frame (A) on flat surface and fit Shelf Runners
(B) to Frame with 4 Screws (E). Only loosely tighten all
screws until Top Plates (C) are fitted.
2. Turn stand upside down and fit second Frame (A) and
attach to Shelf Runners (B), secure with 4 Screws (E).
Ensure Shelf Runners (B) are fitted correctly.
(A)
(G)
(F)
(E)
(B)
(E)
(E)
(A)
(A)
(F)
(E)
(B)
T
o
p
o
f
S
t
a
n
d
Correct
Position for Shelf Runners
(‘L’ Shaped) when Stand is sat
on castors.
3. Fit Castors (F) to one Frame (A). Fit Castors (G) to
second Frame (A) and tighten hand tight. Ensure
both Locking Castors are fitted to the same
Frame.
Base of Stand
Top of Stand
B
a
s
e
o
f
S
t
a
n
d
Frame.
Important - For G32 Appliances Only:
For G32 appliances installed on castors (on base stand, double stacked or on proofer), the appliance is
to be fitted with a restraint at the location provided below the gas connection point.
Adequate means must be provided to limit the movement of the appliance without depending on the
gas connector and the quick-disconnect device or its associated piping to limit the appliance movement.
This installation shall comply with the applicable local codes / standards, e.g. for USA / Canada Only:-
ANSI Z21.69 • CSA 6.16 - Connectors f
or Moveable Gas Appliances.
ANSI Z21.41 • CSA 6.9, (2) - Quick Disconnect Devices for use with Gas Fuel.
Restraining Anchor Point
To Next Page
