Instruction Sheet for the Assembly of the Base Stand for the Turbofan Series Ovens.
2
20 January 2011
Part No 234246-2

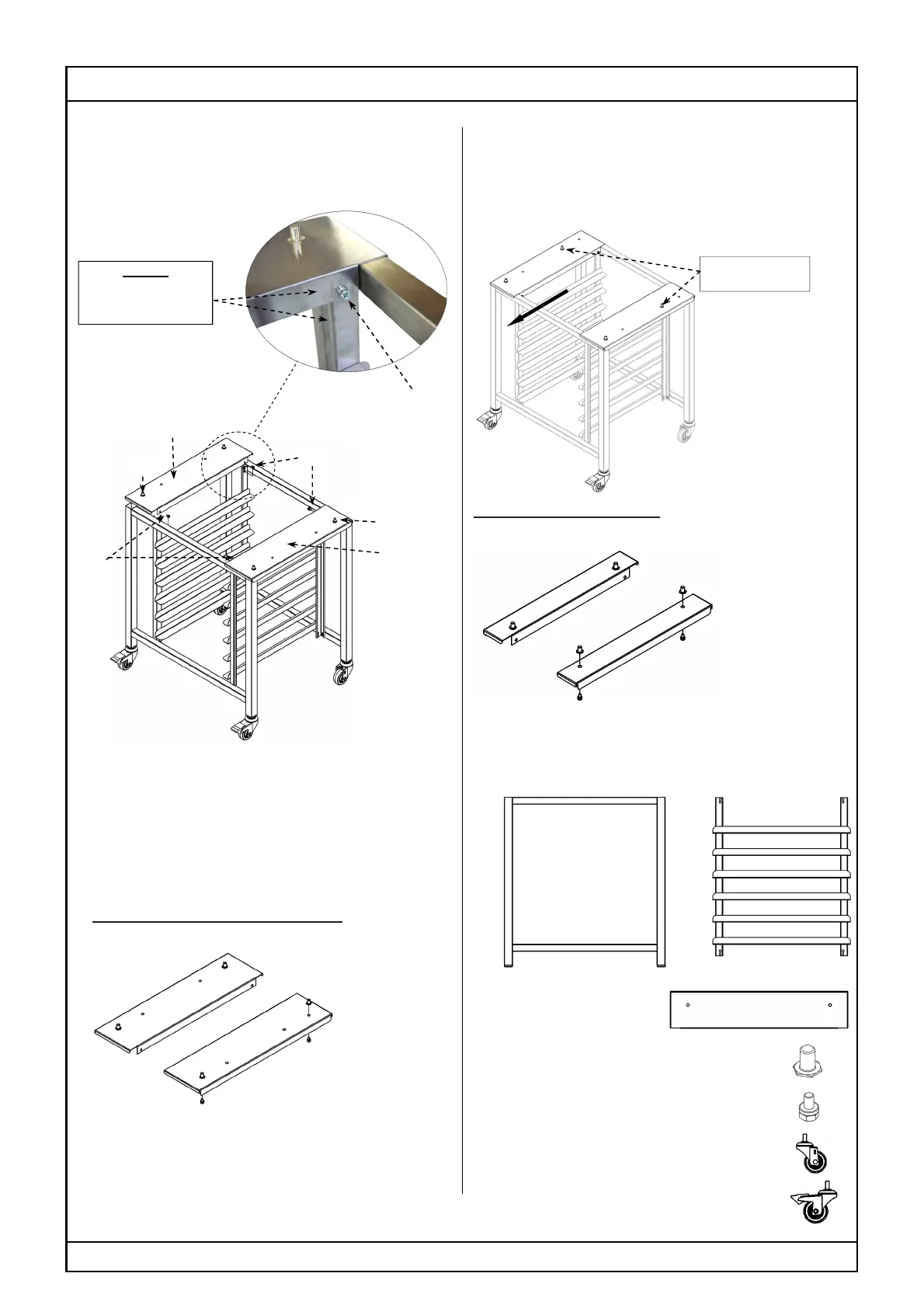

Pin Fitting Locations:
4. Fit Top Plates (C) with 4 Screws (E). Fit Oven Location
Pins (D) with 4 Screws (E). Refer ‘Pin Fitting Locations’
figures overleaf for correct pin location for oven type.
Tighten all screws securely.
(C)
For Stands SK2731U / SK2731N
Pin Location for E27 / E28 Ovens
Pin Location for E31 Ovens Only
For Stands SK23 / SK32
Pin Location for E22 / E23 & G32 / E32 Ovens
Frame (A) - Qty 2.
Shelf Runners (B) - Qty 2.
Top Plate (C) - Qty 2.
Stand Oven Locating Pin (D) - Qty 4.
Screw M6 x12 (E) - Qty 17 (1 spare).
Castor 75 mm (F) - Qty 2.
Castor Braked 75 mm (G) - Qty 2.
F
r
o
n
t
o
f
S
t
a
n
d
(D)
(D)
(E)
NOTE: Position of
Rear Locating Pins.
NOTE: For E31 Ovens Only, pin location should be as
shown below with Locking Castors at front of
stand and Rear Locating Pins fitted in holes
nearest front of stand.
(E)
Correct
Position with Shelf
Runner upright sitting
behind Top Plate.
Note position
of Screw (E).
(C)
Parts List:
To Next Page
