turbofan 30D Series Service Manual

Replacement Parts List
20

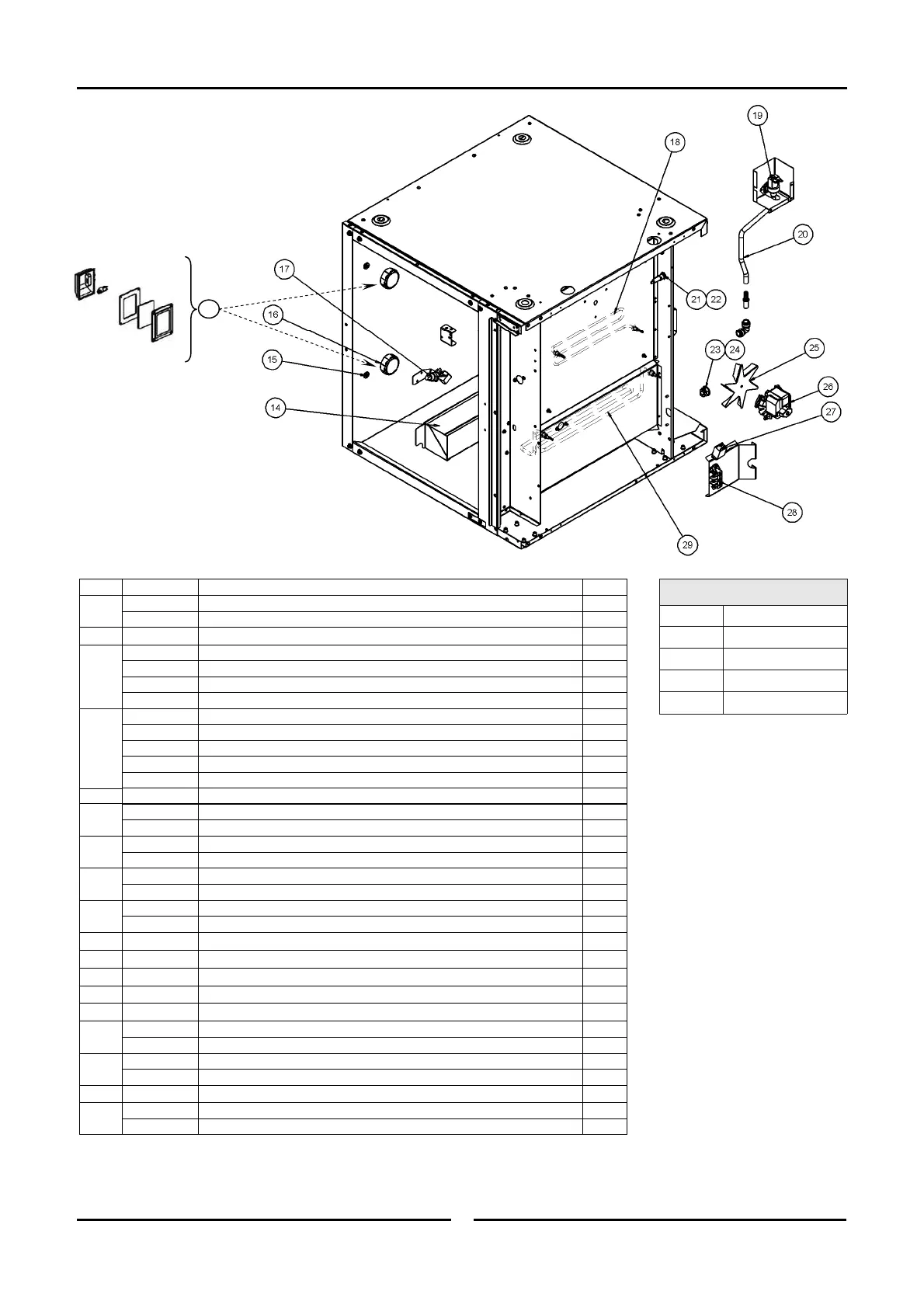

Main Components
ITEM PART No. DESCRIPTION *RPL
14
M234318
WATER TANK WA (P8 / P12).
D
M236668
WATER TANK WA (P10).
D
15
M025566
HANGER STUD. D
16
M233863
OVEN LAMP ASSY -MUST ORDER M233884 - (P8 / P12).
A
M233115
OVEN LAMP LENS - (P8 / P12).
B
M233884
LAMP BULB G9 25W HALOGEN 120V - (P8 / P12).
A
M233883
OVEN LAMP SEAL - (P8 / P12).
B
16A
M233884
LAMP BULB G9 25W HALOGEN 120V - (P10).
A
M236214
OVEN LAMP HOLDER - (P10).
A
M021352
OVEN LAMP GLASS - (P10).
B
M021353
LAMP FRAME - (P10).
A
M021354
LAMP GASKET - (P10).
B
17
M233528
FLOAT SWITCH - CAP WIRED. B
18
M234190
DRY ELEMENT 120V 700W (P8 / P10).
B
M234081
DRY ELEMENT 120V 1200W (P12).
B
19
M234349
WATER SOLENOID 90° OUTLET 120V.
B
20
M234668
WATER TUBE 3/8" ID BLUE 640mm (P12).
D
M234669
WATER TUBE 3/8" ID BLUE 490mm (P8 / P10).
D
Not
M025922
ADAPTOR BRASS ¾” BSP. (USA / CANADA ONLY).
D
M021527
WASHER RUBBER. (USA / CANADA ONLY).
A
21
M234803
FUSE 10A Ø6.3 X 32mm. B
22
M234802
FUSE HOLDER 16A 250V. D
23
M233870
CABLE CLAMP PA107. D
24
M233871
SCREW 3.5x15 Hi-Lo. D
25
M022042
FAN BLADE. D
26
M025387K
MOTOR A67-3038LH-47 (120V).
B
27
M021535
RELAY 110V.
C
28
M026160
TERMINAL BLOCK FV110B. C
29
M234079
WET ELEMENT 120V 650W.
B
16A
*Recommended Parts Level
RPL Number of Units In-Service
A+B 5-10
A+B+C 10-50
A 1-5
A+B+C+D 50+
