Tyco Galaxy SC Controller - Figure 3-11: Connections from Galaxy Data Switch to MCS Controller Remote Interface Pack

Tyco Electronics Galaxy SC Controller J85501F-1
3 - 44 Installation Issue 13 February 2001

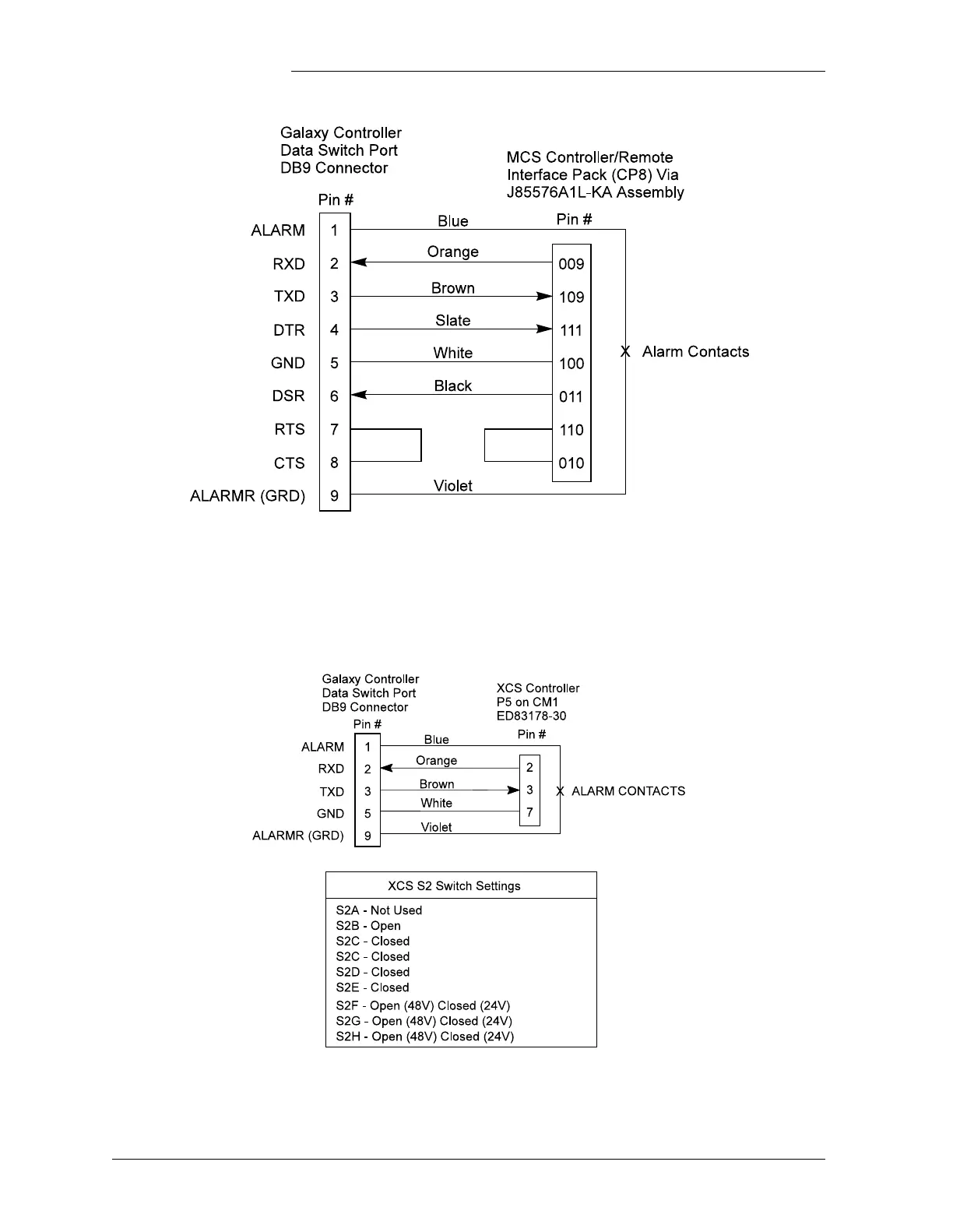

Figure 3-11: Connections from Galaxy Data Switch
to MCS Controller Remote Interface Pack
Figure 3-12: Connections from Galaxy Data Switch
to XCS Controller
