Tyco Electronics Galaxy SC Controller J85501F-1
3 - 50 Installation Issue 13 February 2001
ETR/ETRR: A closure on this pair causes the controller to Terminate
(TR) all rectifiers. When this circuit again opens, the sequencing of the
plant rectifiers begins in the manner configured in software. This
ETR/ETRR signal may be obtained from auxillary contacts of the AC
Power Transfer device or may optionally come off of contacts of an AC
relay sensing the rectifier AC input bus.
RO/ROR: (Reserve Operation) A closure on this pair informs Galaxy
that the reserve AC generator is suppling the load and permits Galaxy to
hold rectifiers which have been so configured off line while this
condition exists. This feature is primarily designed for use at locations
where the reserve AC power source is not sufficiently sized to support
all the plant rectifiers.
Even without the Intelligent Control board, the Basic Galaxy can accept
ground signals onto TR1 to TR4 (BJT TB3-8 to -11) from an external
device to control sequencing of plant rectifiers in groups as follows:
TR1 G01, G02, G09, G10, G17, G18, G25, G26, G33, G34, G41,
G42, G49, G50, G57, G58
TR2 G03, G04, G11, G12, G19, G20, G27, G28, G35, G36, G43,
G44, G51, G52, G59, G60
TR3 G05, G06, G13, G14, G21, G22, G29, G30, G37, G38, G45,
G46, G53, G54, G61, G62
TR4 G07, G08, G15, G16, G23, G24, G31, G32, G37, G40, G47,
G48, G55, G56, G63, G64
Refer to Figures 3-5 and 3-15.

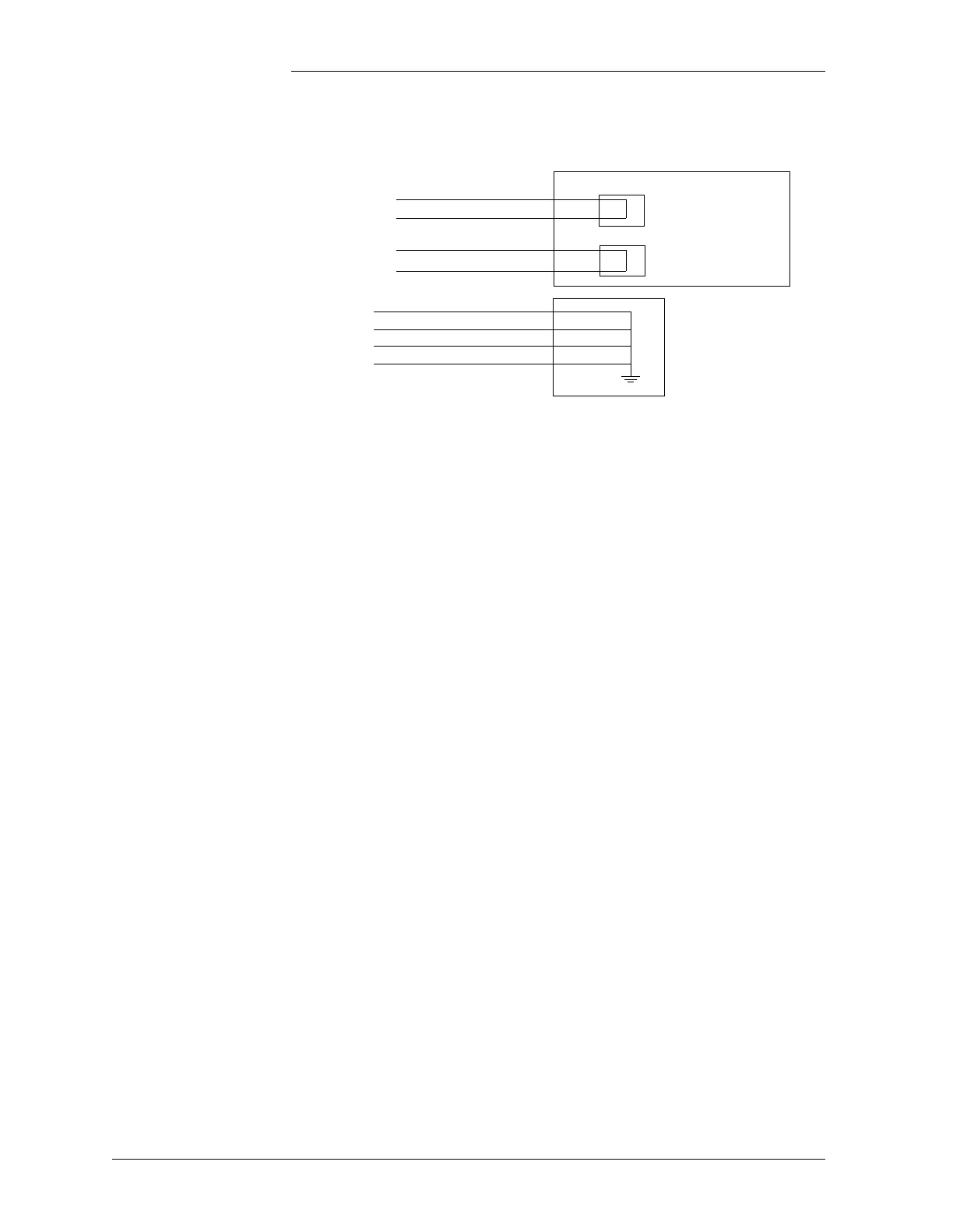

Figure 3-15: Wiring for Rectifier Sequencing
(TFLT=Tell to Float; TBST=Tell to Boost)
TR2
TR3
TR4
ROR
TR1
9
10
11
15
1
ETR
ETRR
Galaxy BJT
Alarm Board
RO
12
13
14
TB3 #
X
External
Rectifier
Sequencer
X
X
X
X
Closure with Essential
AC Bus Failure
Open with AC Available
to Rectifiers
Closure with Reserve
Generator On
External Transfer Signals
X
