Tyco Electronics Galaxy SC Controller J85501F-1
4 - 44 Configuration Issue 13 February 2001
EasyView
Configuration
Refer to Figure 4-2 for the drop down box showing the Configure menu
of EasyView. This menu contains all of the Galaxy SC software
configurations available through EasyView. The Configure menu
choices described below are those most important for the initial
configuration of Galaxy SC. Some selections, such as Data Switch or
Monitoring, will only be used if these additional Intelligent features
have been equipped. All possible selections will not be covered in this
manual, but help concerning any of the Configure selections may be
obtained by selecting the Help choice of the Main Menu or by pressing
<F1> at any time.

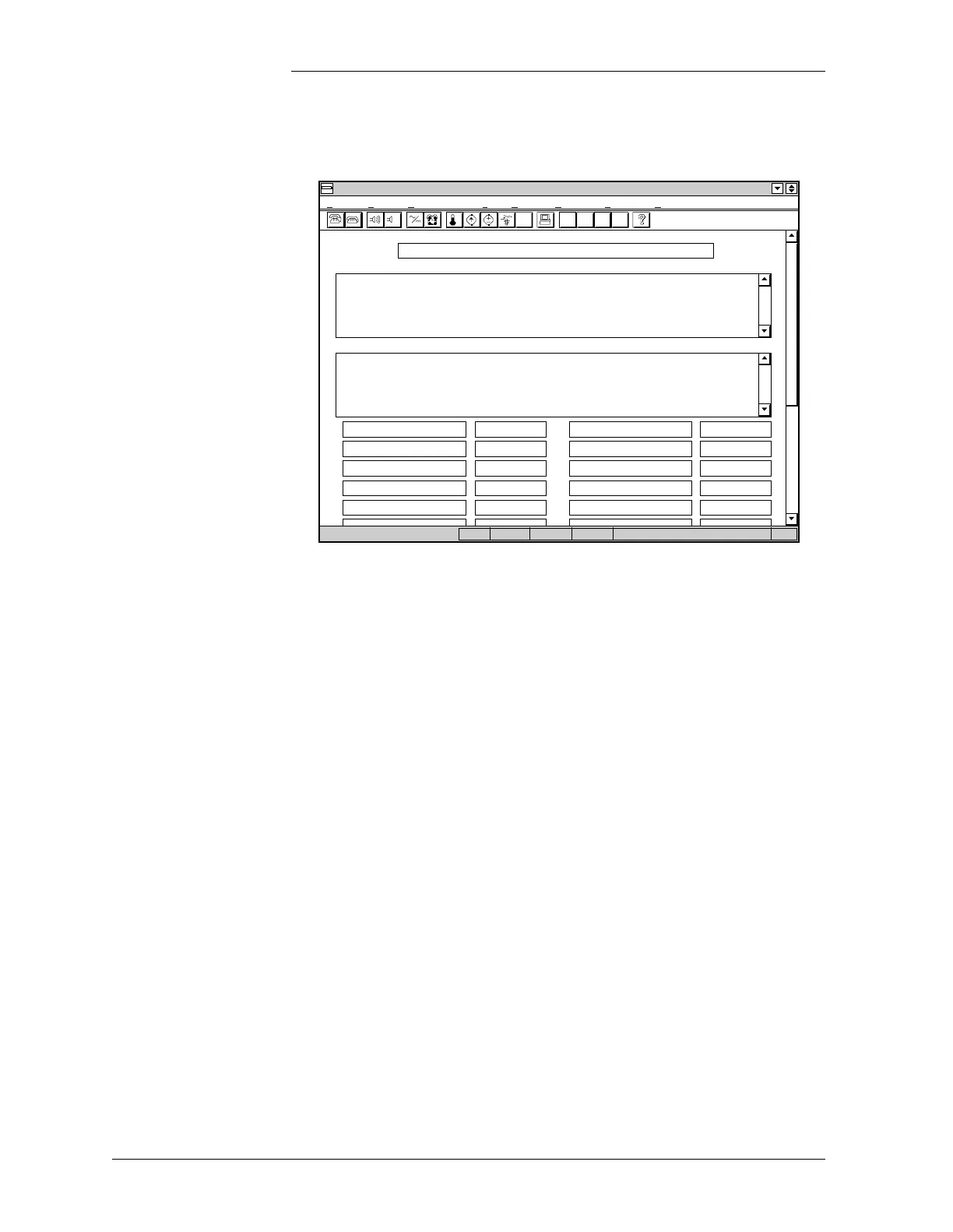

Figure 4-1: EasyView Main Screen
