Tyco Galaxy SC Controller User Manual

Tyco Electronics Galaxy SC Controller J85501F-1
Issue 13 February 2001 TL1 (Transaction Language 1) and X.25 Interface Appendix D - 7
PAD Setup The PAD is set up by typing a set of commands on the setup terminal,
to define the logical connection. This setup is dependent upon the
network administrator, and the existing PAD port usage. The following
symbols in the setup will be used for site-dependent parameters.
Substitute <PN>, port number, for the port number of the RS-232/485
converter. Valid port numbers are 2, 3, 4, and 5 and 19 for the user setup
port. The caret “^” character stands for the space character (depress
space bar).
The symbol <RETURN> denotes that the Return or Enter key is
pressed.
All commands and parameters are case insensitive.
The PAD should respond to all commands with the response “CMD
ACCEPTED,” except the “SET” and “PROF” commands, which have
no PAD response. PAD messages are described in Table D-4.

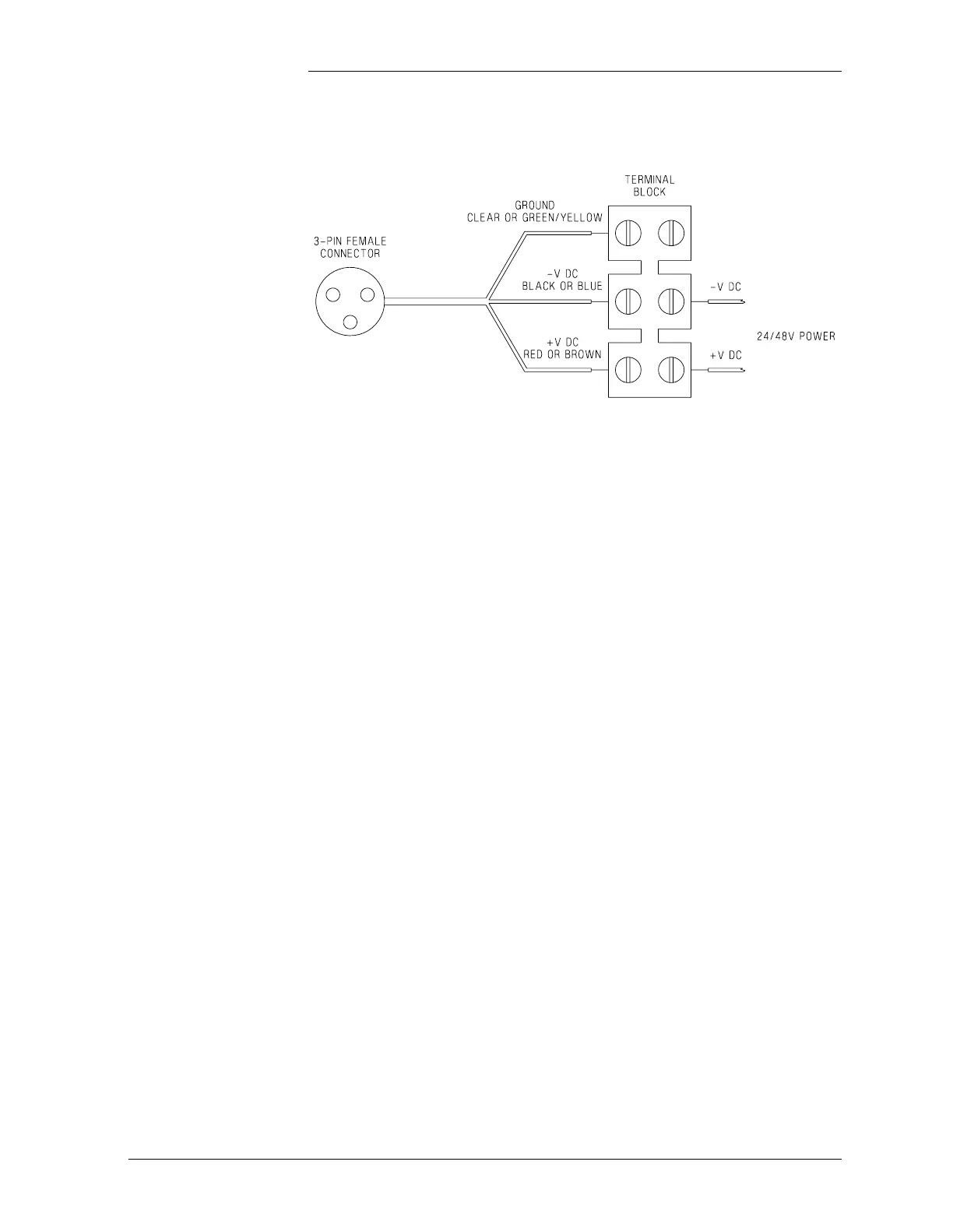

Figure D-5: PAD Power Cable Setup
