TYM T303HST User Manual

3) Forward and reverse arm assembly
(1)when assembling the forward and
reverse arm to pin ,be sure to apply
grease.
(2) Snap ring should be seated securely
in it’s groove with the press-
processed side turned towards the
outer side.
(3) Full grease after assembling the
nipple.
4) CAM COMP
(1) Install Ball bearing carefully so as not to damage
to them.
(2) Install the switch on the Pin.
(3) When assembling the cam comp to the pin ,be
sure to apply grease.
(4) Snap ring should be seated securely in it’s
groove with the press
-
processed side turned
Fig.5-19
groove with the press
-
processed side turned
towards the outer side
(5) Full grease after assembling the nipple.
(6) Be sure to check the spring has enough tension.
5-12

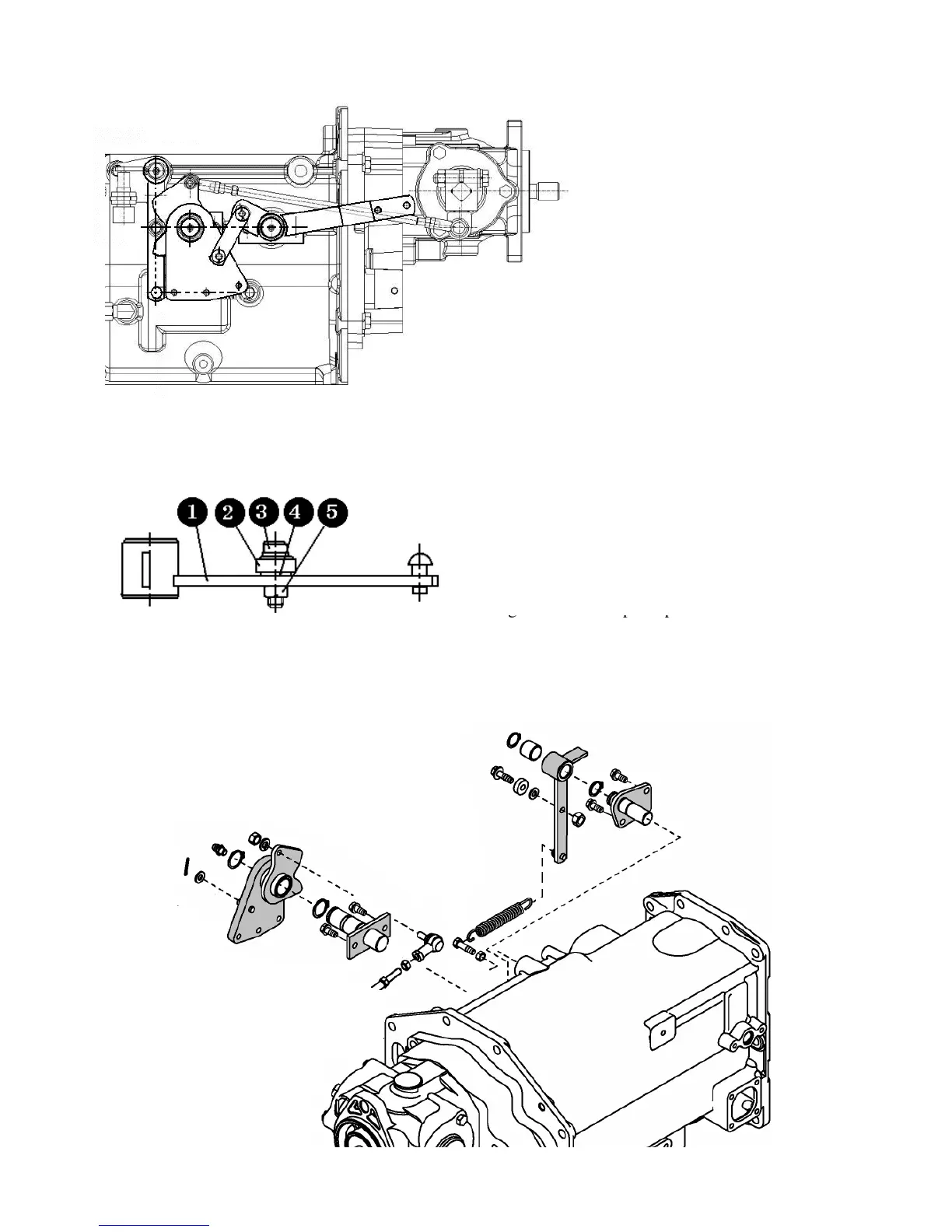

Fig.5-20
1.Arm comp 2.Bearing(608) 3. Bolt
4.Washer plain 5.Nut
