SECTION 4. REMOTE HYDRAULIC CONTROL
Maximum flow (ℓ/min) 26
Maximum pressure(bar) 25
Viscosity range
12 to 400 ㎟/s
Temperature range of the fluid -20 : BC to +80:BC
Environmental temperature -40: BC to +60:BC
Max. level of contamination of the fluid 19116 ISO4406
Internal leakage
3㎠/min at 100 bar
40: BC and 46 ㎟/s
1.Remote hydraulic control valve( OPTIONAL)
1.Remote Valve
2.Stay
3.Bolt
4.Bolt
5.Hose return
6.Adapter PF/90
7.Band
8.Adapter 9/16
-
UNF90
9-16
8.Adapter 9/16
-
UNF90
9.connector
10.O-ring
11.O-ring
12.Stay
13.Bolt
14.Pipe
15.Union
16.Pipe
17.Pipe
18.Lever
19.nut
20.Coupling
21.Lever
22.Bolt
23.Grip

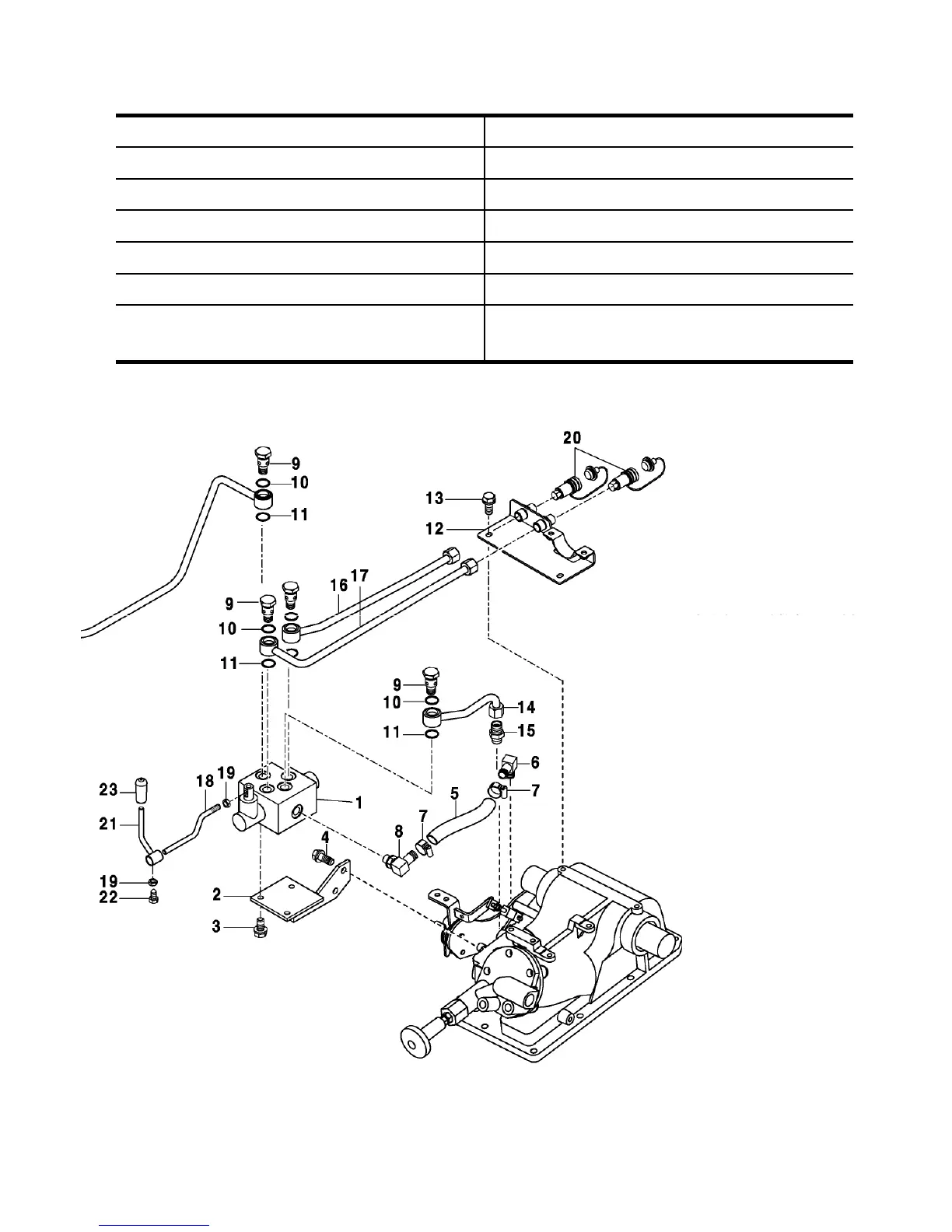

Fig. 9-32 Remote hydraulic pump
