2.SEPARATION OF THE ENGINE AND THE FRONT AXLE BRACKET
Parts which can be inspected during This
operation
-Air cleaner
-Radiator
-Power steering system
-Oil cooler
-Engine front part.
(1) Removal
1) Hold or support the engine with a crane or
stands.
2) Hold or support the front bracket or the axle
bracket in a manner that the part other than
the engine can be removed if required.
3) Remove the damper and Engine hood
5) Open the front grille.
6) Detach the head light wiring.
7) Remove the other wiring
8) Remove the inlet pipe from the air cleaner.
9) Remove the air cleaner.
Note:
Here the air cleaner can be removed as an
assembly.
10) Remove the upper hose,lower hose.and
drain hose from the radiator.
Note:
The radiator should be drained of the coolant
ahead of time.
11) Remove the fuel filter.
4) Disconnect the positive and negative battery
cables.

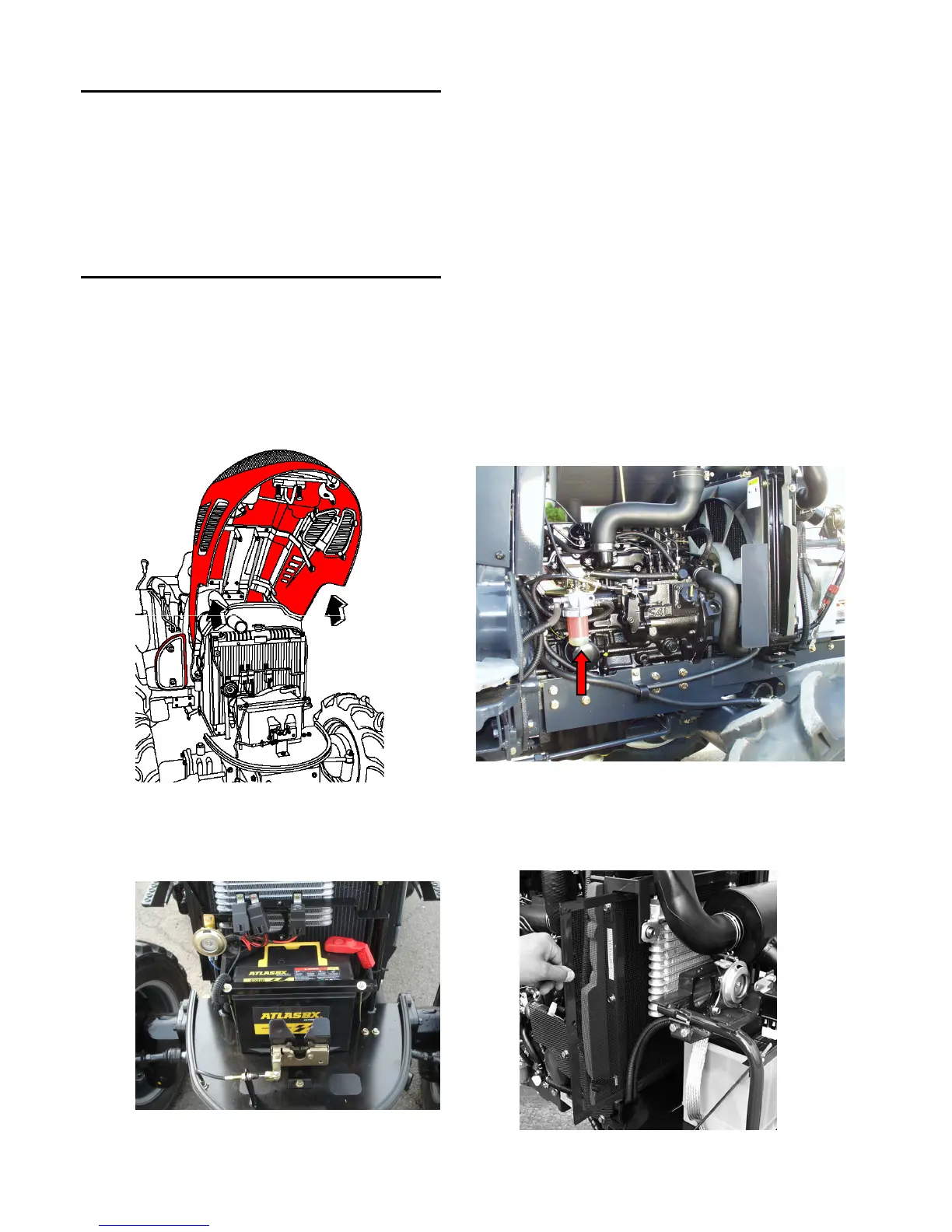

FIG.2-7 Wiring harness
FIG.2-8 Battery
Fig.2-9 Fuel filter
12) Remove the radiator and oil cooler from the
axle bracket
2-6
Fig.2-10 Oil cooler
Fuel filter
