TYM T303HST User Manual

3.FLOW-CONTROL VALVE(SLOW-RETURN CHECK VALVE)
3.1. GENERAL DESCRIPTION
This valve regulates the lowering speed of the lift by controlling the unloading flow from the lift
cylinder to the tank.
①Dust seal
②Snap ring
③Collar
④Body
⑤0-ring
⑥Adjust screw
⑦Back-up ring
⑧0-ring
⑨Stop ring
⑩Poppet
⑪Spring
⑫0-ring

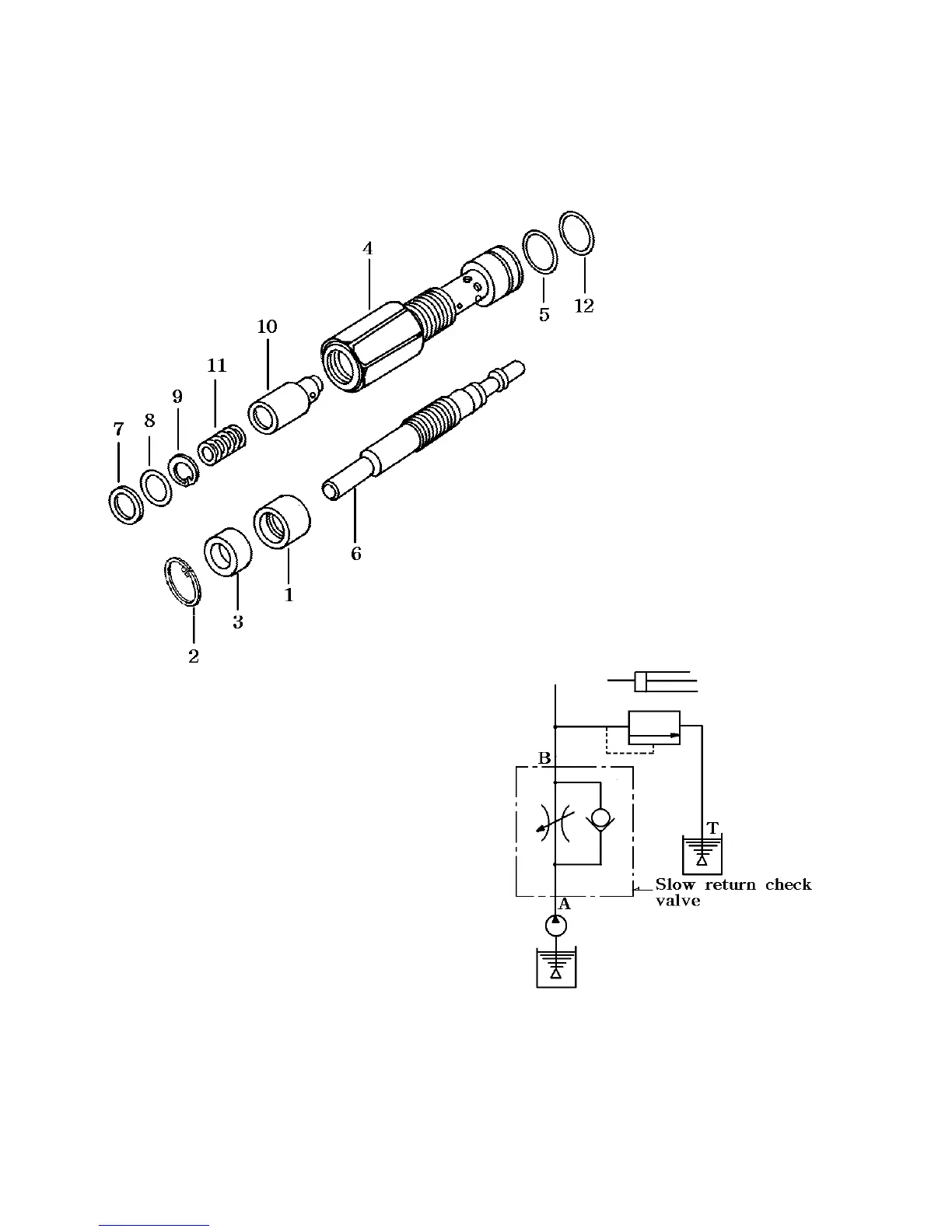

Fig. 9-6 Slow-return check valve Diagram
