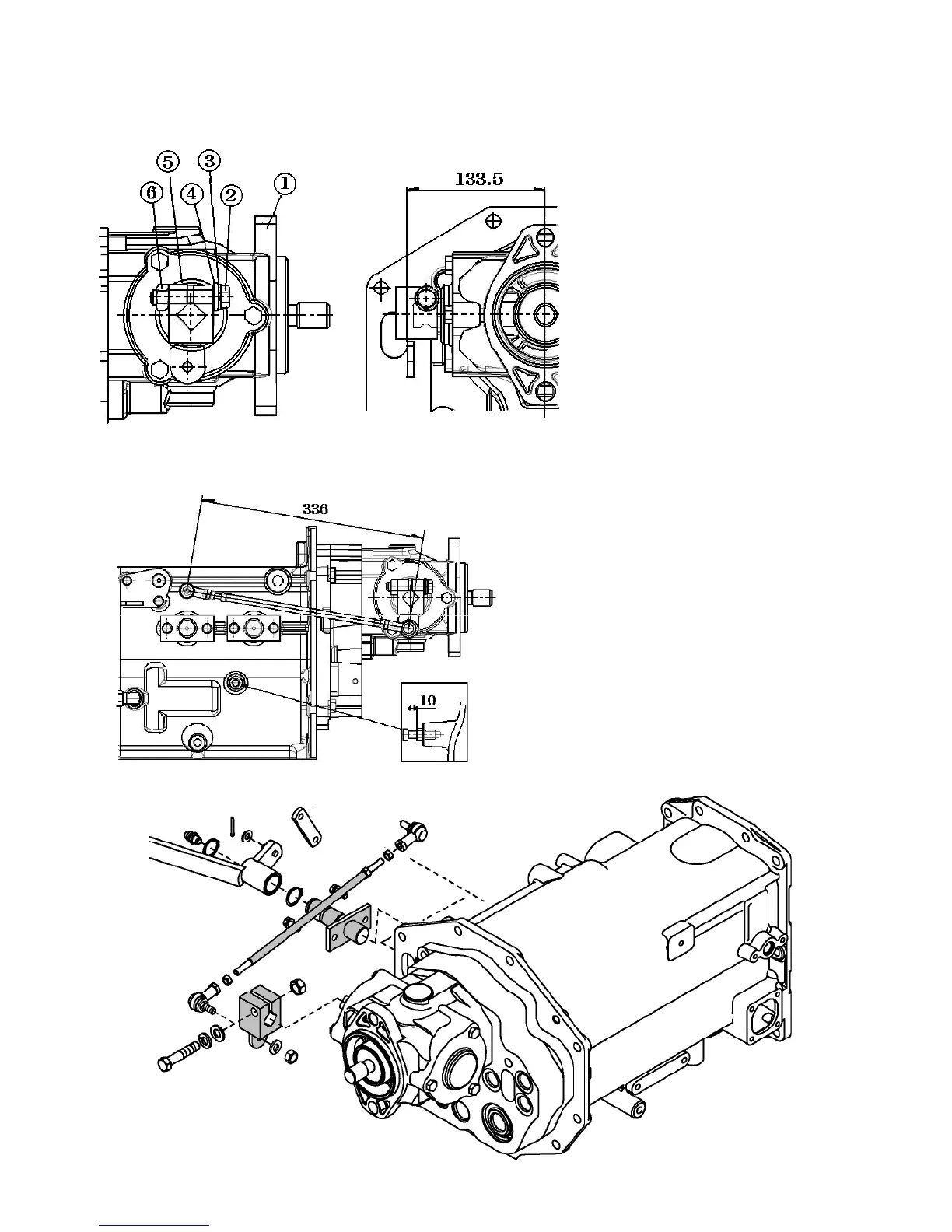

(4-1). Forward and reverse
1) HST holder comp
(1) When reassembling holder comp,
take care directions.
(2) After installing holder comp,be
sure not to skip the parts.
1.HST Unit 2.Bolt 3.Washer spring
4.Washer plain 5.Holder comp
6.Nut
2) ROD Assembly
Fig.5-17
(1) Install the pin on Mid transmission case.
(2)Assemble the bolts and Nuts on Mid
transmission case. Gap between bolt and nut is
10mm.
2) ROD Assembly
10mm.
(3) Elbow between Mid transmission case and
holder should be different direction.
(4) When assembling the Rod comp. It should go
through the hole.
Fig.5-18
5-11
HST holder comp and Rod assembly
