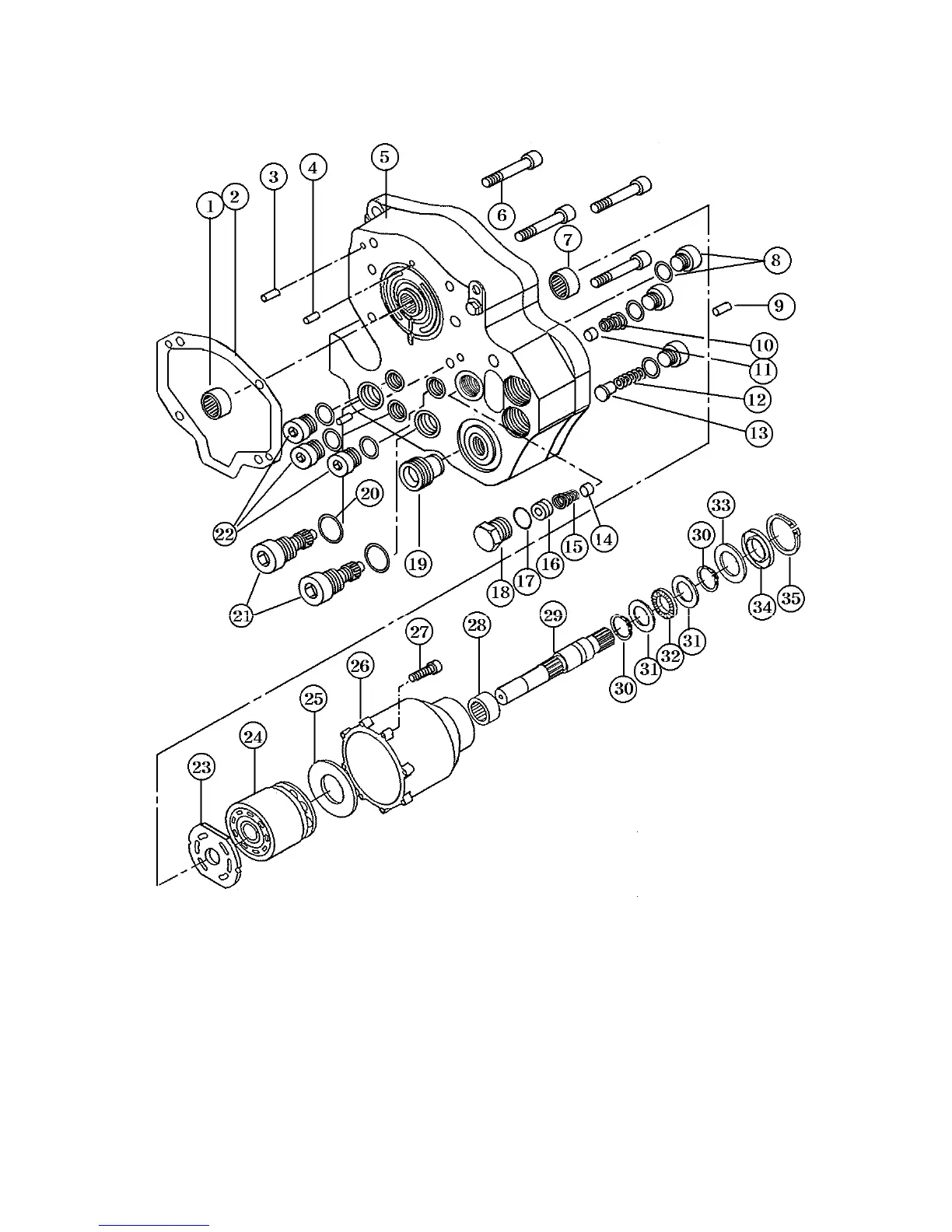

4. Transmission back plate and motor
1.Bearing 2.Gasket 3. Pin 4. Pin 5.back plate 6. Cap screw 7.Bearing
8.plug and O-ring 10.Spring 11. Poppet 12.Spring 13. Plunger 14.poppet
15.Spring 16.Shims 17. O-ring 18.Plug 19.Filter head 20. O-ring
21.Relief valves,Forward and reverse 22. Plugs 23. Valve plate 24. Rotating assembly
25. Cam washer 26.Motor housing 27. Cap screw 28.Bearing 29.Shaft
30.Snap ring(2) 31.Thrust Washer 32.Thrust bearing 33. Seal washer
35.Snap ring
4-6
