TYM T303HST User Manual

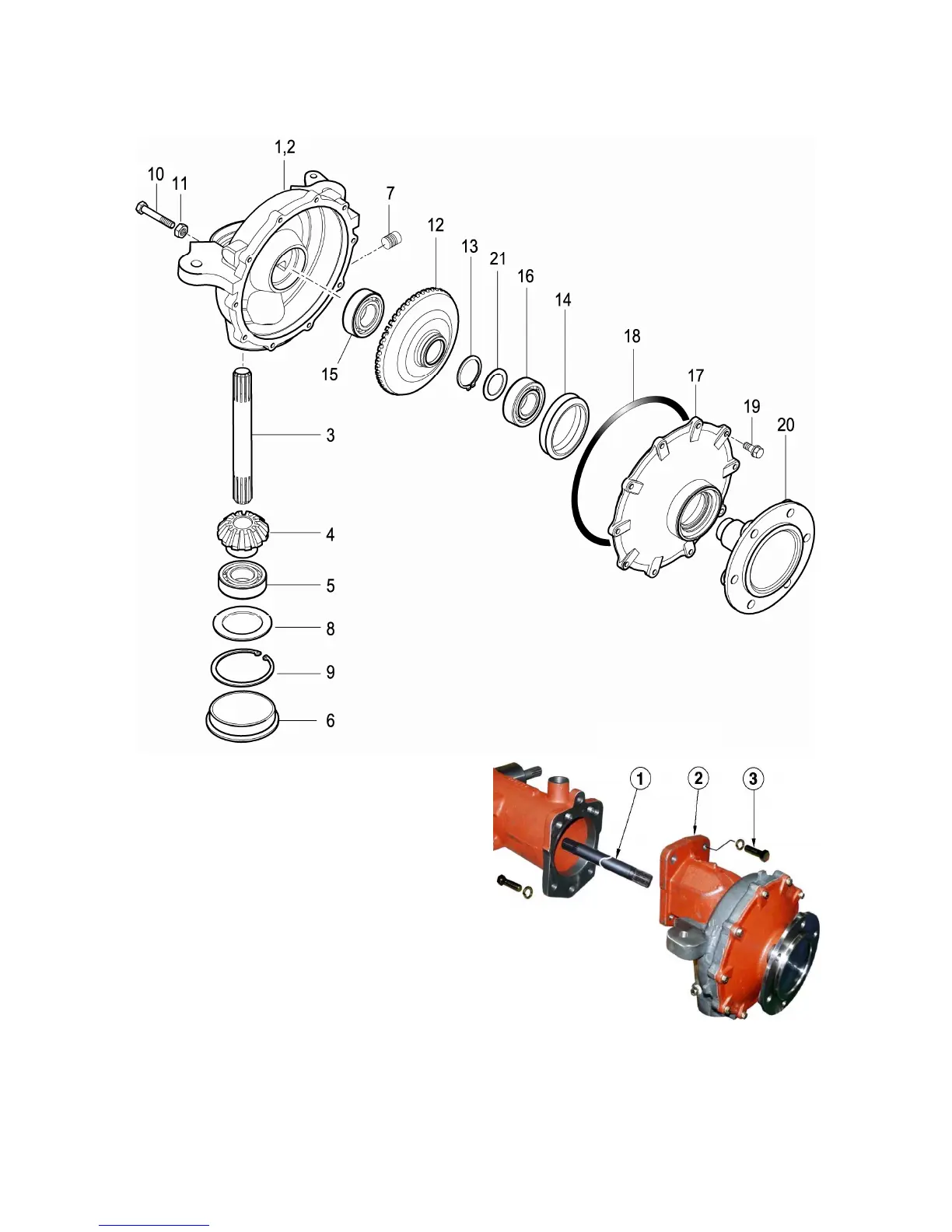

3-2. Front gear case 2.
10.Bolt
11.Nut.
12.Gear,Bevel 41
13.C-ring
14. Seal
15.Bearing,Ball/HL1
16.Bearing,Ball
17.Cover wheel shaft
18.O-ring
19.Bolt
20.Shaft,wheel
21.Washer,50X60X2
1.Case,LH Final Drive 8.
2 Case RH Final Drive (B)
3.Shaft
4.Gear Bevel 11
5.Bearing Ball
6-11
3.1 Disassembly
1) Drain oil from the final case by removing the
drain plug.
2) Remove the tie rod or the tie rod end.
3) Remove the final drive case clamping bolts and
take out the assembly of the wheel shaft,
4) Remove the wheel shaft cover clamping bolts
and cap (90)
Note: Discard the removed Cap(90) and install a
new cap(90) when reassembled,because this
cap is apt to be damaged when removed.
5) Detach the snap ring C from the bevel gear.
6) Extract the wheel shaft bearing together with
the bevel gear,using a bearing puller
Fig.6-20
5.Bearing Ball
6.Cap 90
7. Plug square
8.Shim,75X90X2
9.C-ring
Fig.6-19
