TYM T303HST - Filling Diagram and Capacity Table

No. Filling point Fillings Quantity Liter (gal.)
MODEL T303HST/T353HST
1 RADIATOR 50/50 : Ethylene Glycol/Water (L.L.C)
ASTM D4985 / D6210
7ℓ(1.85 US gal)
2 ENGINE API : CF-4 grades
Above:25°C(77°F)… SAE30 or 15W/40
0
°
C to 25
°
C(32
°
F to 77
°
F)…
5 ℓ (1.32 US gal)

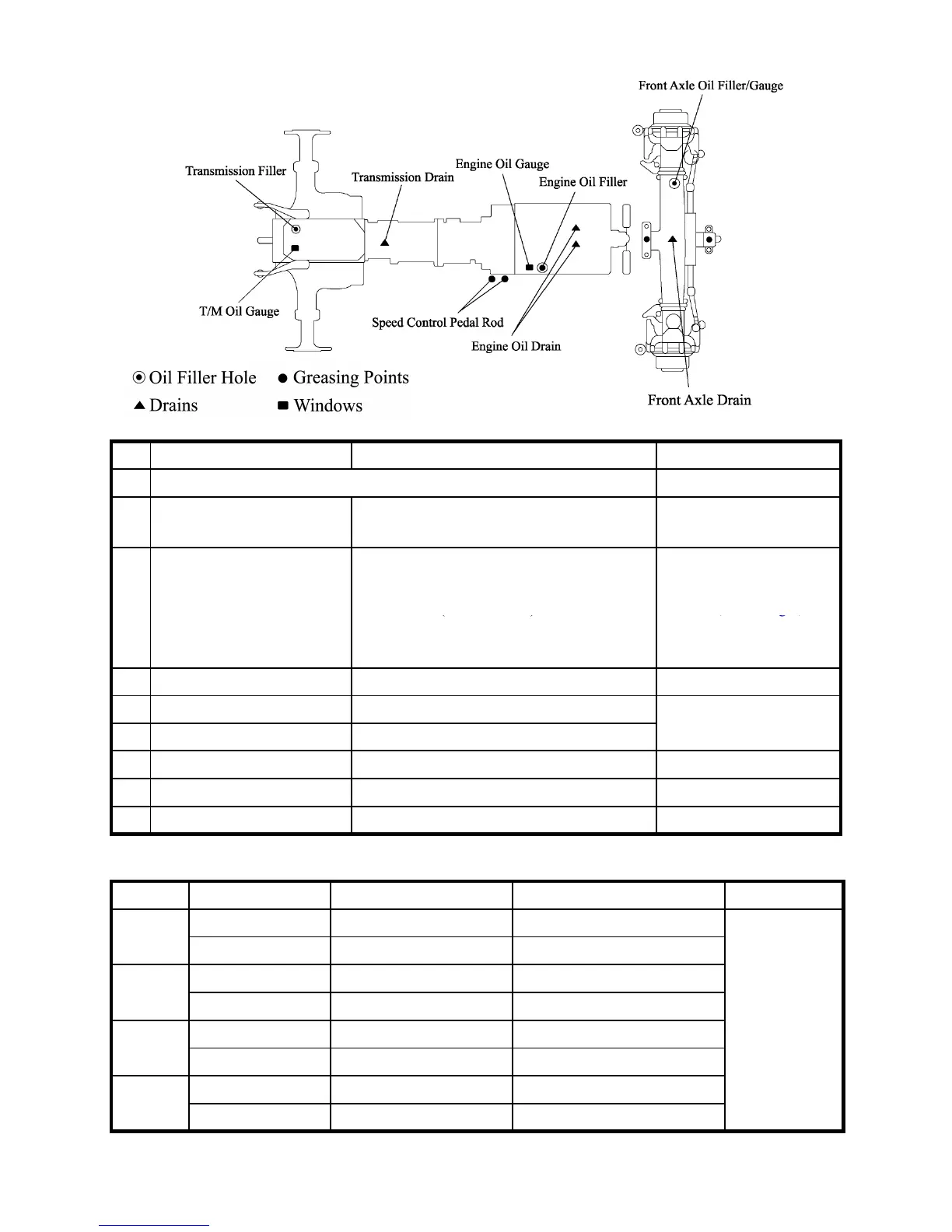

3. FILLING DIAGRAM & CAPACITY TABLE
TABLE 1-7
Tire size and inflation
TABLE 1-8
1-24
0
°
C to 25
°
C(32
°
F to 77
°
F)…
SAE20 or 10W30
Below 0°C(32°F)… SAE 10W or 10W-30
5 ℓ (1.32 US gal)
3 TRANSMISSION CASE See next page *
35ℓ(9.25 US gal)
4 FRONT AXLE Gear oil #80 or #90 (API GL-4 grade)
8.2ℓ(2.166US gal)
5 FINAL DRIVE CASE(B) Gear oil #80 or #90 (API GL-4 grade)
6 Clutch pedal shaft Grease
As required
7 BALL JOINT Grease
As required
8 FUEL TANK Diesel fuel 33ℓ(8.717 US gal)
Tire DIVISION SIZE Air pressure Mpa (PSI) MODEL
R1 (Ag)
Front
7-16, 4PR 0.176 Mpa (25.53 PSI)
T303HST
T353HST
Rear
11.2-24, 8PR 0.235 Mpa (34.08 PSI)
R1 (Ag)
Front 8-16, 4PR 0.176 Mpa (25.53 PSI)
Rear 12.4-24, 6PR 0.176 Mpa (25.53 PSI)
R4 (Ind)
Front 27X10, 50-15, 8PR 0.380 Mpa (55.11 PSI)
Rear
12.5-20 R4, 12PR 0.340 Mpa (49.31 PSI)
R3 (Turf)
Front
27X10, 50LL-15, 6PR 0.220 Mpa (31.91 PSI)
Rear
41X14, 00-20- RL 0.170 Mpa (24.66 PSI)
