SECTION 3.DISASSEMBLY,INSPECTION,AND REASSEMBLY

Separate the rear axle housing from the rear transmission referring to paragraph 6.(1) of SECTION 4.

SEPARATION OF MAJOR BLOCKS in Chapter 2

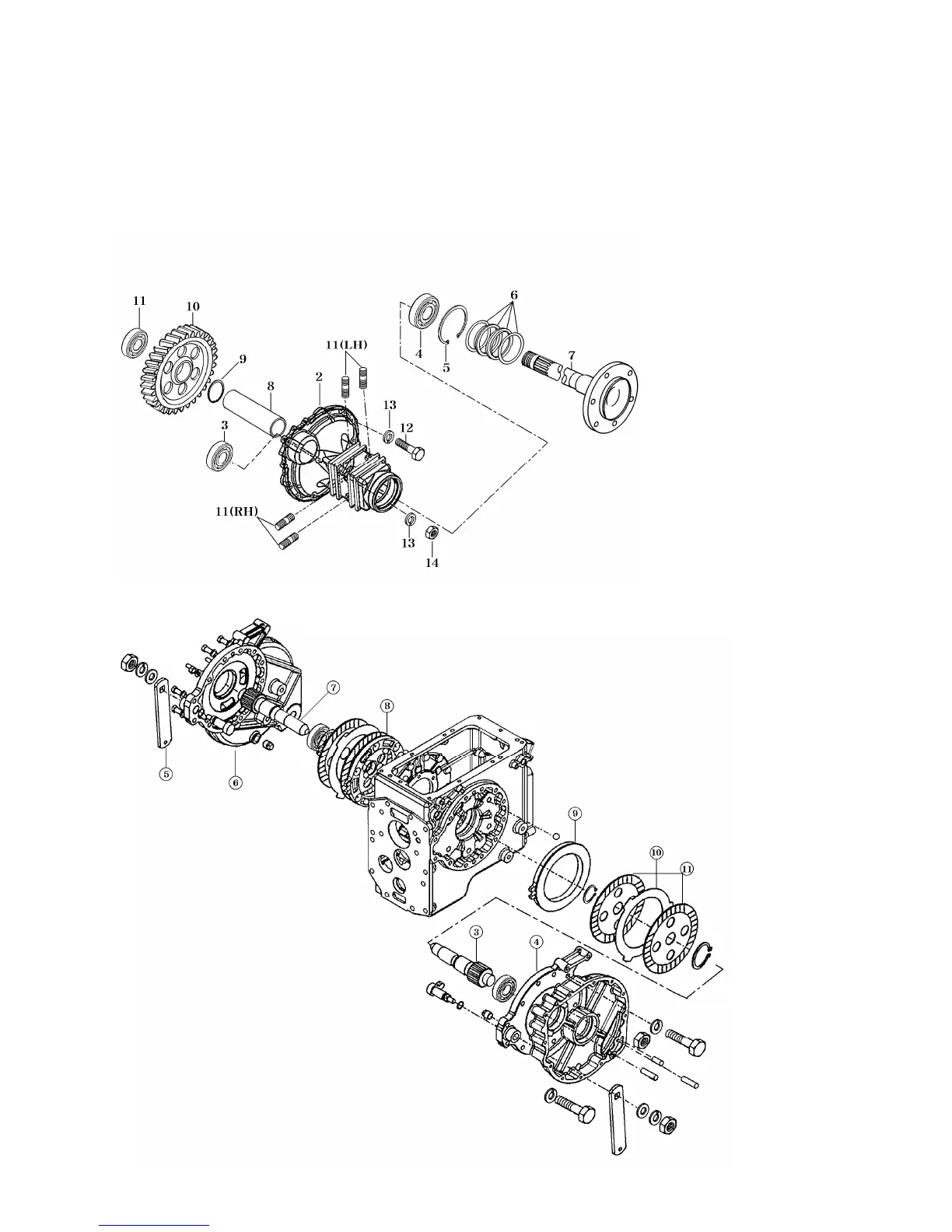

1 REAR AXLE HOUSING AND BRAKE SYSTEM

2.Housing rear axle

3.Bearing,Ball(6307)

4.Bearing,Ball(6211)

5.Snap ring

6.Mechanical seal

7.Wheel shaft

8.Collar(56X65X239)

9.Stop ring

10.Gear,helical/54

11.Bearing Ball

(6209HL1)

12.Bolt

13.Bolt

14.Washer,spring

15.Nut

Fig.7-2

7-3

3. Pinion,wheel 10LH

4. Case Brake LH

5.Arm,brake

6.Case brake

7.Pinion,wheel 10RH

8.Metal brake RH

9.Metal brake LH

10.Plate,separate

11. Plate,brake

Fig.7-3
