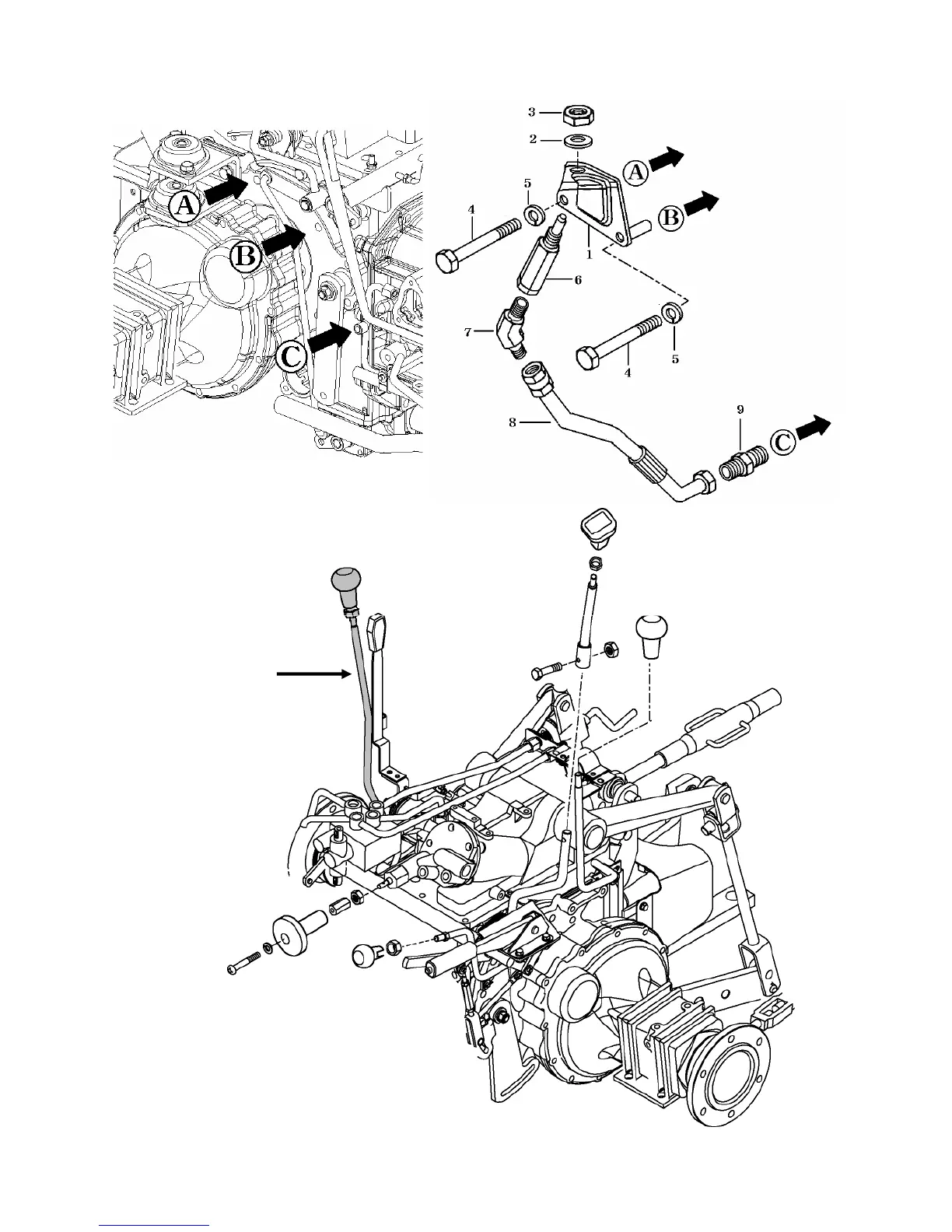

5) MID PTO STOPPER ASSEMBLY
Fig.5-21
1.Bracket comp,actuator
2.Washer spring 3. Nut
4.Bolt 5.Washer spring
6.Actuator comp,MID PTO
7.Elbow 8.Hose ,300MID
PTO 9.Adapter
5-13
MID PTO Lever
