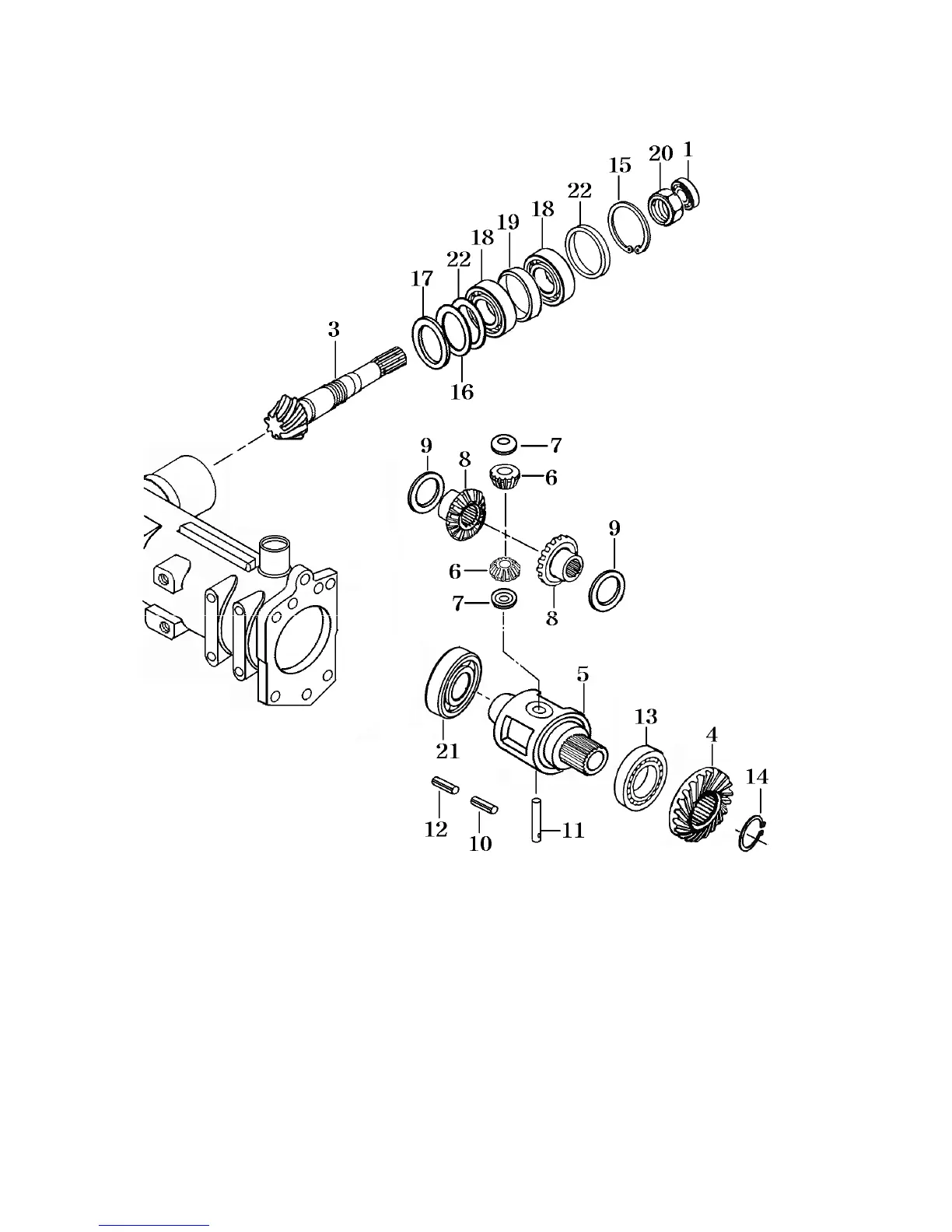

2. FRONT DIFFERENTIAL
1.Oil seal 3.Pinion bevel 8T 4.Gear bevel 35T 5.Case front Diff 6.Pinion Diff (12)
7.Thrust collar 8.Gear diff side (20) 9.Washer thrust 10.Pin spring 11.Shaft diff pinion
12. Pin spring 13.Bearing Ball(6212) 14.Snap ring 15.Snap ring( hole) 16.Shim(A)
17.Shim(B) 18.Bearing taper roller 19.collar 20.Nut(M30) 21. Bearing ball(6211)
22.Shim
Fig.6-10
6-6
