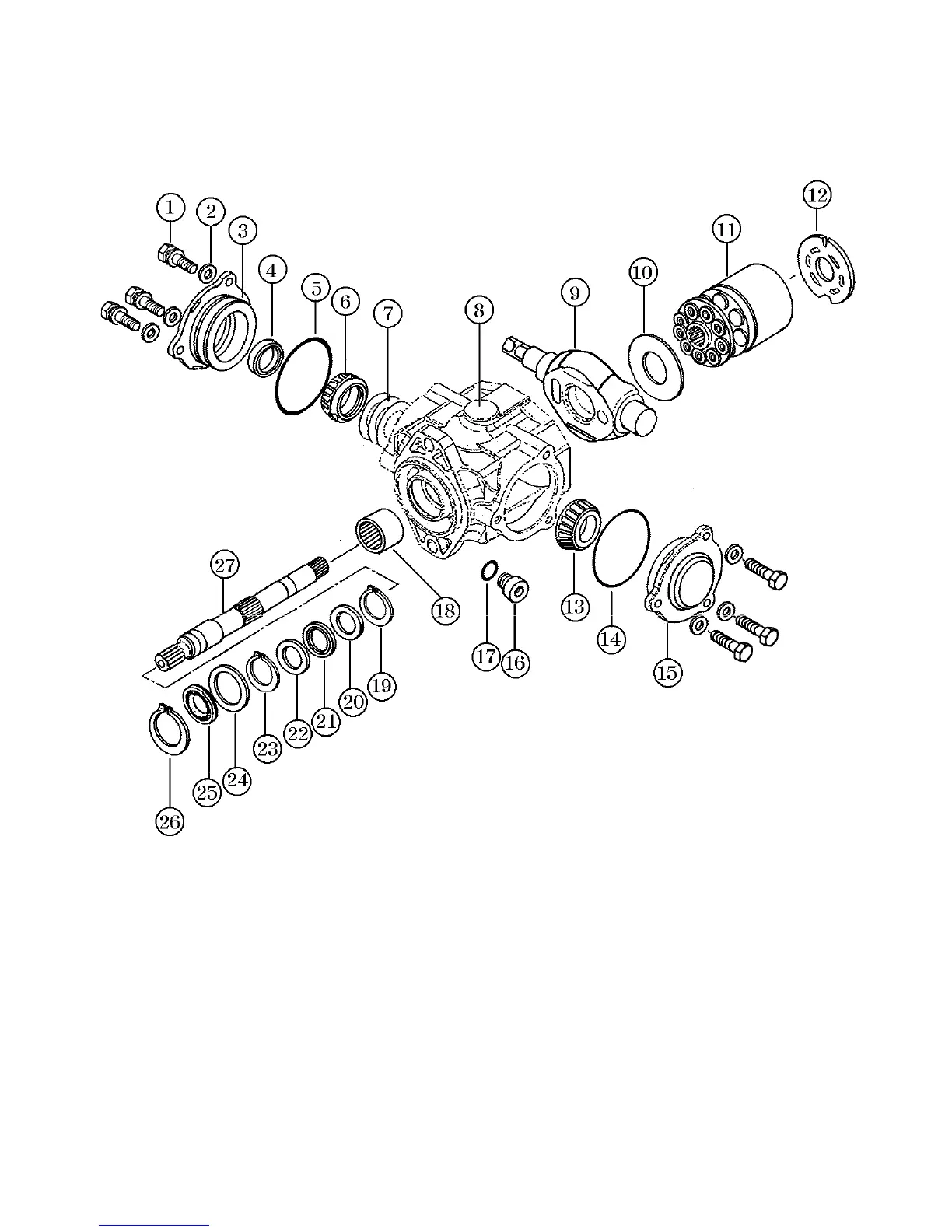

3. Transmission main pump case
1. Cap screws (6) 2. Washers(6) 3. Cover 4. Seal 5. O-ring 6. Bearing
7. Shims 8. Housing 9. Cam plate 10. Cam washer 11. Rotating Assembly
12.Valve plate 13. Bearing(4) 14. O-ring 15. Cover 16. Plug 17. O-ring
18. Bearing 19. Snap ring 20. Thrust Washer 21. Thrust Bearing
22. Thrust Washer 23. Snap ring 24. Seal Washer 25. Seal
26. Snap ring 27. Shaft
4-5
