SECTION 2. SPECIFICA
TIONS
T303HST/T353HST
Wheel alignment
T
oe-in (mm)
2~6
Camber
3
°±
1
°
Caster
3
°±
1
°
Front axle
Pivot metal (F) bore (mm)
Φ
55
Pivot metal (R) bore (mm)
Φ
80
Pivot metal (F) bush (mm)
50X55X20
Pivot metal (R) bush (mm)
75X80X30
Housing (F) D
iameter
(mm)
Φ
50
Housing (R) Diameter
(mm)
Φ
75

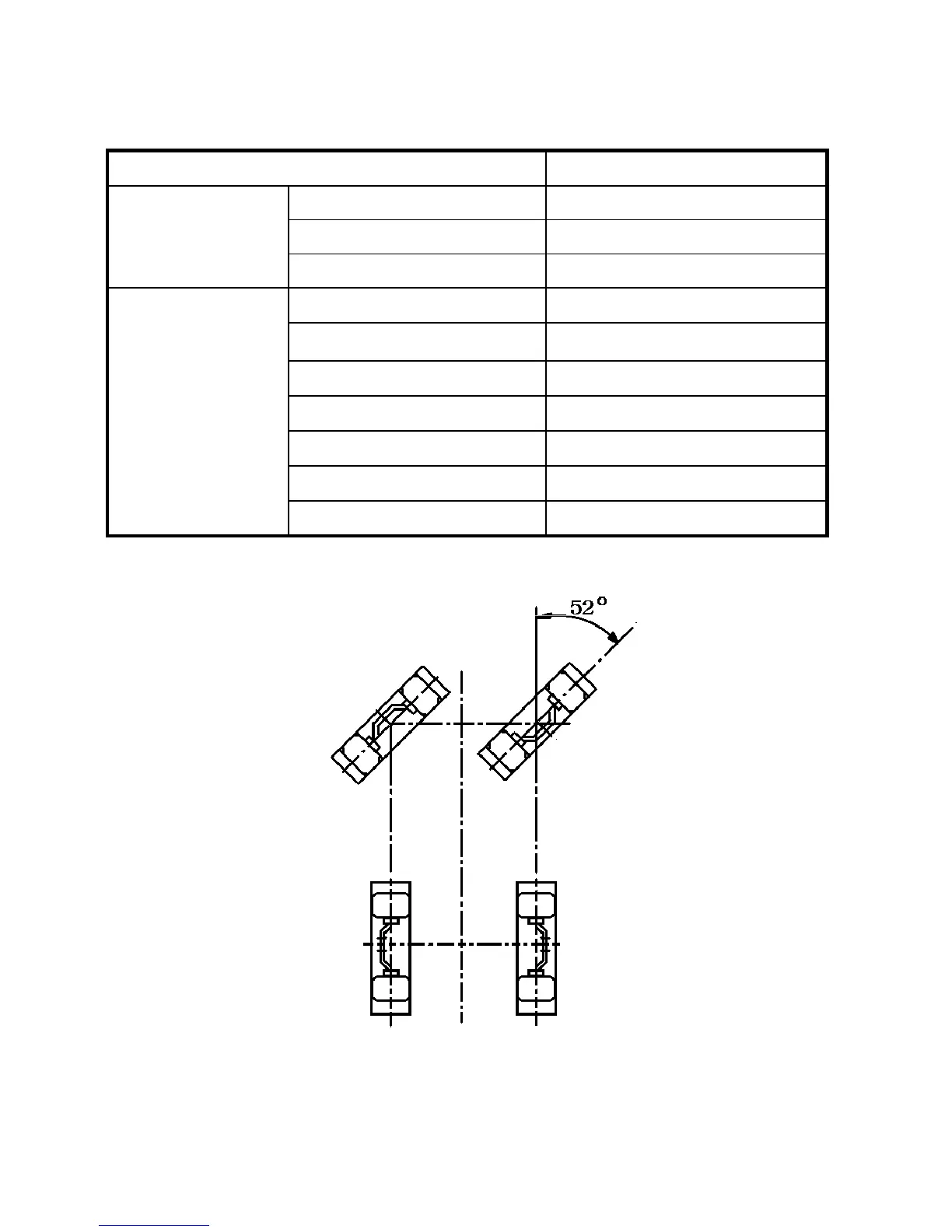

Front wheel steering angles
52˚
6-2
Fig.6-2
141
143
