TYM T303HST User Manual

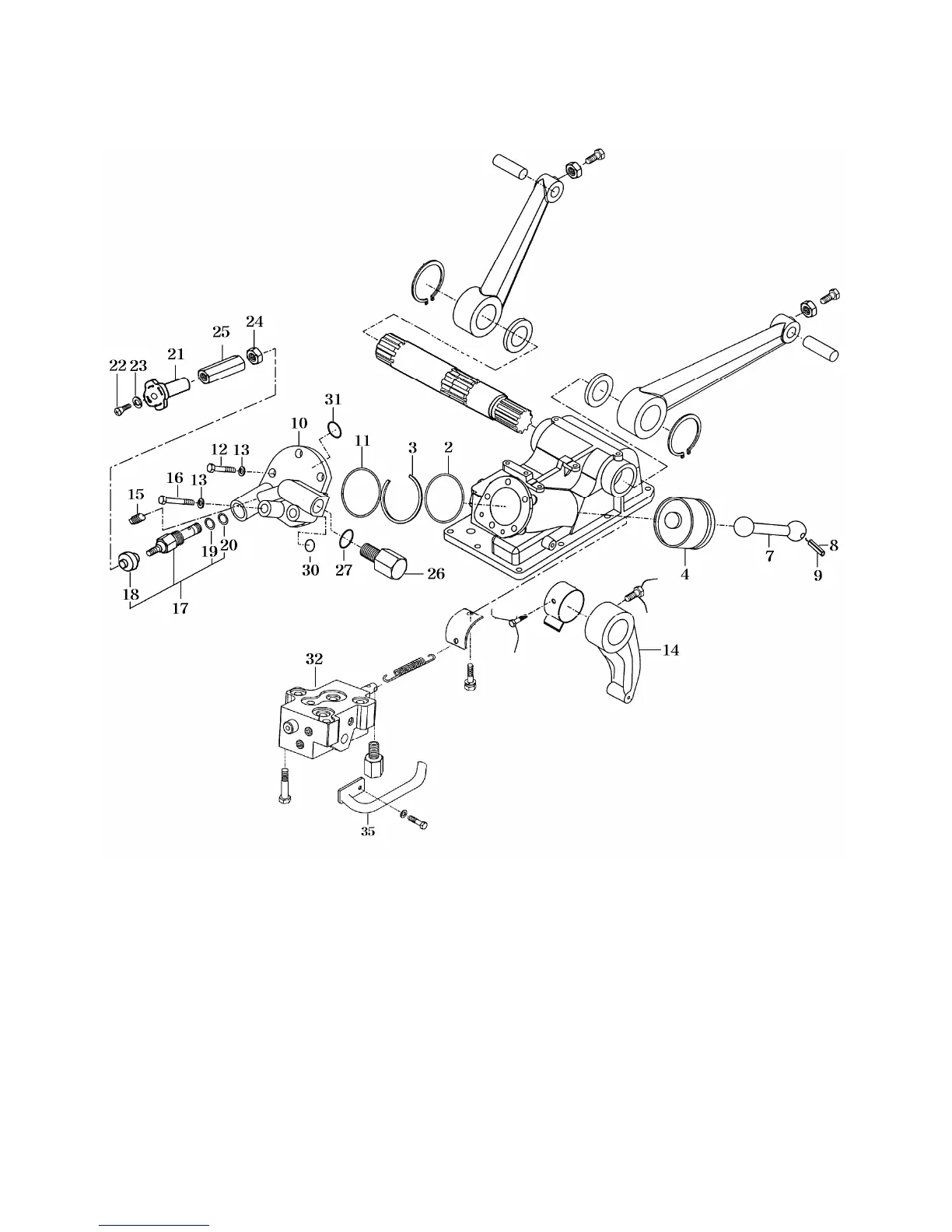

SECTION 3. MAJOR COMPONENT OF THE HYDRAULIC SYSTEM
1.HYDRAULIC SYSTEM
9-3
2.O-ring(PG6) 3.Ring-back up 4.Piston 7.Rod 8. Pin spring 9.Iron wire
10.Cylinder head 11.O-ring 12. Bolt 13.Washer spring 14.Lift crank
15.Plug 16.Bolt 17.Flow con.valve 18.Dust seal
19. O-ring(P) 20.O-ring(P) 21.Knob 22.screw 23.Washer spring
24.Nut 25.Shaft(Slow return) 26.Plug(M22) 27.O-ring(P)
30.O-ring(P) 31.O-ring(P) 32.Main control valve 35. Oil pipe
