TYM T303HST User Manual

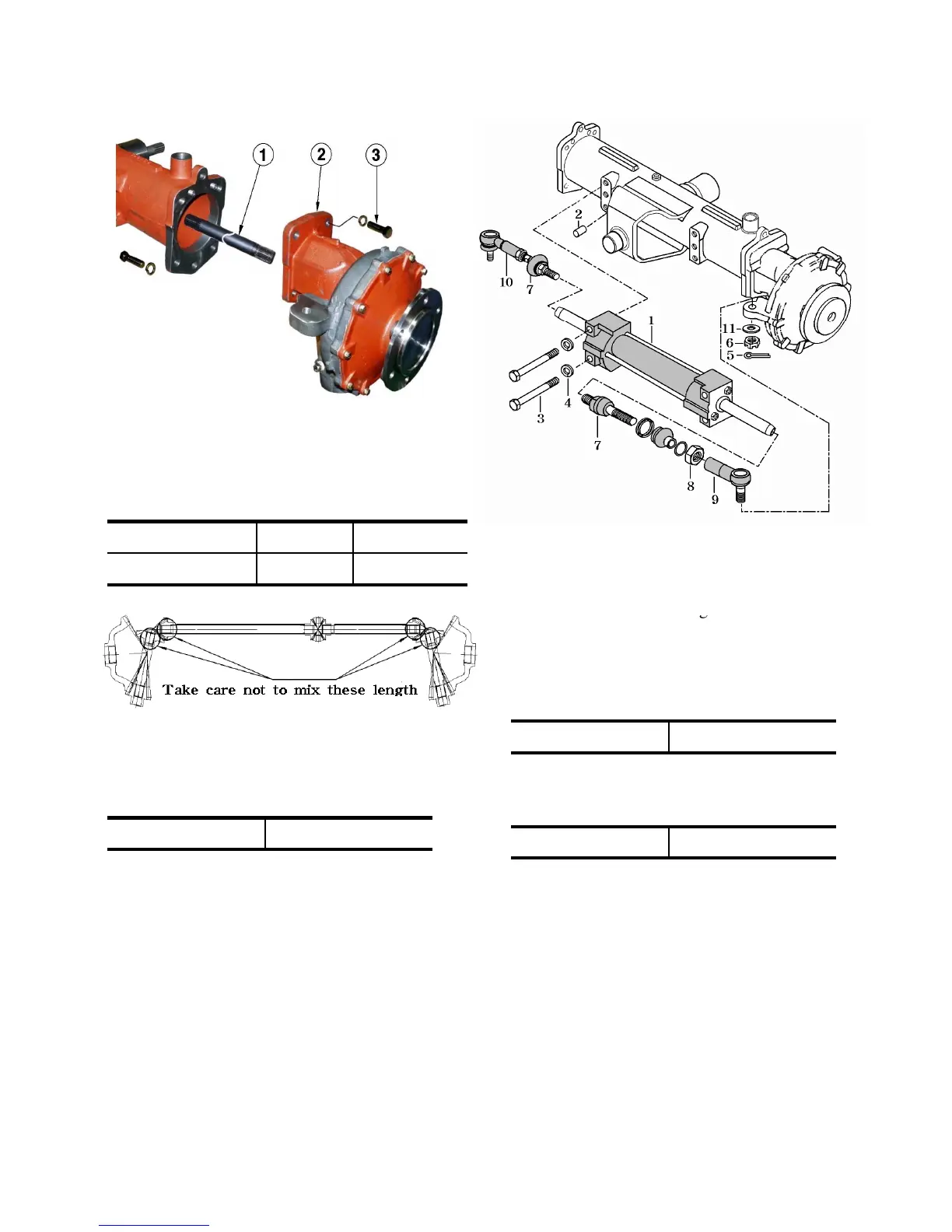

- FINAL DRIVE CASE AND HOUSING
1) When installing the shaft,Be sure that the
gears are not damaged.
2) Be sure the differences between the LH and
RH shaft.
LH RH
Specified length 479mm 295mm
- STEERING CYLINDER
Fig.6-28
Fig.6-30
1) When installing the steering cylinder,Be sure
that the rods are not damaged.
6-14
3) Tighten the bolts to specified torque.
Tightening torque 1300-1500 Kgf.cm
Fig.6-29
that the rods are not damaged.
2) Install the pin(2) before assembling the
cylinder.
3) Apply an adhesive Lock tite and tighten
the bolts to specified torque
Tightening torque 900-1100 Kgf.cm
4) Apply an adhesive lock tite to the ball joint (7)
and tighten the ball joint to specified torque
Tightening torque 1600-1800 Kgf.cm
5) Be sure to bend the split pin (5) after installing
the ball joint
