TYM T303HST User Manual

4. SHIFTERS AND RELATED PARTS.

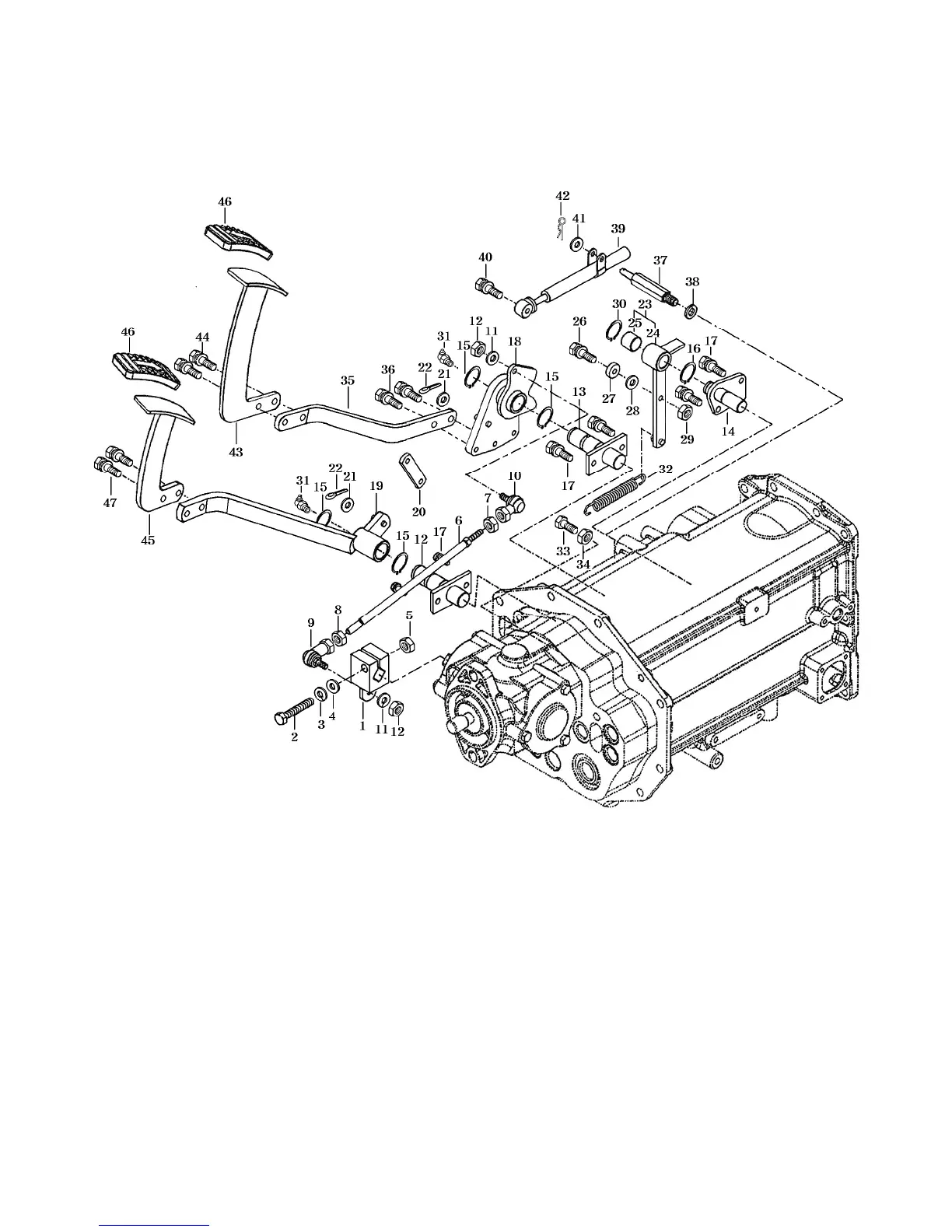

4.1. CONSTRUCTION
(1) Forward and reverse control linkage mechanism.
1.Holder comp
2.Bolt
3.Washer spring
4.Washer plain
5.Nut
6.Rod comp
7.Nut
8.Nut
9.Elbow,LH
10.Elbow,RH
11.Washer spring
12.Nut
13.Pin
14.Pin
15.Snap ring
16.Snap ring
17.bolt
18.Arm comp
19.Arm comp
20.Plate reverse
21.Washer plain
22.pin,split
23.Arm,cam
24.Arm,cam
25.Bush(20X23X20)
26.Bolt
27.Bearing ball
28.Washer plain
29.Nut
30.Snap ring
31.Nipple
32.Spring return
33.Bolt
34.Nut
35.plate,forward
36.Bolt
37.pin,oil damper
38.Washer spring
39.Damper oil
40.Bolt
41.Washer plain
42.Pin,snap
43.pedal comp(forward)
44.Bolt
45.Pedal comp(Reverse)
46.Pad
47.Bolt
5-24
Fig.5-39
