TYM T303HST - Page 126

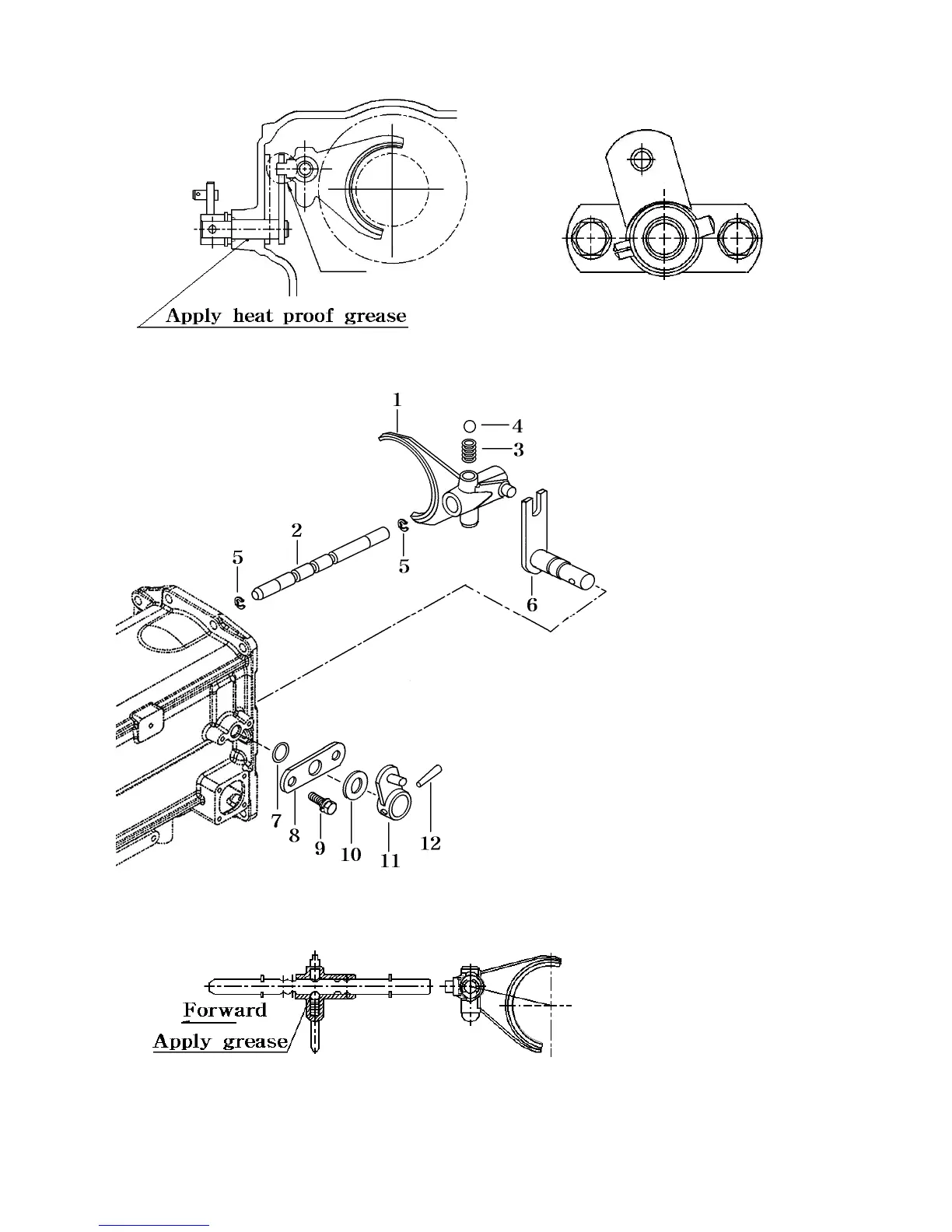

(2) range shifter (Speed range shift)
mechanism
1. Fork,range
2. Stay,range shift
3. Spring,shifter
4. Ball,steel
5. E-ring
6. Hook,range
7. O
-
ring (P)
Fig.5-40
7. O
-
ring (P)
8. Plate
9. Bolt(M8X16)
10. Washer plane
11. Arm,sub range
12. Pin,Taper split
Note:
The bottom two tightening bolts should be coated
with an adhesive on their threads before being
tightened.
5-25
Fig.5-41
Fig.5-42
